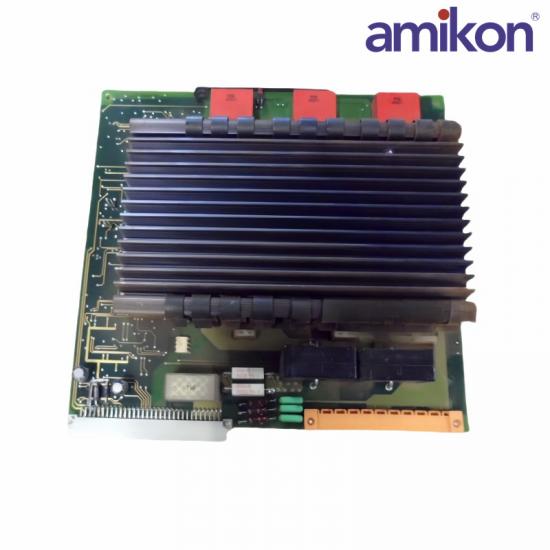

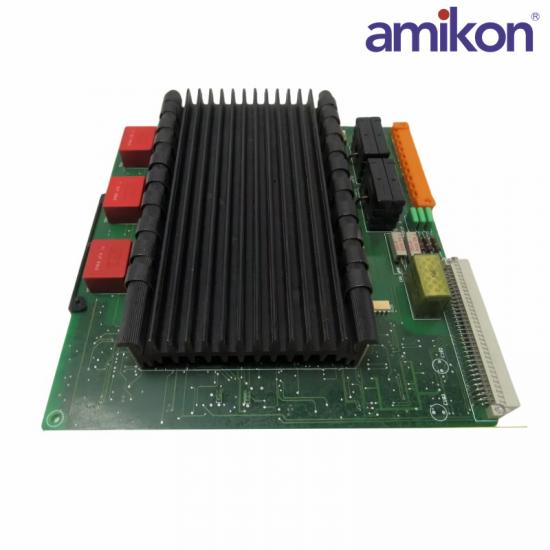

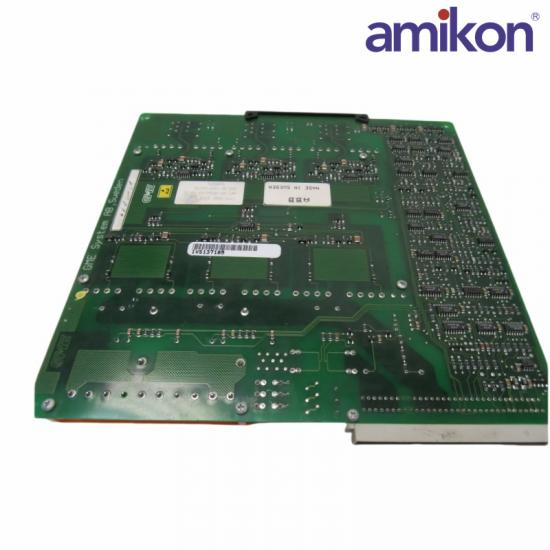

The ABB DSQC236G YB560103-CD Servo Drive Axis Control Board is a high-performance drive designed for precision control applications, ensuring reliable operation and accurate positioning in industrial systems.

Product Type:Servo Drive Axis Control Board

Manufacturer:ABB

Model:DSQC236G

Designation:YB560103-CD/22

Operating Voltage:24 VDC

Output Current:2.5 A

Input Signals:2 Analog Input Channels

Communication Interface:RS-232, DeviceNet

Dimensions (DxWxH):125mm x 100mm x 50mm

Weight:0.5kg

Axis Control:2 Axis

Max. Load:1000 N

Resolution:0.1 μm

Speed Range:0.01 to 1000 mm/s

Temperature Range:-20°C to +50°C

Power Supply:External 24 VDC supply

Introducing the ABB DSQC236G YB560103-CD Servo Drive Axis Control Board, an advanced drive control solution tailored for precision servo applications. This unit is engineered to deliver exceptional performance and reliability, making it an ideal choice for industries requiring high-speed, accurate motion control.

With a power rating of 1.5 kW and a maximum output current of 6.5 A, the DSQC236G YB560103-CD is capable of handling even the most demanding tasks. Its fast response time of 1 ms ensures smooth operation, reducing any potential lag or delay in your production processes.

Operating within a temperature range of -20°C to +60°C, this power unit maintains peak performance regardless of environmental conditions. Equipped with an EtherCAT communication interface and Profinet control protocol, it seamlessly integrates into complex systems, enhancing efficiency and productivity.

Designed with precision and reliability at its core, the DSQC236G YB560103-CD Servo Power Unit is constructed from robust materials to withstand harsh industrial environments. It is lightweight yet sturdy, weighing only 0.35 kg, which facilitates easy installation and maintenance.
