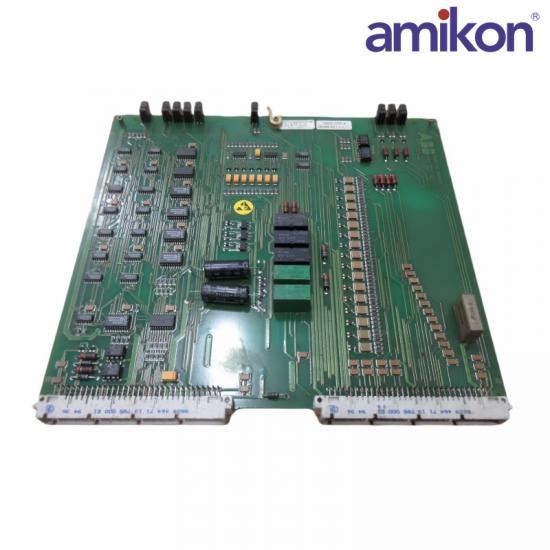

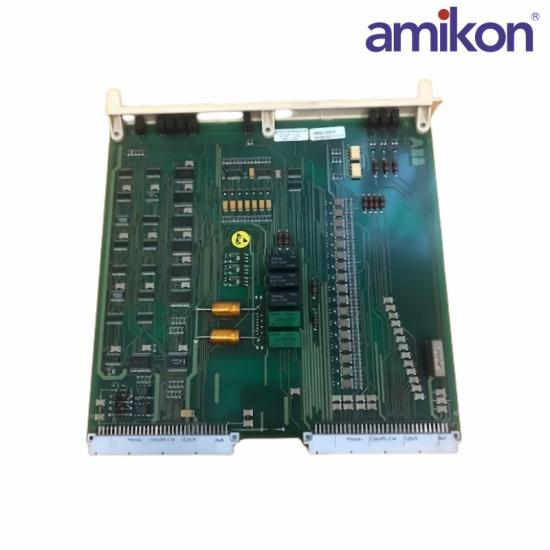

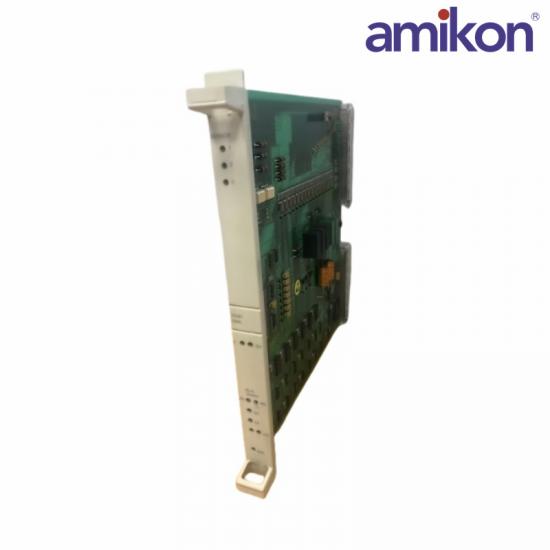

The ABB DSQC256A 3HAB2211-1 is a sensor module board commonly used in ABB robotic control systems, particularly with the S3 controller. This module is designed to transmit and process data from various sensors in the robotic system, helping to monitor sensor signals such as position, pressure, and force.

Model: DSQC256A

Product Code: 3HAB2211-1

Function: Used to read and process signals from sensors, such as position sensors, pressure sensors, and force sensors.

DSQC256A 3HAB2211-1 Primarily used in ABB robotic control systems, like the IRB series robots, to acquire accurate sensory data for real-time control.

Interface: Provides interfaces for connecting with other modules or controllers, enabling data communication and transmission.

Specifications

DSQC256A 3HAB2211-1  Typically +24V DC input.

Signal Type: Supports multiple signal inputs, including analog and digital signals.

Communication Protocol: Compatible with ABB control systems, enabling high-speed data communication.

DSQC256A 3HAB2211-1  Operating temperature range of 0°C to 50°C, with a storage temperature range from -25°C to 85°C.

Protection Rating: Generally meets industrial standards, with features for vibration resistance and interference protection.

Input Voltage: +24V DC nominal

Power Consumption: Dependent on the application, usually within a low power range due to signal processing.

DSQC256A 3HAB2211-1 Typically low but varies based on connected sensor load and environment.
