Description：

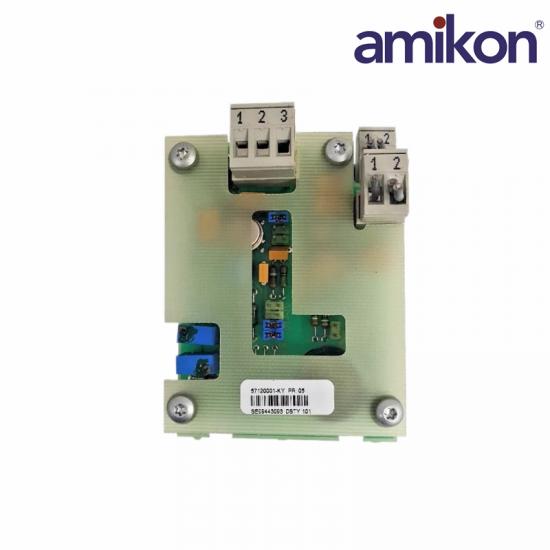

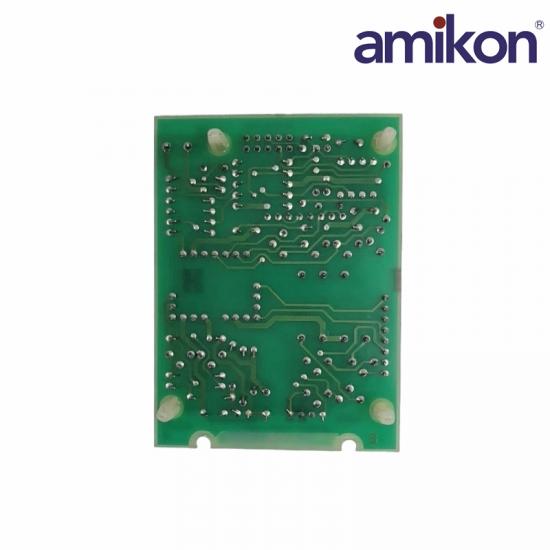

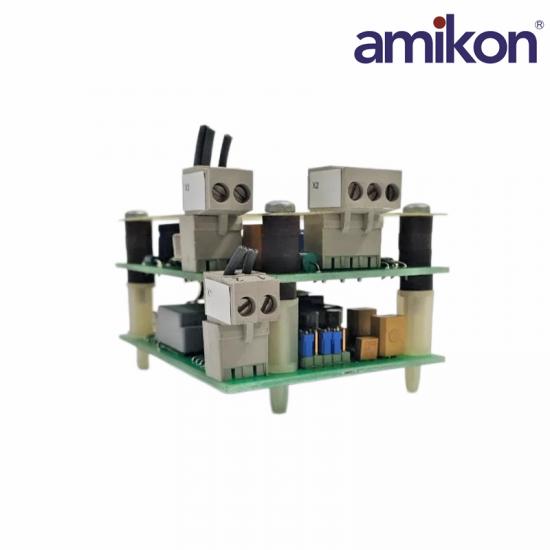

The ABB DSTY101 57120001-KY Analog Isolation Amplifier is a precision signal conditioning module designed to provide reliable isolation and transmission of analog signals in industrial and control systems. It supports a wide range of standard process signals, including 0–20 mA and 4–20 mA current inputs, as well as 0–10 V and ±10 V voltage inputs, ensuring compatibility with various sensors, transmitters, and control devices. The module delivers accurate signal conversion with a linearity accuracy of 0.30%, helping maintain stable and precise process measurements.

Specification：

Frequently asked questions

Q1: What is the ABB DSTY101 57120001-KY Analog Isolation Amplifier used for?

A1: The ABB DSTY101 57120001-KY is an analog isolation amplifier used to electrically isolate and transmit analog signals between field devices and control systems. It improves signal integrity, reduces interference, and protects connected equipment.

Q2: What operating supply voltage does the DSTY101 57120001-KY amplifier require?

A2: The DSTY101 57120001-KY amplifier operates with a 24 VDC supply voltage, which is standard for industrial systems.

Q3: What analog current input signals are supported?

A3: The DSTY101 57120001-KY module supports typical industrial current signals including 0–20 mA and 4–20 mA.

Q4: What is the DSTY101 57120001-KY isolation withstand capacity?

A4: The DSTY101 provides an isolation withstand capacity of 3 kVA, offering strong electrical isolation between input, output, and power circuits.

Q5: What is the DSTY101 57120001-KY storage temperature range?

A5: The DSTY101 57120001-KY storage temperature range is -25°C to +70°C (-13°F to +158°F).

Product Applications

Power and Smart Grid: Used for current/voltage monitoring in substations and power transmission and distribution systems, isolating high-voltage side signals, and protecting low-voltage control microcomputers and PLCs.

Metallurgy and Metal Rolling: Used for high-linearity isolation and transmission of analog signals from high-current sensors in large rolling mill drives and high-power high-voltage frequency converters.

Petrochemical and Pharmaceutical Industries: Used for automated process control (DCS systems) in explosion-proof and high-interference environments to prevent damage to central control room equipment from field ground currents and electromagnetic interference.

Paper and Food Industries: Used for signal conditioning of multi-motor synchronous drive control lines, flow and pressure transmitters.
