Description：

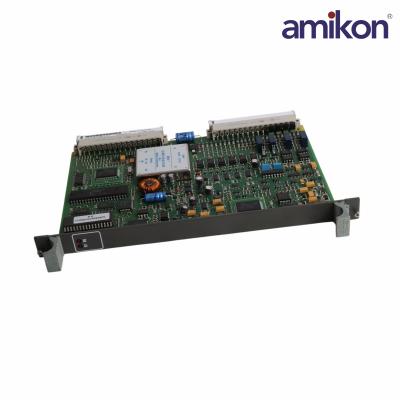

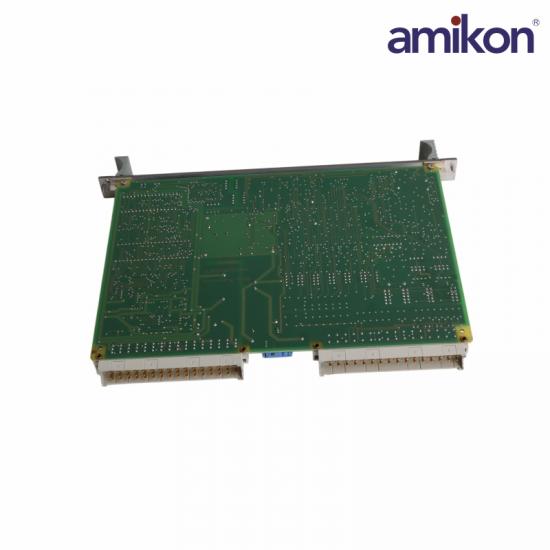

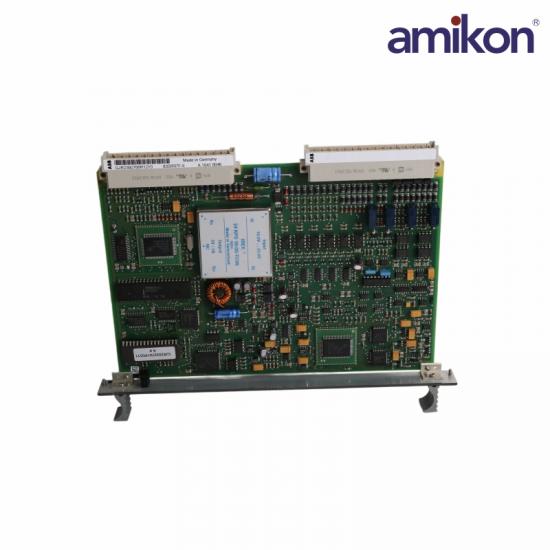

ABB GJR2392700R1210 (83SR07F-E) is a high-performance analog control module specifically designed for the PROCONTROL P14 distributed control system. It integrates advanced microprocessor technology and is mainly used in industrial sites such as power and petrochemical industries, responsible for driving and regulating various electric, hydraulic or pneumatic actuators. This module supports dual-loop independent control and has extremely high real-time response capability (with cycle times ranging from 50 to 100 ms), capable of precisely handling complex process variables such as pressure, temperature and flow. With its built-in self-diagnosis function and robust industrial-grade standards, 83SR07F-E ensures the stability and safety of closed-loop control systems in harsh environments, and is the core component for achieving precise regulation in factory .

Specification：

Frequently asked questions

Q1: What is the 83SR07F-E (GJR2392700R1210)?

A1: The 83SR07F-E is a circuit board used in ABB industrial systems for control, signal processing, and system integration tasks.

Q2: What is the GJR2392700R1210 83SR07F-E operating voltage?

A2: It operates on 24 V DC.

Q3: What is the GJR2392700R1210 83SR07F-E power consumption?

A3: The GJR2392700R1210 83SR07F-E board consumes approximately 2.1 W to 5 W during operation.

Q4: What is the GJR2392700R1210 83SR07F-E heat dissipation power?

A4: The GJR2392700R1210 83SR07F-E heat dissipation ranges from 5 W to 8.4 W, depending on load and operating conditions.

Q5: What are the GJR2392700R1210 83SR07F-E main functions of this circuit board?

A5: It provides control , signal processing, and interface functions within systems.

Product Applications

Electric power industry: This is the main application scenario of this module, often used in the automated control systems (DCS) of power plants, responsible for turbine control, boiler feedwater regulation, and process control of various auxiliary systems.

Petroleum and chemical industry: It is used to monitor and regulate key process variables such as pressure, flow, and temperature, ensuring the stable operation of chemical production lines.

Papermaking and metallurgy: In the automated renovation and maintenance of large-scale paper machines or smelting equipment, it serves as the core for processing complex analog signals.

Water treatment and general manufacturing: It is used for precise control of large water pumping stations, air compressor units, and other equipment.

Main functional features

Support for multiple types of actuators: Can directly control electric-hydraulic actuators, electro-pneumatic actuators, and motor-driven devices.

Dual-channel output: Equipped with two continuous analog output channels, suitable for single-variable or dual-variable stored program control.

Flexible control modes: Supports single-variable control and higher-level cascading control (Master Control), and provides various signal conditioning function blocks.

High real-time performance: In analog control mode, there is a fixed cycle time. When controlling a single actuator, it is 100ms; when two are controlled, it is 200ms. The maximum can be preset to 50ms.
