Description：

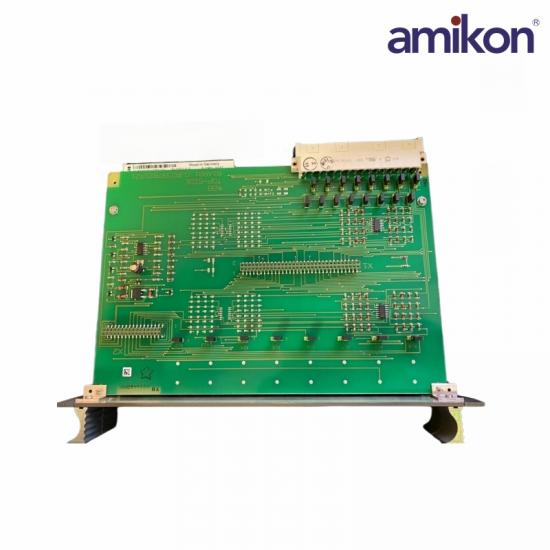

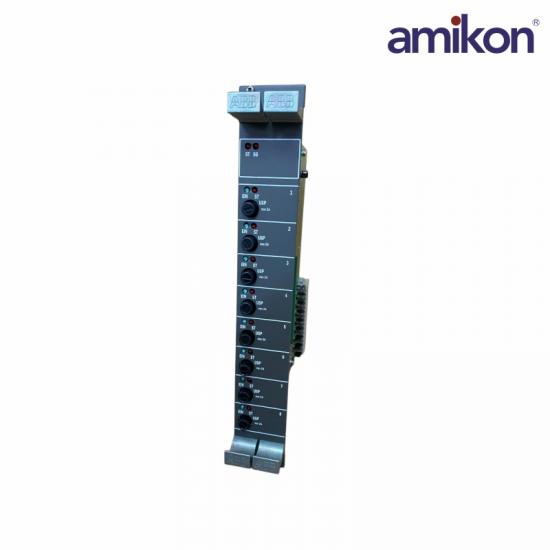

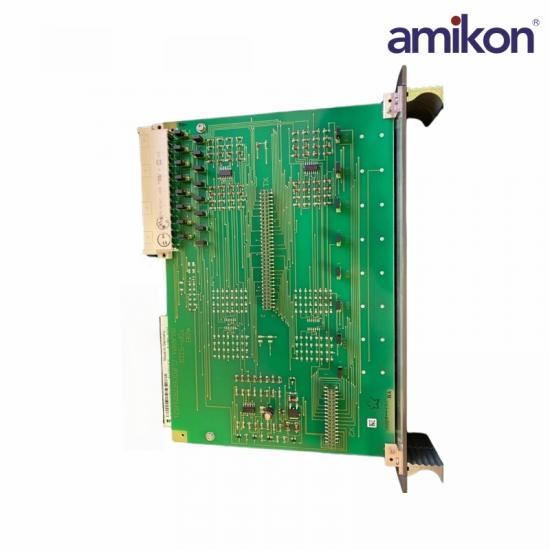

The ABB 81AR01A-E (GJR2397800R0100) is a high-reliability relay output module belonging to the Procontrol P13 series, specifically engineered for demanding industrial environments. It serves as a robust execution interface for controlling up to eight independent actuators, such as valves, contactors, motors, and other field devices.

Specification：

Frequently asked questions

Q1: What is the 81AR01A-E (GJR2397800R0100)?

A1: The 81AR01A-E is a relay output module used in ABB industrial  systems to control external devices through relay switching.

Q2: How many output channels does it have?

A2: The GJR2397800R0100 81AR01A-E module provides 16 relay output channels.

Q3: What is the signal level?

A3: It operates with a 24 V DC signal level.

Q4: What is the GJR2397800R0100 81AR01A-E current rating per channel?

A4: Each channel supports up to 2 A of current.

Q5: What is the GJR2397800R0100 81AR01A-E operating temperature range?

A5: It is designed to operate in −40°C to +70°C, suitable for harsh industrial environments.

Product Applications

Electricity and Energy: Used for overcurrent protection in distribution systems, short-circuit monitoring, and control of substations.

Water Treatment and Infrastructure: Applied to pump stations in water treatment plants, tunnel ventilation systems, and monitoring of urban heating networks.

Metallurgy and Heavy Industry: Responsible for the logic control of automated production lines in steel mills and aluminum plants during metal processing.

Mechanical Manufacturing and Logistics: For the output of execution instructions in food and beverage production lines and material handling equipment (such as automatic conveyors).

Petrochemicals: As part of the distributed control system (DCS) in continuous production processes, to monitor key process parameters.

Core Functions and Applications

Function Positioning: This module is mainly used for monitoring and controlling industrial processes. When serving as an output module, it contains multiple relay units (typically 8 units), which are used to drive actuators, circuit breakers, or other industrial protection equipment.

Signal Processing: In the analog configuration, it can process analog signals from temperature, pressure, or flow sensors, enabling precise monitoring of complex production processes.

Environmental Adaptability: Designed robustly, it has strong resistance to electromagnetic interference (EMI), vibration resistance, and extreme temperature tolerance, making it suitable for long-term stable operation in harsh factory environments (such as chemical plants, metallurgical plants).

For additional discounts, please contact our five-star sales manager Lisa Lin.
