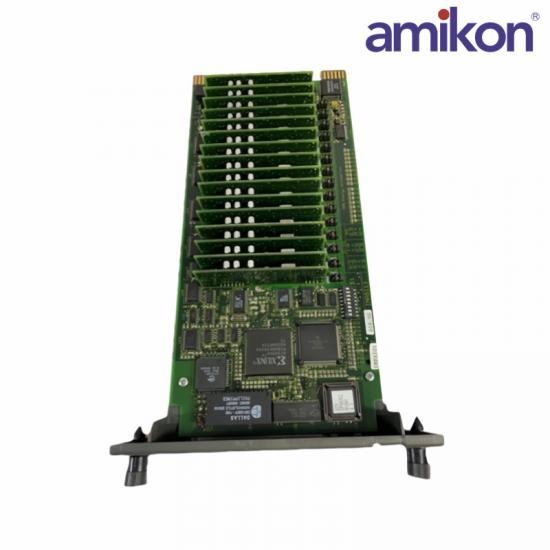

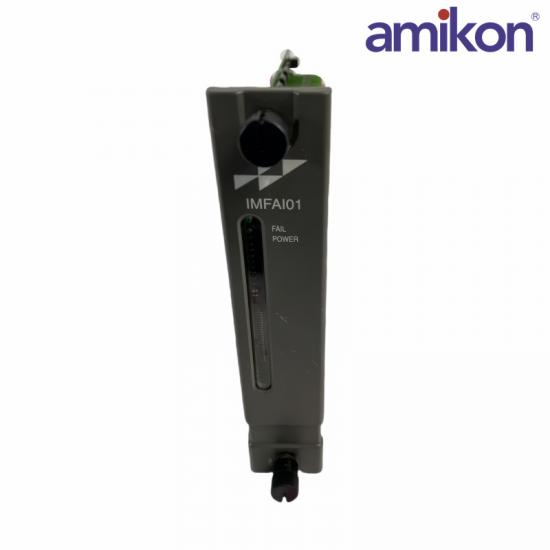

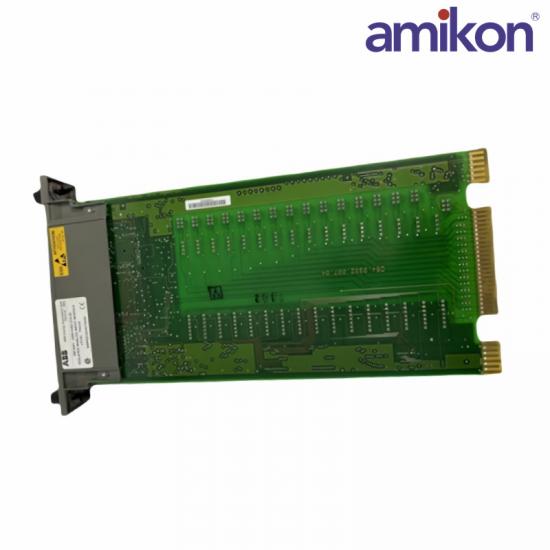

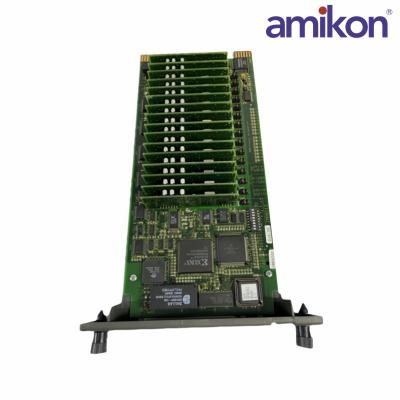

The ABB IMFAI01 is an Analog Input Module designed for industrial control systems. It is typically used for interfacing sensors, transmitters, or other analog devices with a PLC or other control systems, providing accurate analog data that can be processed or monitored by the control system.

Input Types:4-20 mA, 0-10 V, 0-20 mA analog input signals

Number of Channels:8 or 16 channels

Resolution:12-bit or 16-bit resolution, ensuring high accuracy in signal acquisition

Typically 10 kΩ or higher for voltage inputs

Signal Conditioning:

Built-in signal filtering, scaling, and amplification capabilities to optimize input signals

Accuracy:±0.1%

Power Supply:24 V DC

Operating Temperature :-20°C to +60°C

Storage Temperature:-40°C to +85°C

Dimensions:100mm x 120mm x 40mm

Weight: 0.5 - 1 kg

The IMFAI01 module is a crucial part of ABB's offerings, providing reliable and high-performance analog signal acquisition for various industrial applications, such as process control, manufacturing, and machine.

The IMFAI01 module often includes signal conditioning capabilities, such as filtering, amplification, and scaling, which help improve the quality of the input signals and ensure that they are suitable for accurate processing by the control system.

The IMFAI01 module provides isolation between the field devices and the control system, protecting the sensitive control electronics from electrical noise, spikes, and potential faults in the field devices.

The IMFAI01 module is flexible in its configuration, with configurable input ranges and scaling options, allowing it to work with various types of analog devices and sensors.
