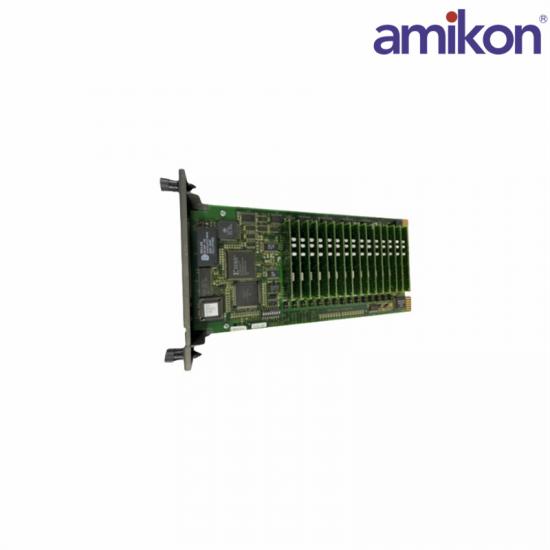

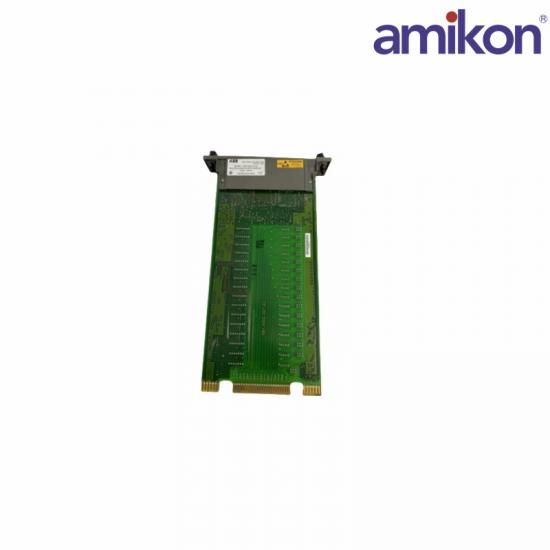

The ABB IMFAI02 Analog Input Module is part of ABB's control systems, designed to interface with and process analog signals from field devices. This module is typically used in industrial control systems to acquire analog signals such as temperature, pressure, or flow measurements and convert them into digital signals that can be processed by the control system.

Description:

Model: IMFAI02

Type: Analog Input Module

Brand: ABB

Series: Part of ABB's control system portfolio, often used in the AC500 or Freelance systems.

Key Features:

Function: Converts analog signals from field devices into digital data for processing by the control system. This enables real-time monitoring and control based on analog measurements.

Signal Types: Accepts various types of analog signals, such as 4-20 mA, 0-10 V, or 0-20 mA, depending on the specific configuration and application.

Resolution: Provides high-resolution data acquisition to ensure accurate representation of the analog signals.

Isolation: Typically includes electrical isolation between input channels and the module to protect against electrical interference and ensure signal integrity.

Input Channels: The module generally features multiple input channels (e.g., 4 or 8 channels), allowing it to handle multiple analog inputs simultaneously.

Current Inputs: Typically supports ranges such as 4-20 mA.

Voltage Inputs: Supports ranges such as 0-10 V, 0-5 V, or 1-5 V.

Accuracy: Provides high accuracy for precise measurement, typically in the range of ±0.1% to ±0.5% of full scale, depending on the module and configuration.

Resolution: Offers high resolution, often 16-bit or higher, to ensure detailed and accurate data acquisition.

Temperature Range: Operates within a specified temperature range suitable for industrial environments, typically -20°C to +60°C (-4°F to +140°F). Check the datasheet for exact limits.
