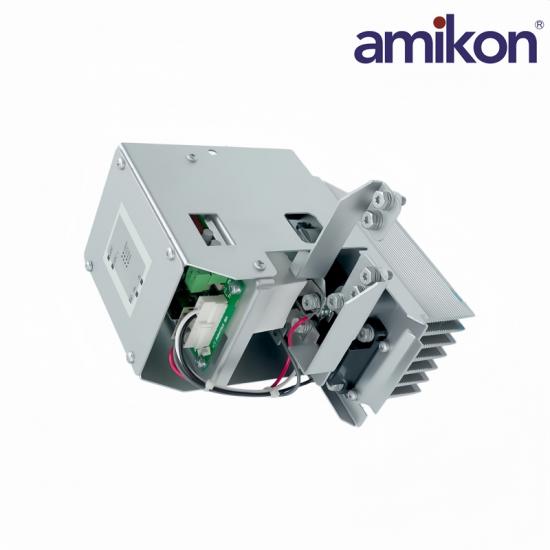

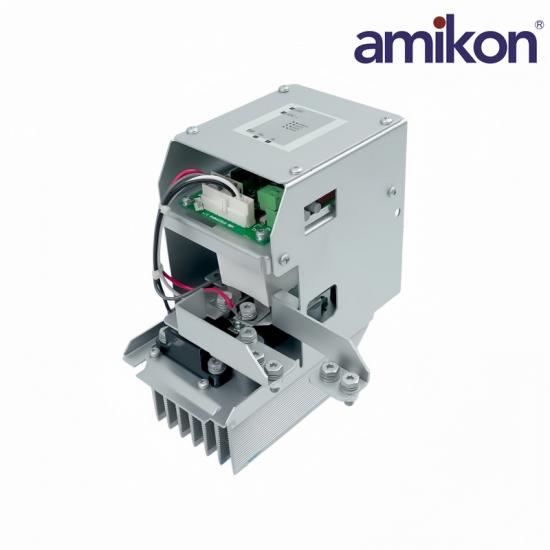

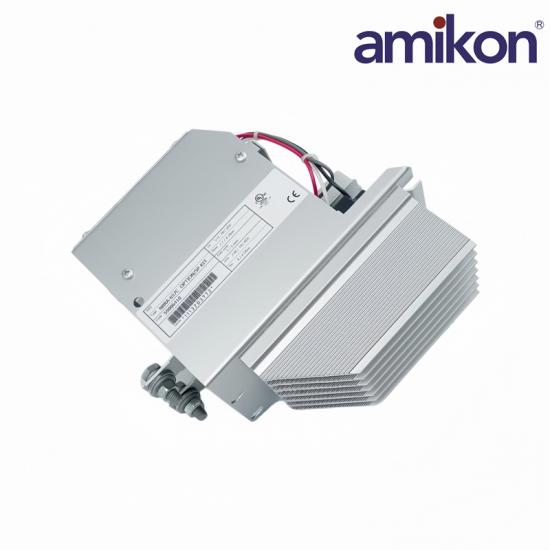

ABB NBRA-657C 59006410 NBRA-657C Braking Chopper

NBRA-657C 59006410
NBRA-657C 59006410
NBRA-657C 59006410

ABB NBRA-657C 59006410 NBRA-657C Braking Chopper

✉  INQUIRE NOW

ABB · ABB DRIVE OPTIONS

NBRA-657C 59006410

NBRA-657C Braking Chopper

MANUFACTURERABB
MODELNBRA-657C 59006410
PART NUMBERNBRA-657C 59006410
PRODUCT TYPEDrive Braking Chopper
SYSTEM FAMILYABB Drive Options
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    NBRA-657C 59006410

  • Product Origin:

    Sweden

  • Brand/Manufature:

    ABB

  • Product Origin:

    Sweden

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

ABB ABB Drive Options

NBRA-657C 59006410

Price and Availability Inquiry

The ABB NBRA-657C 59006410 is an ABB NBRA-657C braking chopper, product ID 59006410, for compatible ABB drive configurations that require controlled dissipation of regenerative braking energy for industrial automation maintenance, integration and replacement applications.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model NBRA-657C 59006410 and required quantity in your inquiry.

ABB NBRA-657C 59006410

Technical Specifications

Official ABB ACS510 resistor-braking data for the NBRA-657C, including drive types, resistor selections, resistance, energy and power ratings.

01Product IdentityOfficial ABB identification
ManufacturerABB
Article NumberNBRA-657C 59006410
Product DesignationNBRA-657C Braking Chopper
Product FamilyABB Drive Options
02Resistor Braking DataOfficial ACS510 380–480 V configuration
COMPATIBLE DRIVE TYPESACS510-01-180A-4 / -195A-4
SUPPLY CLASS3-phase 380 to 480 V AC
BRAKE CHOPPERNBRA-657C
RESISTOR INSTALLATIONExternal to the drive module
03ACS510-01-180A-4SAFUR125F500 resistor data
MINIMUM RESISTANCE4.0 Ω
SHORT-PULSE ENERGY3600 kJ every 400 s
CONTINUOUS POWER9 kW
PEAK BRAKING POWER135 kW
04ACS510-01-195A-4SAFUR200F500 resistor data
MINIMUM RESISTANCE2.7 Ω
SHORT-PULSE ENERGY5400 kJ every 400 s
CONTINUOUS POWER13.5 kW
PEAK BRAKING POWER165 kW

ABB NBRA-657C 59006410 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for NBRA-657C 59006410.

01

Which drive configurations use the NBRA-657C?

ABB hardware data lists NBRA-657C with ACS510-01-180A-4 using SAFUR125F500 and ACS510-01-195A-4 using SAFUR200F500 in the 380–480 V class.

02

How does the braking chopper protect the drive?

It switches regenerative DC-link energy into a correctly selected external braking resistor to limit overvoltage during deceleration.

03

Which product identifiers should be checked?

Confirm type designation NBRA-657C, current product ID 59006410 and any previous identifier 58930792 shown in the installed documentation.

04

How should the braking resistor be selected?

For the listed ACS510 configurations, the official resistor selections are 4.0 Ω / 3600 kJ / 9 kW and 2.7 Ω / 5400 kJ / 13.5 kW; verify the drive nameplate and braking duty before installation.

05

Which checks are required before installation?

Isolate and discharge the DC link, verify zero voltage, confirm voltage-class settings, inspect bus and resistor terminals, and follow the drive-specific cabinet instructions.

06

Can a similar NBRA model be substituted directly?

Do not substitute by appearance alone; NBRA variants differ by drive size and electrical rating, so the drive type and braking calculation must be verified.

07

Which details should accompany a quotation request?

Send NBRA-657C, product ID 59006410, the complete drive type code, mains voltage, motor data, braking duty, resistor data and label photos.
