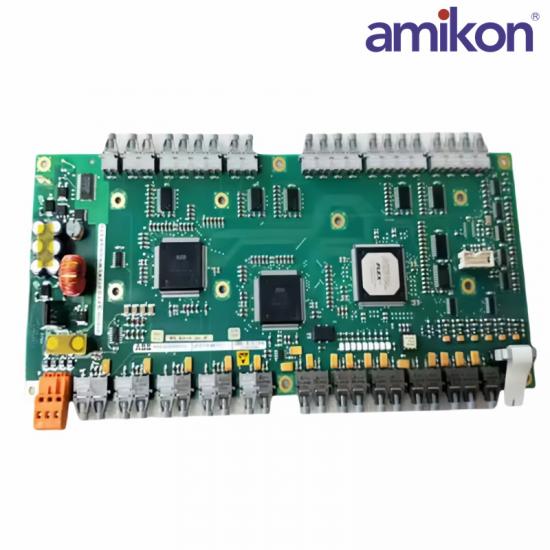

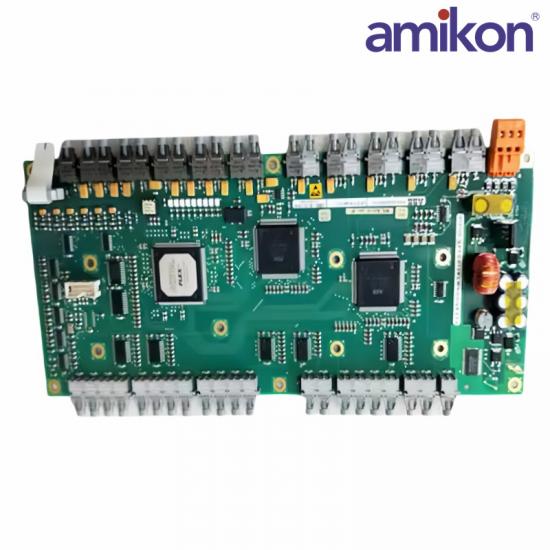

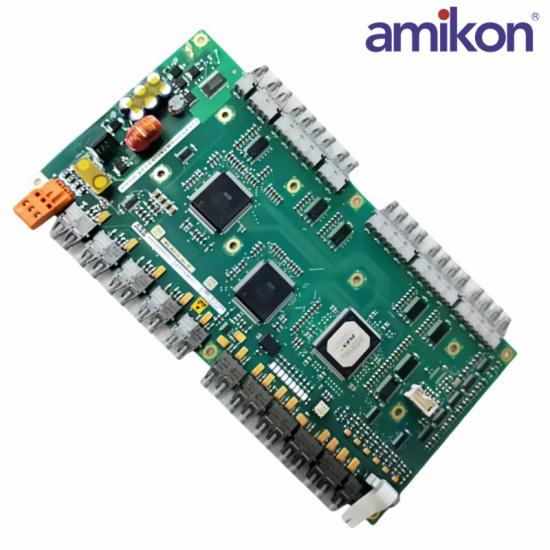

The ABB NINT72C is a control/interface board designed for use with ABB drives in industrial control systems. This type of board is part of ABB's range of drive system accessories, providing necessary control, interface, and communication functionality between the drive unit and other components in the system, such as sensors, controllers, and HMIs (Human-Machine Interfaces).

The NINT72C board is typically used in ABB's AC and DC drives systems to provide control and interfacing capabilities. These boards may be used for a range of functions, including but not limited to signal processing, communication with external systems, and providing I/O connections for external devices like sensors or actuators.

The NINT72C is part of a modular system, which can be integrated with various ABB drives. It may be interchangeable with other interface/control boards, depending on the specific requirements of the drive system.

The NINT72C  board supports industrial communication protocols, enabling communication between the drive and higher-level control systems.

The NINT72C  board processes signals from the drive's control inputs and outputs. It may include components like analog-to-digital converters (ADCs) and digital I/O ports for interfacing with sensors, switches, or other devices.

Includes features for fault detection, error diagnostics, and status monitoring to support predictive maintenance and troubleshooting of the drive system.

The NINT72C board is compatible with specific ABB drive models and integrates seamlessly into the drive's architecture. It helps in controlling and monitoring the performance of the drive while offering a flexible interface with external control systems.

In certain configurations, the NINT72C board can be customized or expanded with additional I/O modules, or can work with other boards to enable more complex control applications.

Environmental: -10°C to +60°C (14°F to 140°F).

Input Voltage:24V DC Digital Inputs

Typically 6 to 12 digital inputs.

Digital Outputs:4 to 8 digital outputs.

Relay Output Voltage: 30V DC

Analog Inputs: Up to 2 or 4 analog inputs

Input range: 0-10V or 4-20mA (typical for control systems).

Analog Outputs: 1 to 2 analog outputs.

Output range: 0-10V or 4-20mA
