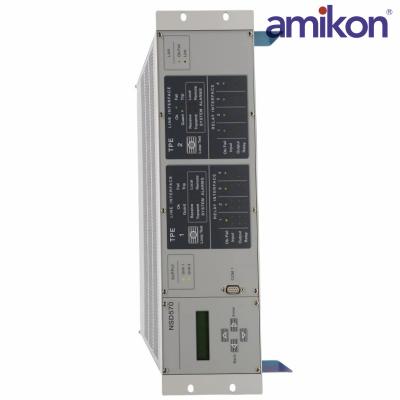

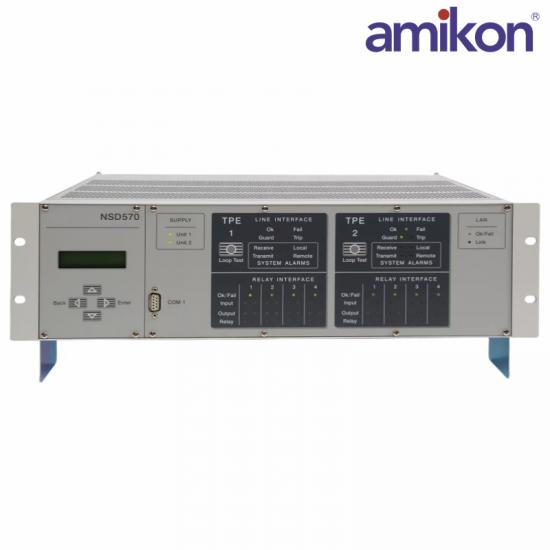

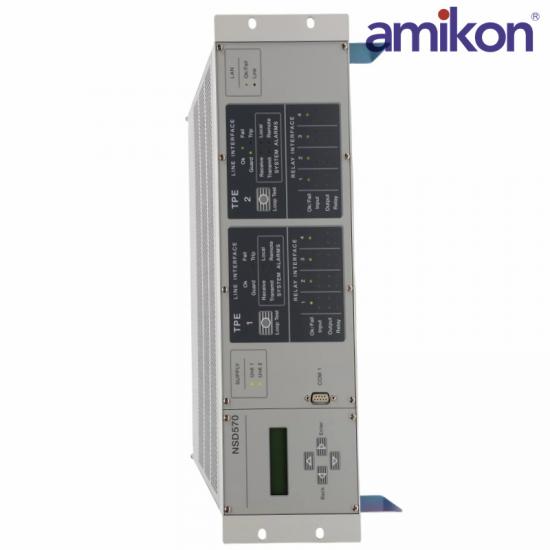

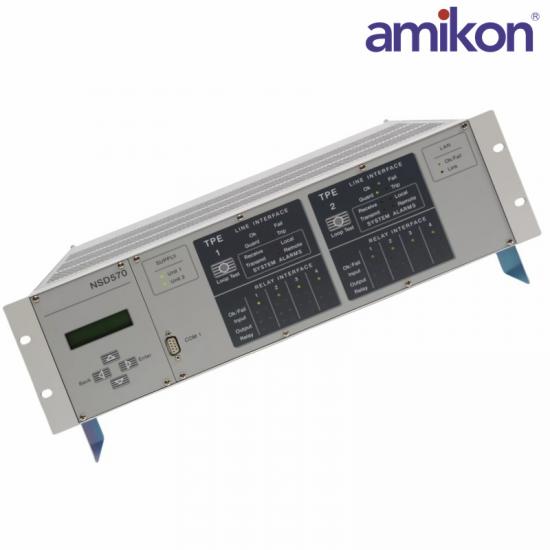

The ABB NSD570 is a teleprotection device used in power transmission networks for ensuring the secure and reliable operation of electrical systems. Teleprotection systems are designed to protect high-voltage transmission lines, substations, and other critical infrastructure by enabling fast communication between remote stations during fault conditions. These systems help in isolating faults and preventing damage to the network by executing protective actions based on real-time communication between the protection devices at both ends of a transmission line.

The NSD570  teleprotection device is designed to communicate protection signals over a digital communication network. It facilitates the exchange of trip and block signals between substations or remote stations for coordinated protection of power transmission lines.

This NSD570  device is critical in enabling fast and coordinated fault clearance by sending teleprotection signals to the opposite end of a power line, ensuring that the fault is isolated quickly to prevent further damage.

The teleprotection system is built to quickly detect faults and take protective actions. By using time-domain protection signals, it helps to limit the spread of faults in the system, reducing the potential for cascading failures.

The NSD570  is specifically designed to work with high-speed protection systems to ensure real-time response, often in less than 1 second.

The NSD570  typically uses digital communication protocols like IEC 61850 or protocols suitable for power system protection (e.g., G.703, Ethernet/IP, etc.) to transfer signals between the connected stations.

Built to operate in mission-critical environments, the NSD570  ensures high reliability and redundancy, with features that guarantee continuous operation even in the case of communication link failure.

Typically supports IEC 61850, G.703, or other industry-standard communication protocols suitable for high-speed, secure transmission of protection signals over digital networks.

The NSD570  typically operates with a 24V DC or 48V DC power supply, which is common for protection and telecommunication devices used in substations and electrical networks.

The NSD570  of -20°C to 60°C.

Dimensions:19-inch rack-mounted
