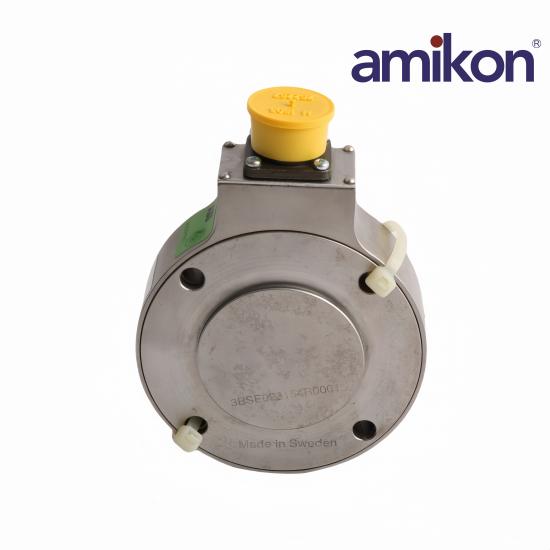

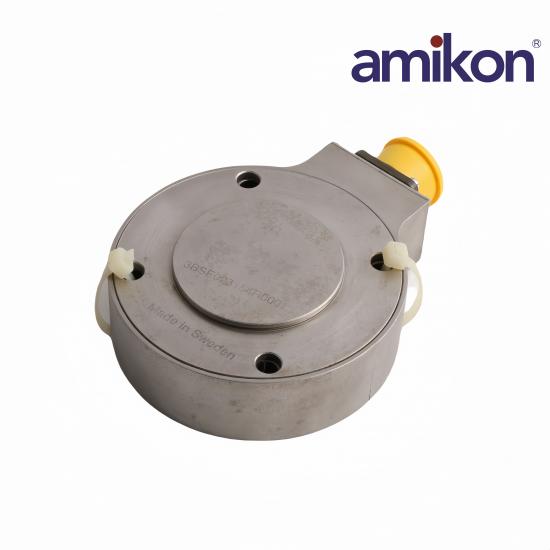

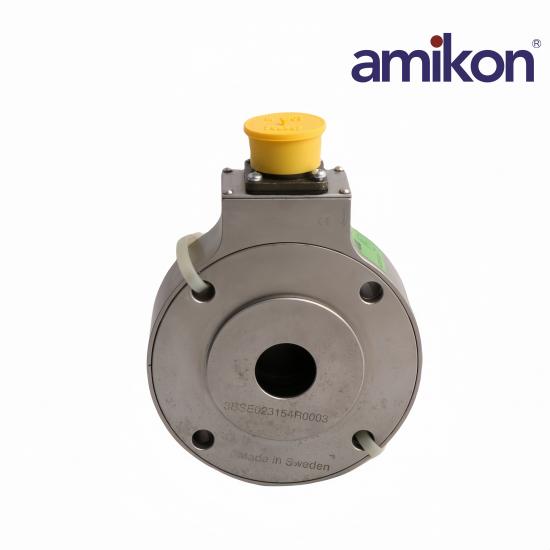

Manufacturer: ABB

Product Number: PFRL101A-0.5KN 3BSE023314R0003

Product Type: Load Cells

Dimension: 14.5x10.5x3.5cm

Weight: 1.28kg

Nominal load: 112 Lbs.

Extended load: 169 Lbs.

Overload: 562 Lbs.

Spring constant:  286 (1000 Lbs./inch)

Deflection: 0.01mm

Protection Rating: IP67

Wire Connection: 4-wire

Output Signal: 4-20mA

Material: Stainless Steel

Load Capacity: 0.5KN

For measuring web tension with shaft-mounted load cells, The Pressductor Radial Load Cell System is a high-quality system that provides exceptional and long lasting performance. The Pressductor Radial Load Cells are ideal for applications on a wide range of web processing machinery in the converting, plastic film, printing, textiles, and other industries.When exposed to mechanical force, ABB's Pressductor transducer produces measurement signals as a result of changes in magnetic fields. (Move your mouse over the illustration to see these changes.) Because these signals are not contingent upon physical movement or deformation, the load cells combine sensitivity with extraordinary tolerance to overloads and virtually no built-in limit to the number of load cycles. The ABB Pressductor transducers produces high-power, low-impedance AC signals that are very resistant to electrical interference and earth faults. ABB's Pressductor transducer stands for unbeatable load cell performance, thanks to its unique combination of accuracy, overload capacity and ability to withstand harsh environments. By using this technology you will achieve higher quality and reliability, especially under demanding conditions.
