Manufacturer : ABB

Product No. : PM857K02 3BSE088386R1

Clock Frequency : 96Mhz

Performance,1000 boolean operations : 0.17 ms

Performance : 0.17 ms

Memory : 32 MB

RAMavailable for application : 22.184MB

Processor type : MPC866

Switch over time in red. conf. : Max 10ms

No. of applications per controller : 32

No. of programs per application : 64

No. of diagrams per application : 128

Power supply : 24V DC (19.2-30 V DC)

Power consumption +24V typ/max : 210 / 360mA

Dimensions (L x W x H) : 13.5cm x 11.9cm x 18.6cm

Weight : 2.7 Kg

Shipping Weight : 5 Kg

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

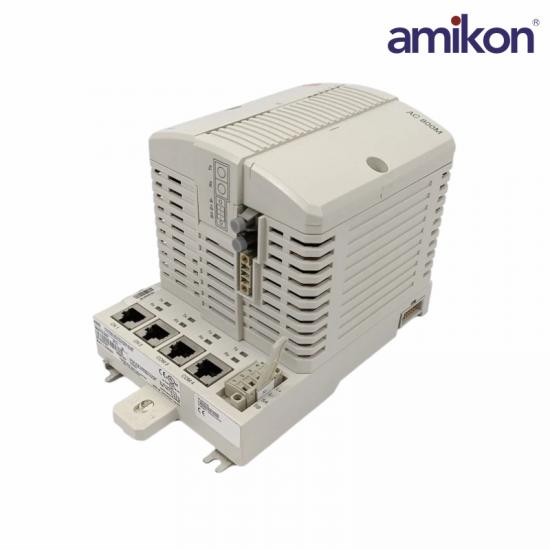

The base plate of the PM857 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. This enables non-critical control schemes to be upgraded to SIL-certified schemes by the addition of a plug-in SM81x module, plus a selection of the appropriate software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity.
