Manufacturer: ABB

Product Number: PP886 3BSE092980R1

Product Type: Standard Panel

Dimension: 41x28.7x5cm

Weight: 3.58kg

Resolution: 1280 x 800 (16:10 widescreen ratio)

Brightness: 450 cd/m ²

Processor: ARM9 (1 GHz)

Memory: 1 GB

External storage media: 2 GB SSD, 1.5 GB free for application storage

Power supply: 24 V DC (18 to 32 VDC)

Operating temperature: -10 °C to +60 °C

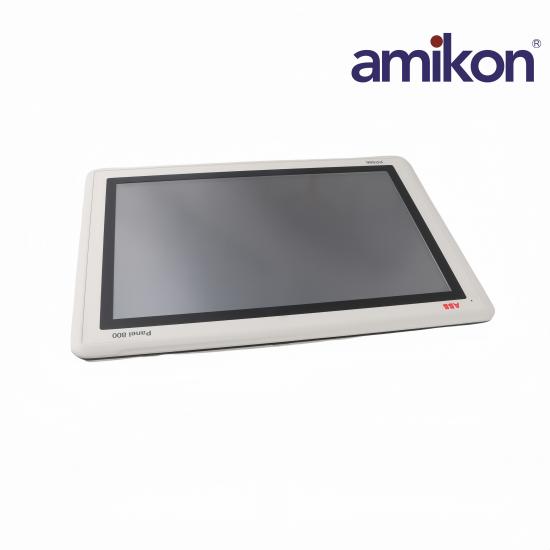

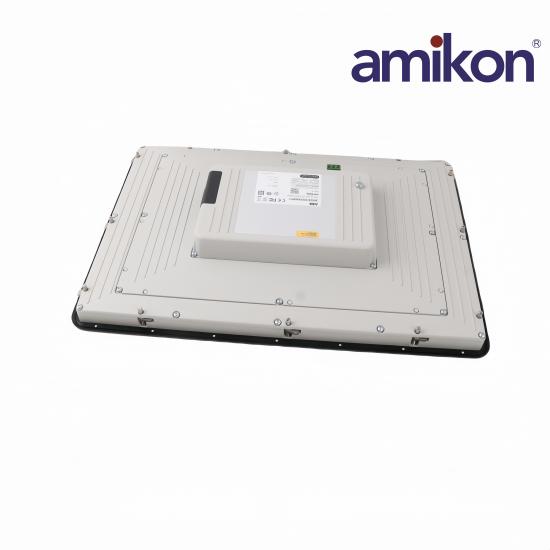

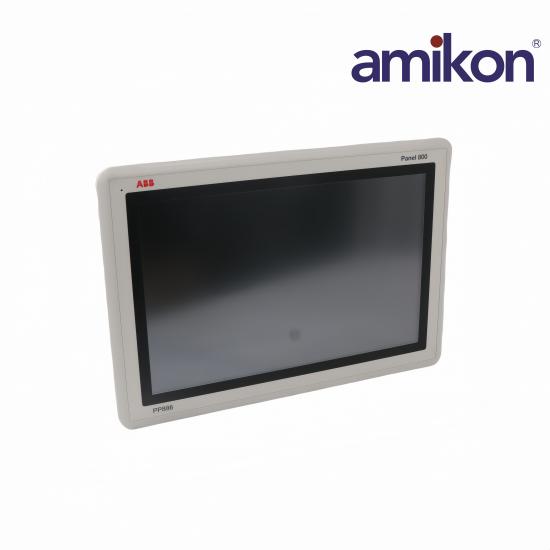

Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 which are easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy, and efficient engineering. Vector-based, high-resolution graphics in TFL/LED display, with the icon-based interface, navigation and control. Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures range between -10° C to + 60° C with maximum 85% humidity. Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it.
