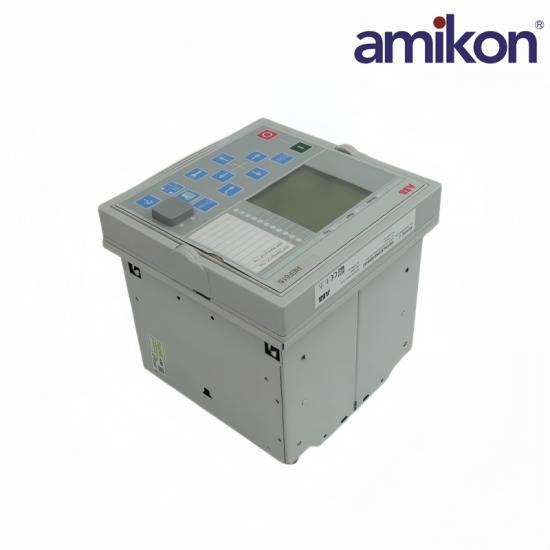

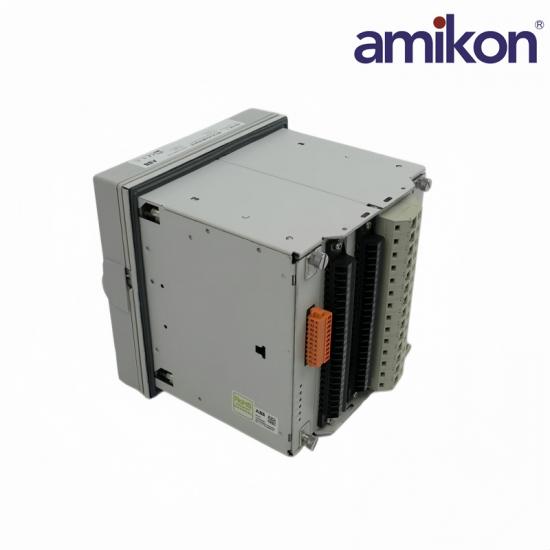

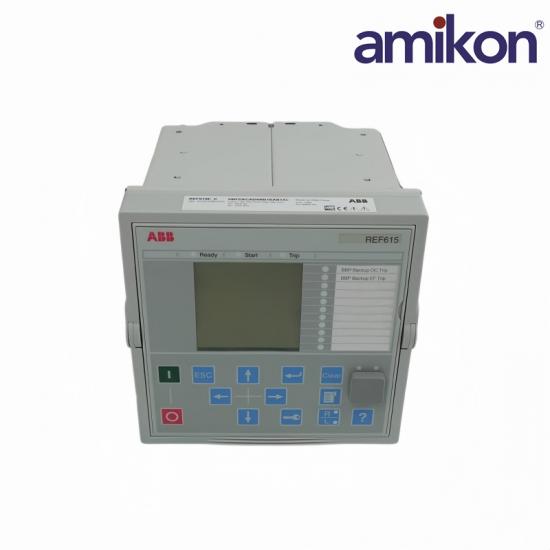

ABB REF615E-C HBFDACADANB1BAN1XC Feeder Protection and Control Relay

REF615E-C HBFDACADANB1BAN1XC
REF615E-C HBFDACADANB1BAN1XC
REF615E-C HBFDACADANB1BAN1XC

ABB REF615E-C HBFDACADANB1BAN1XC Feeder Protection and Control Relay

✉  INQUIRE NOW

ABB · ABB RELION 615 SERIES

REF615E-C HBFDACADANB1BAN1XC

Feeder Protection and Control Relay

MANUFACTURERABB
MODELREF615E-C
PART NUMBERHBFDACADANB1BAN1XC
PRODUCT TYPEFeeder Protection and Control Relay
SYSTEM FAMILYABB Relion 615 Series
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    REF615E-C HBFDACADANB1BAN1XC
  • Product Origin:

    Sweden
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    ABB
  • Product Origin:

    Sweden
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

ABB ABB Relion 615 Series

REF615E-C HBFDACADANB1BAN1XC

Price and Availability Inquiry

The ABB REF615E-C HBFDACADANB1BAN1XC is an Relion 615-series feeder protection and control relay supplied under the complete configuration code HBFDACADANB1BAN1XC.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model REF615E-C HBFDACADANB1BAN1XC and required quantity in your inquiry.

ABB REF615E-C HBFDACADANB1BAN1XC

Technical Specifications

Version 2.0 electrical, I/O, communication, environmental and physical data decoded for the exact REF615E-C order code.

01Electrical SupplyAuxiliary-power ratings
AC Supply100 / 110 / 120 / 220 / 240 V AC, 50/60 Hz
DC Supply48 / 60 / 110 / 125 / 220 / 250 V DC
Operating Variation38–264 V AC; 38.4–300 V DC
Power Burden<8.4 W quiescent; <13 W operating
02I/O & InterfaceExact order-code configuration
Current Inputs4 inputs; residual I0 = 1/5 A, <20 mΩ
Binary I/O12 binary inputs + 10 binary outputs
Serial InterfaceRS-485; two- or four-wire
Protocol & Time SyncModbus RTU/ASCII; IRIG-B
03EnvironmentalREF615 version 2.0 limits
Operating Temperature−25 to +55 °C continuous
Short-Time Temperature−40 to +85 °C, less than 16 h
Storage / Transport−40 to +85 °C
Humidity / Altitude<93% RH non-condensing; up to 2000 m
04Physical & CompatibilityMechanical and variant data
DimensionsFrame 179.8 × 177 × 194 mm; case 164 × 160 mm
Weight3.5 kg complete IED; 1.8 kg spare unit
Enclosure ProtectionIP54 front; IP20 rear terminals
Exact VariantConfiguration D; no Ethernet; version 2.0

ABB REF615E-C HBFDACADANB1BAN1XC Product Support

Frequently Asked Questions

Configuration-code identification, feeder application, communication, installation, commissioning and ordering guidance for REF615E-C HBFDACADANB1BAN1XC.

01

Which application is assigned to REF615E-C?

REF615 is an ABB Relion 615-series relay for feeder protection, measurement, control and condition monitoring.

02

Why must the complete order code be retained?

HBFDACADANB1BAN1XC defines the configured hardware and options; REF615E-C alone does not identify every fitted interface.

03

Which engineering tool is used?

ABB PCM600 and the matching REF615 connectivity package are used for configuration and relay engineering.

04

Which station-bus protocol is central to REF615?

The 615 series supports IEC 61850-8-1, including GOOSE messaging; configuration-dependent options must be checked.

05

Are all listed communication interfaces fitted to this relay?

Not necessarily. Ethernet, serial, redundancy and time-sync hardware depend on the complete ordering code.

06

How should settings be transferred during replacement?

Back up the existing PCM600 project, verify firmware and connectivity-package compatibility, then perform approved commissioning tests.

07

Which ordering details are required?

Provide REF615E-C, complete code HBFDACADANB1BAN1XC, firmware, quantity, auxiliary-supply data and label photographs.
