Description：

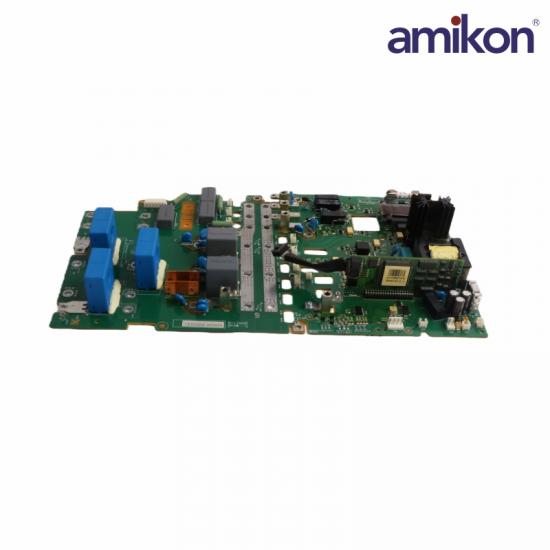

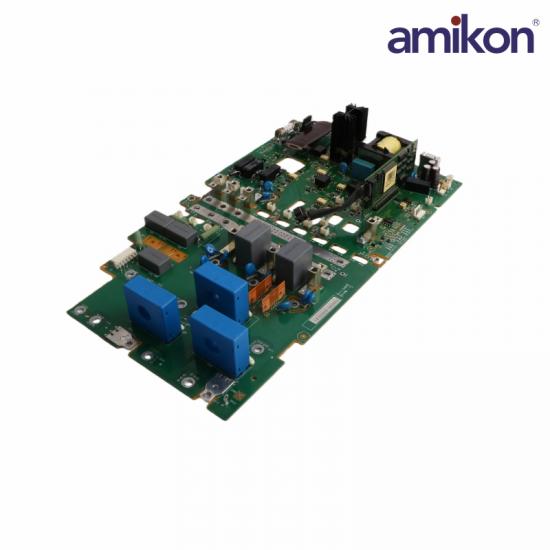

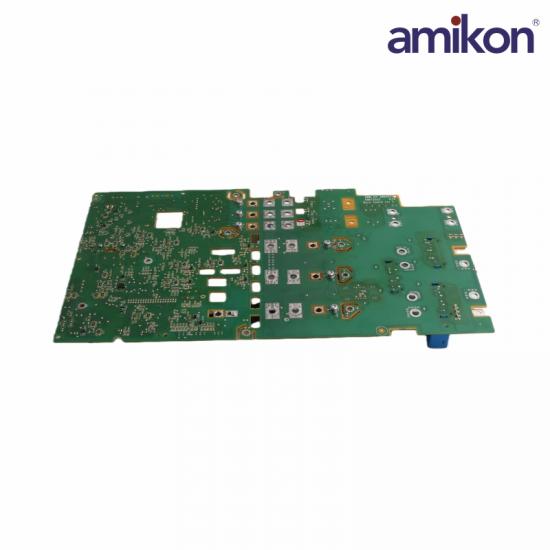

The ABB RINT-5521C 3AUA0000016016E is an industrial circuit interface and power driver board used in ABB drive systems, particularly within ACS800 series frequency converters and platforms. It functions as a core interface module that manages signal processing, power distribution, and communication between control electronics and power stages.

This RINT-5521C 3AUA0000016016E board plays a critical role in inverter operation, handling control signals, interfacing with I/O modules, and ensuring stable coordination between the drive controller and motor output stages. Designed with ABB’s advanced engineering, it provides high reliability, precise signal handling, and robust performance in demanding industrial environments such as manufacturing, energy, and process industries.

Specification：

Frequently asked questions

Q1: What is the ABB RINT-5521C used for?

A: The ABB RINT-5521C is a circuit interface board used in ABB drive systems to manage signal interfacing, control communication, and power distribution between internal drive components.

Q2: What is the RINT-5521C 3AUA0000016016E supply voltage of the RINT-5521C?

A: The RINT-5521C 3AUA0000016016E board operates with a 24 V DC supply voltage.

Q3: What is the RINT-5521C 3AUA0000016016E output current capability?

A: The RINT-5521C 3AUA0000016016E maximum output current is up to 10 A, supporting various control and interface functions.

Q4: What is the RINT-5521C 3AUA0000016016E operating temperature range?

A: The module operates within −20°C to +60°C, making it suitable for industrial environments.

Q5: What is the RINT-5521C 3AUA0000016016E storage temperature range?

A: The storage temperature range is −40°C to +85°C.

Product Applications

Manufacturing and Heavy Industry: Precise speed control for pumps, fans, compressors, and conveyor systems to enhance energy efficiency.

Electricity and Utilities: Supports power distribution and control systems in infrastructure.

Marine and Transportation: Applied to major engine overhauls, large spare parts, and complete power drive systems for ships.

Renewable Energy: Plays a role in the control aspects of wind power generation or solar systems.

Core functions and technical features

Drive execution and signal processing: As the signal center of the variable frequency system, it is responsible for power conversion and the execution of drive instructions.

Safety protection: Usually equipped with STO (Safety Torque Interruption) function, achieving SIL 3 safety level, which can immediately cut off the motor torque in emergency situations to prevent accidental startup.

Industrial durability: The circuit board design can withstand vibrations, electromagnetic interference and temperature fluctuations in industrial environments.
