Brand/Manufature:
ABBProduct Origin:
SWEDENLead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

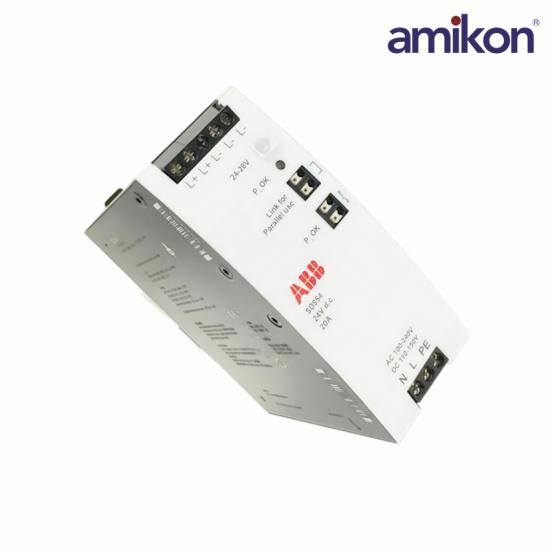

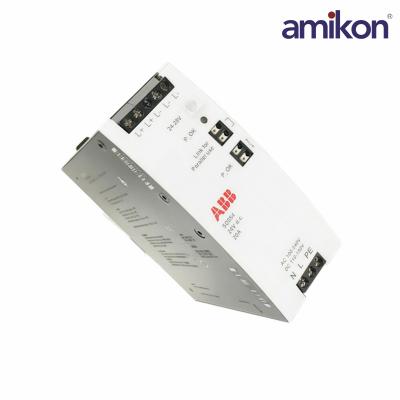

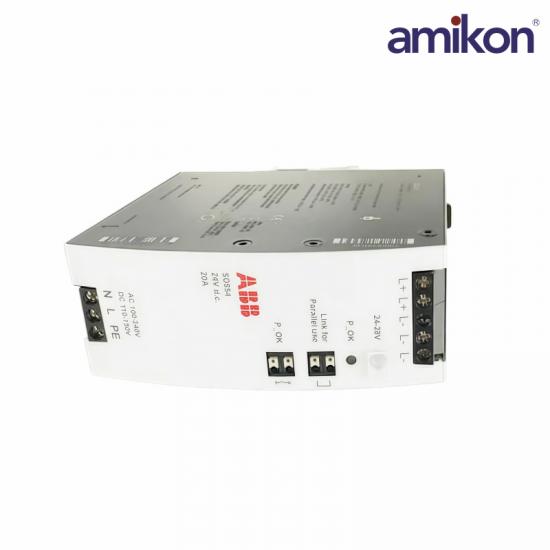

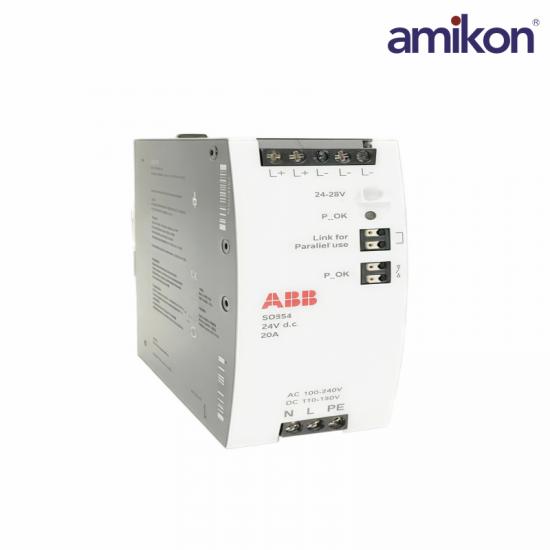

The SD854 Power supply units are designed for high efficiency, electronic inrush current limitation, wide operating temperature range, and extraordinarily small size. The lowest power losses and high lifetime expectancy deliver the lowest cost of ownership.
The SD854 series complies for use in potentially explosive atmospheres (IECEx Zone 2 and ATEX Zone 2). The SD854 series has a built-in power reserve and can easy breaking fuses due to high overload peak current capability.
Specification：
|
Part Number |
SD854 3BSE088189R1 |
|
Type |
Power supply |
|
Rated Output Current |
20 A |
|
Rated Output Power |
480 W |
|
Rated Output Voltage |
24 V DC |
|
Nominal Mains / Input Voltage |
100–240 V AC, 110–150 V DC |
|
Applications |
SELV and PELV |
|
Efficiency |
92.4% @ 120 V AC / 95.6% @ 230 V AC |
|
Mains Frequency |
50–60 Hz ±6% |
|
Primary Peak Inrush Current at Power On |
< 10 A |
|
Heat Dissipation |
29.6 W @ 120 V AC / 22.1 W @ 230 V AC |
|
Output Voltage Regulation (at max current) |
100 mV |
|
Secondary Voltage Holdup Time (mains blackout) |
32 ms |
|
Maximum Ambient Temperature |
70 °C |
|
Primary Recommended External Fuse |
10–20 A |
|
Output Overvoltage Protection |
Max 32 V DC |
|
AC Input Current |
4.26 A / 2.23 A |
|
AC Inrush Current |
10 A / 4.5 A peak |
Frequently asked questions
Q1: What is the ABB SD854 3BSE088189R1?
A1: It is a high-capacity industrial power supply module designed to provide stable 24 V DC power for and control systems.
Q2: What is the SD854 3BSE088189R1 rated output voltage?
A2: The SD854 3BSE088189R1 module delivers a regulated output of 24 V DC, suitable for standard industrial equipment.
Q3: What is the SD854 3BSE088189R1 rated output current?
A3: It provides up to 20 A of output current, supporting higher load requirements.
Q4: What is the SD854 3BSE088189R1 rated output power?
A4: The total output power is 480 W, making it suitable for large-scale systems.
Q5: What is the SD854 3BSE088189R1 AC input current?
A5: The SD854 3BSE088189R1 AC input current is approximately 4.26 A at 120 V AC and 2.23 A at 230 V AC.
Product Applications
Power and Energy Industry: Used for power distribution in power plants and power grid control systems, ensuring the continuity of power supply to DCS control systems.
Oil and Gas Industry: Provides a stable 24V DC power supply in the automated control of oil exploration, refining, and pipeline transportation, meeting explosion-proof and high reliability requirements.
Paper and Textile Industry: Particularly suitable for applications requiring long-distance motor drive or high motor insulation requirements, used as a core power module.
Manufacturing : Applied to assembly lines in automobile manufacturing, precision machining, etc., providing reliable power to field instruments and actuators.
Payment & Delivery
Payment Term: T/T
Lead Time: Usually 2-3 days
