Description：

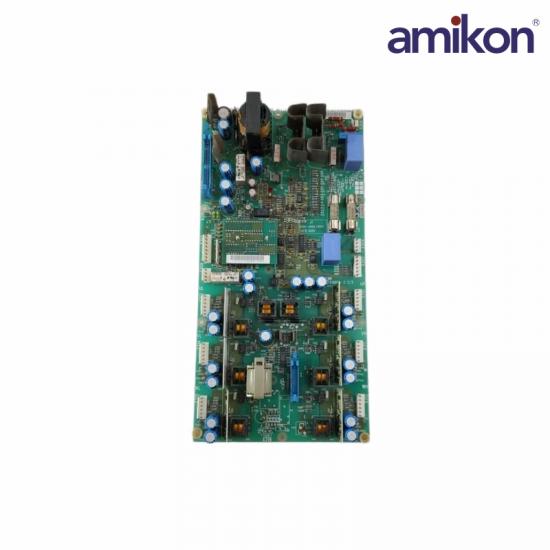

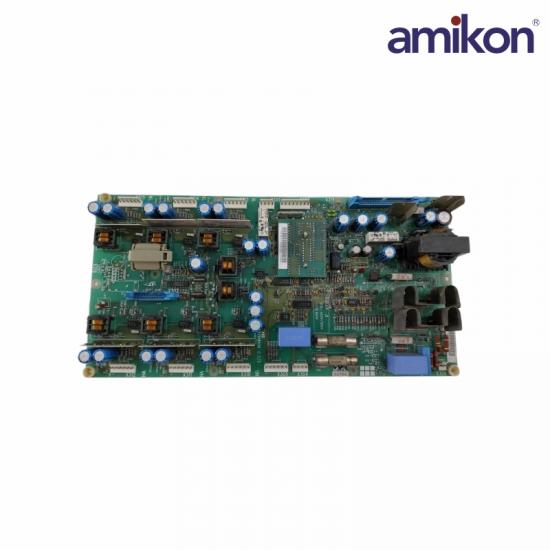

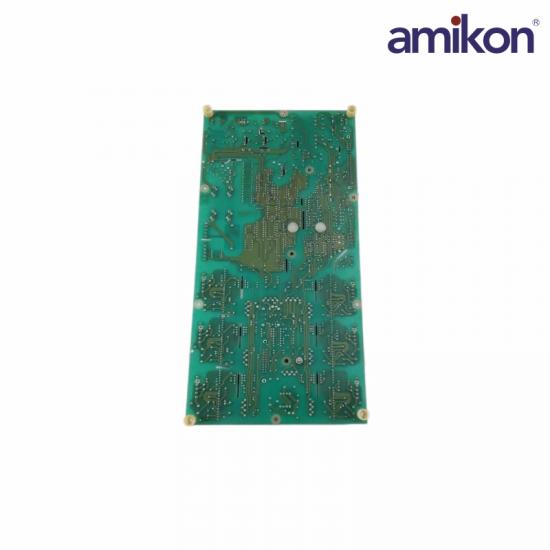

The ABB SNAT7261QCP is a dedicated power supply module designed for use within ABB’s industrial drive and control systems, specifically as a component in the ACS800 series and related drive platforms. This module serves as a power supply unit, providing regulated DC power to control boards, I/O interfaces, communication adapters, and other critical components within the drive system. As an OEM component, the ABB SNAT7261QCP is engineered to meet ABB’s stringent specifications for reliability, efficiency, and compatibility, ensuring stable operation of drive control electronics in demanding industrial applications. The “SNAT” prefix is characteristic of ABB’s internal spare parts numbering system for drive-related components. It is recognized as a critical replacement part for maintaining and repairing ACS800 drives, enabling facilities to extend equipment lifespan and minimize downtime through exact-component replacement.

Specification：

Frequently asked questions

Q1: What is the ABB SNAT7261QCP used for?

A1: It is used as a main interface board in ABB industrial and drive control systems.

Q2: What input voltage does the SNAT7261QCP support?

A2: It supports 24 VDC and 220 V AC input voltage.

Q3: What is the output voltage of the SNAT7261QCP board?

A3: The SNAT7261QCP output voltage is 24 VDC.

Q4: What is the maximum input current of the SNAT7261QCP module?

A4: The SNAT7261QCP maximum input current is 15 mA.

Q5: What is the SNAT7261QCP operating temperature range?

A5: The SNAT7261QCP operating temperature range is -25°C to +70°C.

Product Applications

Metallurgical and Steel Plants: Used in heavy-duty variable frequency speed control systems for blast furnace air supply, rolling mill drives, and roller conveyors.

Paper and Printing Plants: Controls the winding and arrangement of linear speed and tension control systems in large paper machines.

Cement and Mining Machinery: Drives equipment in high-dust and high-vibration environments such as large crushers, ball mills, and belt conveyors.

Petrochemical and Water Treatment Plants: Used for continuous operation control of constant torque or square torque loads such as large industrial pumps, blowers, and compressors.

Marine and Port Machinery: Some special models, due to their high protection levels, are also commonly used in the drive control of marine electric propulsion systems and port cranes.
