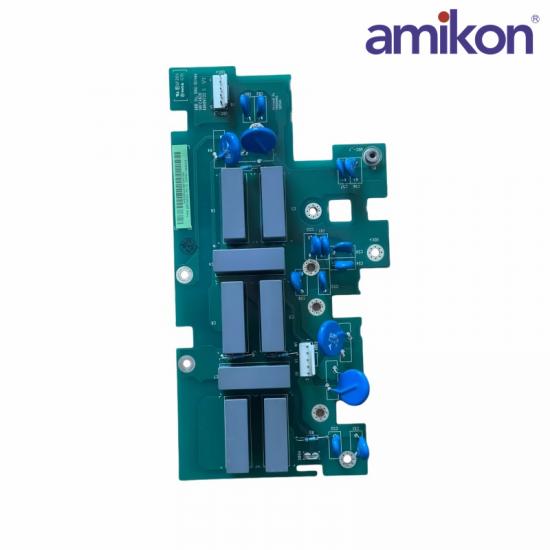

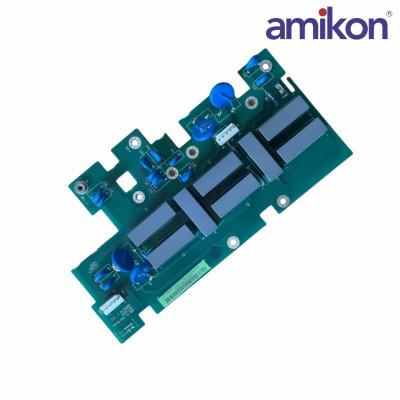

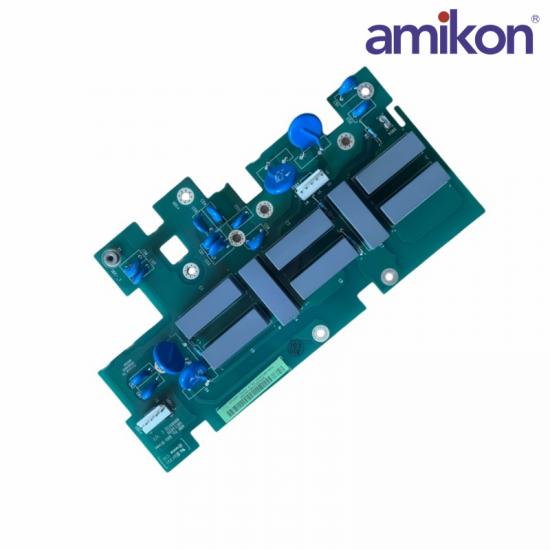

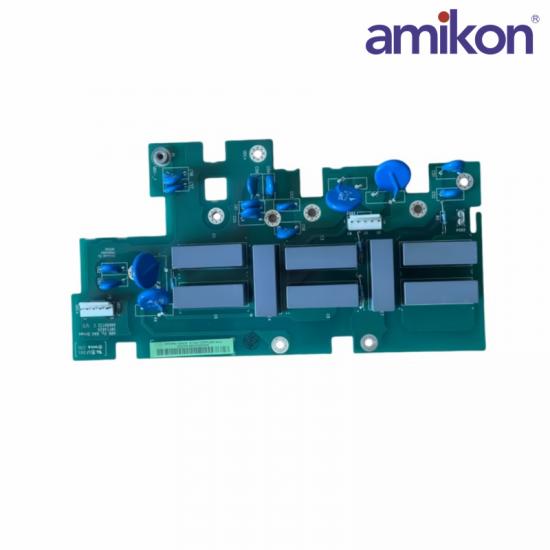

The ABB SRFC4620C is designed to enhance the overall performance of inverter systems by filtering out electromagnetic and radio frequency interference (EMI/RFI). In industrial settings, inverters can produce high-frequency noise during the switching of power electronics, which may interfere with nearby sensitive equipment or communication systems. The filter plate mitigates these effects, ensuring compliance with stringent EMC (Electromagnetic Compatibility) standards and providing a cleaner electrical signal.

The ABB SRFC4620C is designed to enhance the overall performance of inverter systems by filtering out electromagnetic and radio frequency interference (EMI/RFI). In industrial settings, inverters can produce high-frequency noise during the switching of power electronics, which may interfere with nearby sensitive equipment or communication systems. The filter plate mitigates these effects, ensuring compliance with stringent EMC (Electromagnetic Compatibility) standards and providing a cleaner electrical signal.

The SRFC4620C is typically utilized in medium to large inverter systems, providing essential protection in applications such as motor drives, HVAC systems, conveyor belts, and various machinery. Its robust construction ensures durability in harsh environments, making it ideal for industrial applications where reliability and system integrity are paramount.

SRFC4620C Rated Voltage (AC): Typically within 380V to 690V AC range, suitable for medium-voltage inverters.

Frequency Range: Operates at the fundamental frequency of the inverter (50 Hz to 60 Hz) and filters high-frequency harmonics (typically up to 30 MHz).

SRFC4620C Current Rating: Designed to handle current ratings matching the inverter capacity, typically in the range of 50A to 600A depending on the system's requirements.

Leakage Current: The filter minimizes leakage current, helping protect sensitive equipment.

SRFC4620C Typically -25°C to +55°C, designed to withstand industrial environmental conditions.

Storage Temperature Range: Between -40°C and +70°C for safe handling and storage.

Humidity Tolerance: Can operate under relative humidity up to 95%, non-condensing.

SRFC4620C Dimensions: 300mm x 200mm x 50mm.

Weight: Typically in the range of 2-10 kg.

Attenuation: High attenuation over a wide frequency range (up to 30 MHz), ensuring significant reduction in high-frequency noise.

Insertion Loss: Typically in the range of 20-60 dB, depending on the frequency and application, ensuring that high-frequency noise is adequately suppressed.
