Description：

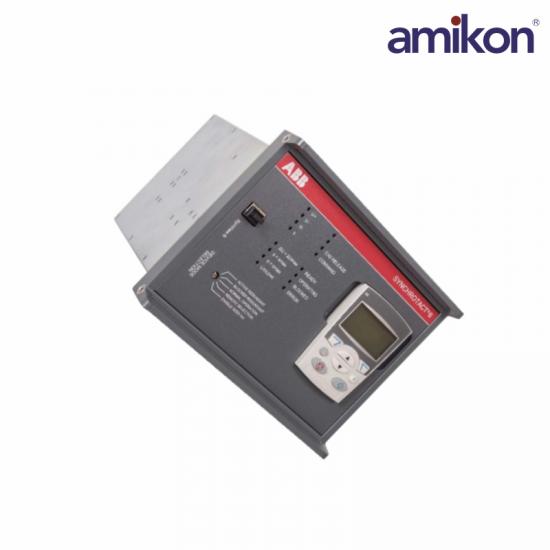

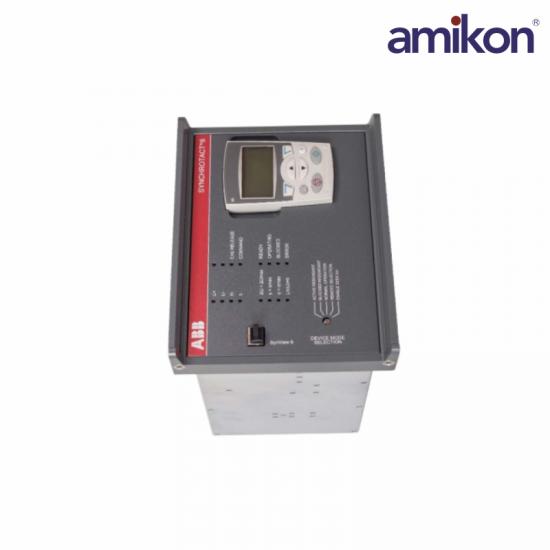

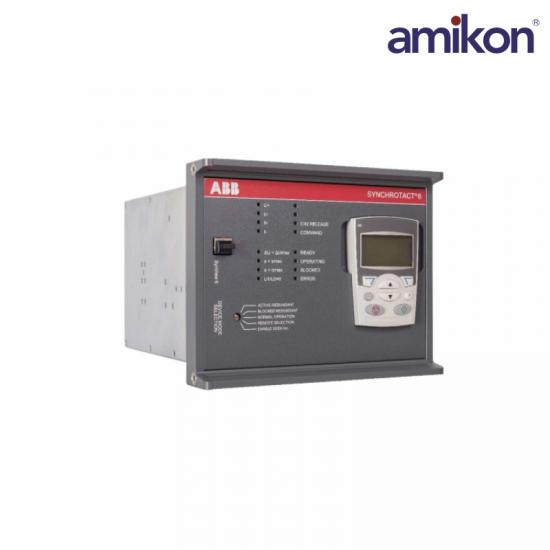

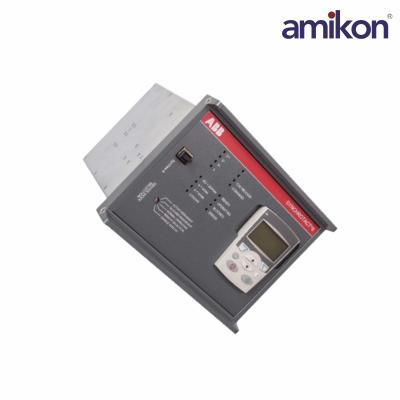

The ABB SYN 6302 3BHE056302R0203 Synchronizing System is a high-precision synchronizing device designed to ensure safe and accurate parallel connection of generators, power lines, and circuit breakers in power systems. It continuously monitors and matches critical parameters such as voltage, frequency, and phase angle, enabling seamless synchronization between power sources and the electrical grid.

Specification：

Frequently asked questions

Q1: What is the ABB SYN 6302 3BHE056302R0203?

A1: It is a synchronizing system used to automatically match voltage, frequency, and phase angle between power sources before connecting them, ensuring safe and reliable grid or generator synchronization.

Q2: What is the SYN 6302 3BHE056302R0203 nominal voltage range?

A2: The SYN 6302 3BHE056302R0203 system supports a nominal voltage range of 57.7 V to 120 V, suitable for standard power system applications.

Q3: What frequency range does it support?

A3: It operates at 50 Hz or 60 Hz, making it compatible with global power standards.

Q4: What is the SYN 6302 3BHE056302R0203 isolation rating?

A4: It complies with IEC 60255-5 and provides 2 kV isolation, ensuring electrical safety and protection.

Q5: What is the SYN 6302 3BHE056302R0203 operating temperature range?

A5: The SYN 6302 3BHE056302R0203 operating temperature range is −25°C to +40°C, while the storage temperature range is −25°C to +65°C.

Product Applications

Power Plants: This is the primary application area. It is used for thermal power generation, hydropower generation, and gas turbine units, ensuring that the voltage, frequency, and phase of the generator's output are completely consistent with the grid before grid connection, and preventing grid connection impacts.

Metallurgy & Steel: In large rolling mills or smelting plants, this equipment is used to manage the startup and operation control of high-power synchronous motors, ensuring the stability of power supply for the production line.

Oil & Gas: Applied in offshore drilling platforms or self-contained power stations of large refineries, it maintains the synchronous management of complex industrial power grids.

Chemical Industry: Used for the synchronous motor control system of large compressors or pump sets to ensure the continuity of high-energy consumption production processes.
