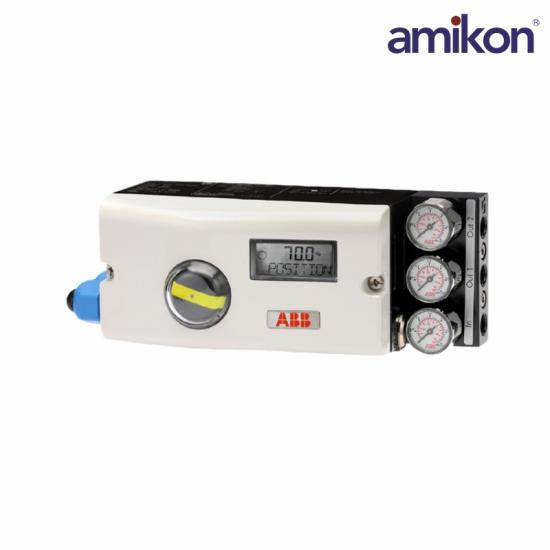

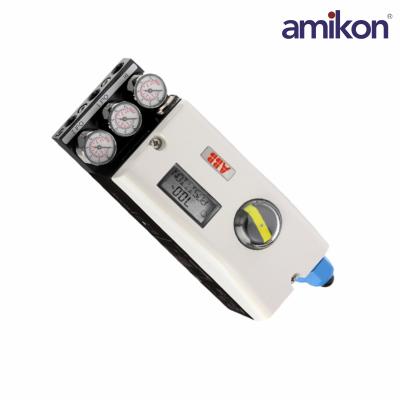

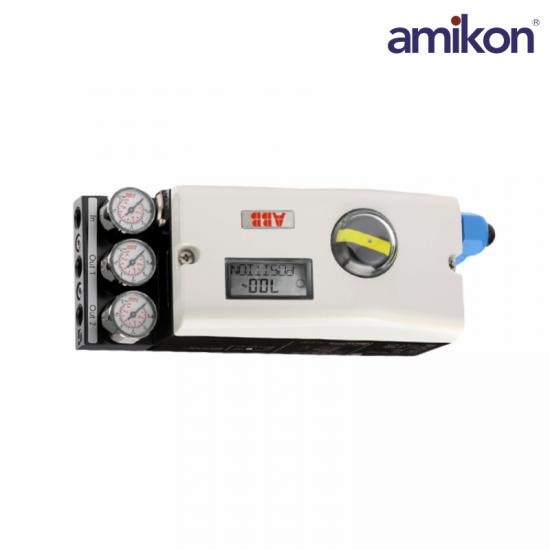

Manufacturer : ABB

Product No.   : V18345-1010221001

Product Type : Valve Positioner

TZIDC-120 Intelligent Positioner : V18345 = Intelligent, configurable with indicator and operator panel

Optional mechanical kit for digital position feedback : 1 = Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc.   to DIN/IEC 534 / NAMUR or to rotary actuators acc.   to VDI/VDE 3845 also ready for integral mounting

0 = Always 0

Input / communication port : 1 = Input 4...  20 mA, two-wire with connector plug for LKS adapter

Explosion protection : 0 = without

Output / safe position (in case of an electrical power failure) : 2 = Single acting, fail freeze

Connections : 2 = Cable: Thread 1/2-14 NPT;   Air pipe: Thread 1/4-18 NPT

Option modules for analog or digital position feedback : 1 = Plug-in module analog position feedback (sign.   range 4 … 20 mA)

Optional mechanical kit for digital position feedback : 0 = without

0 = Always 0

Design (varnish / coding) : 1 = Standard

Shipping Weight : 5 Kg

ABB’s TZIDC Smart Series, featuring SKU 14479 and ABB No.  V18345-1010221001, is a top-tier “smart” positioner renowned for its exceptional precision.  It offers customizable control functions and straightforward commissioning via the autohub feature, making it a go-to choice for demanding applications.

The TZIDC is engineered to excel on control valves with rotary actuators, employing standard Namur mounting hardware. However, it’s not limited to just rotary actuators; it can also be efficiently used on linear control valves, enhancing its adaptability.
