Manufacturer : ABB

Product No. : V18345-1010421001

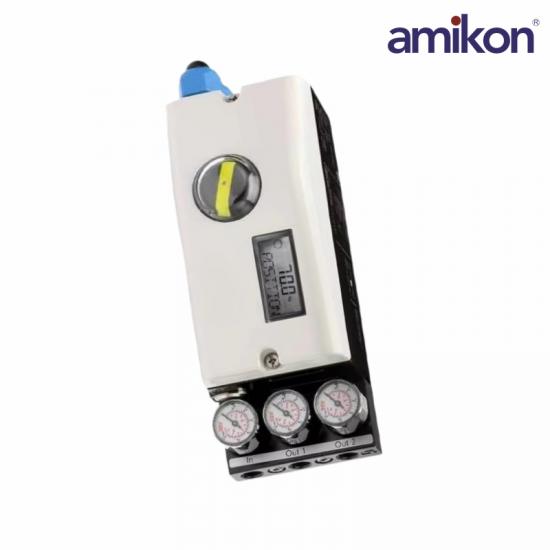

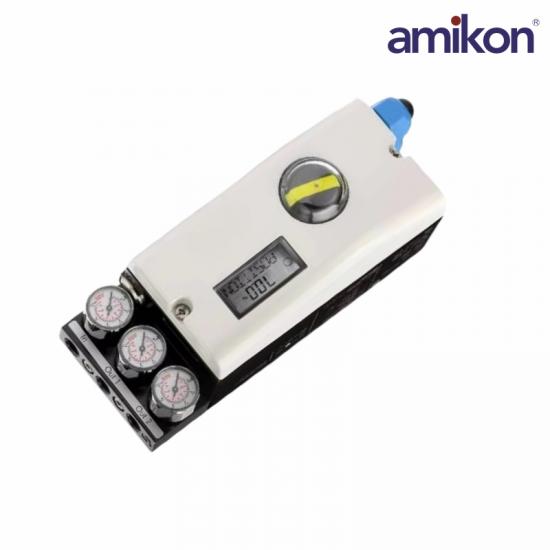

Product type : TZIDC Electro-Pneumatic Positioner

V18345 : TZIDC = intelligent, configurable with indicator and operator panel

Input / communication port : 1 = Input 4...20 mA, two-wire with connector plug for LKS adapter

Explosion protection : 0 = without

Output / safe position (in case of an electrical power failure) : 4 = Double acting, fail safe

Connections : 2 = Cable: Thread 1/2-14 NPT, Air pipe: Thread 1/4-18 NPT

Option modules for analog or digital position feedback : 1 = Plug-in module analog position feedback (sign. range 4 … 20 mA)

Optional mechanical kit for digital position feedback : 0 = without

Design (varnish / coding) : 1 = Standard

Output signal (two-wire technology) Nominal range : 4 ... 20 mA

Digital input : Control voltage 0 ... 5 V DC logical switching state "0" 11 ... 30 V DC logical switching state "1"

Digital output (control circuit to DIN 19234/NAMUR) Supply voltage : 5 ... 11 V DC

Supply pressure : 1.4 ... 6 bar (20 ... 90 psi)

Air consumption : < 0.03 kg/h / 0.015 scfm (independent of supply pressure)

Pneumatic connections : Threads G 1/4 or 1/4-18 NPT

Weight : 1.7 Kg

he ABB V18345‑1010421001 Valve Positioner is a smart electro‑pneumatic valve positioner from ABB’s TZID/TZIDC series, engineered for precise control of pneumatic actuators on industrial control valves. This intelligent device accepts 4–20 mA control signals and translates them into accurate pneumatic output to position the valve stem or rotary actuator precisely, enabling stable regulation of flow, pressure, and other process variables.
