Description：

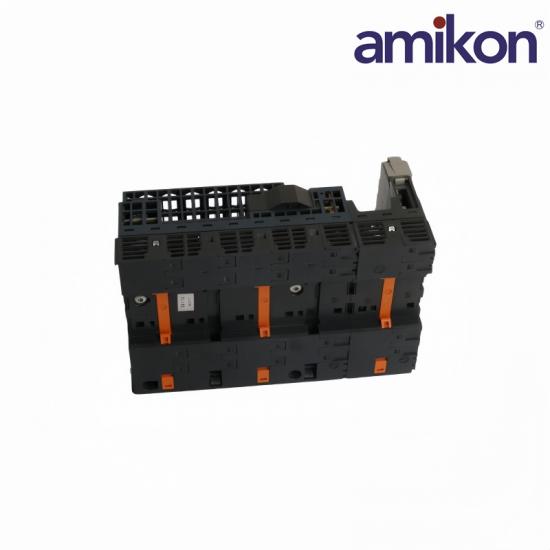

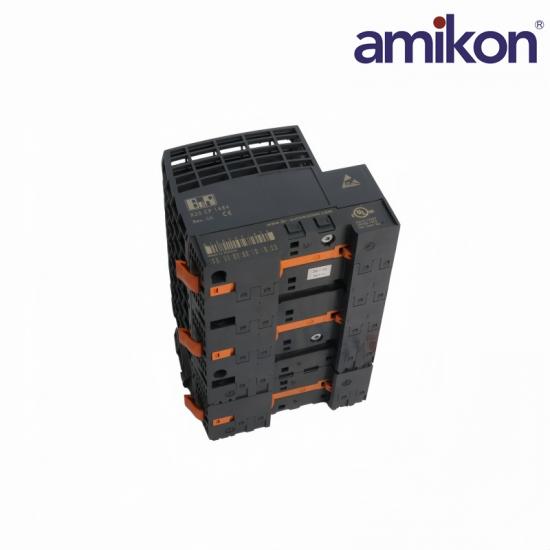

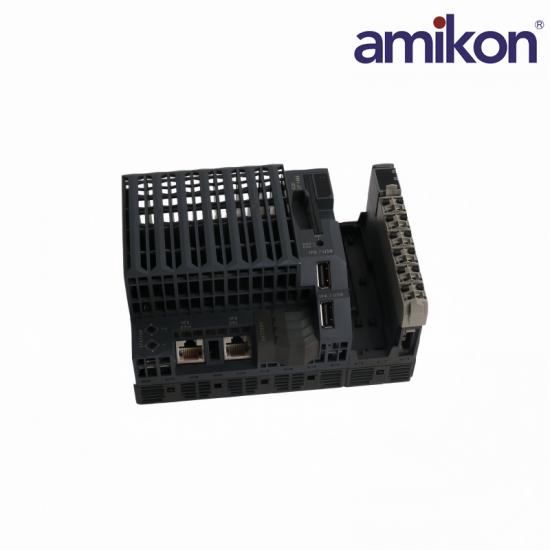

The X20CP1484-1 is the smallest Celeron based CPU for the X20 System. However, its shortest cycle time of 800 µs still shows its power. The basic features are the same as those of the larger types.

This CPU module has Ethernet and USB onboard, and also provides a POWERLINK connection for real-time communication. The only differences between the X20CP1484-1 and the X20CP3484-1 are that the former has just one slot for interface modules and a smaller width.

The CPU models X20CP1484 and X20CP1484-1 differ only by SDRAM size.

Specification：

Frequently asked questions

Q1: What is the maximum input current of the B&R X20CP1484-1 CPU Module?

A: The X20CP1484-1 supports a maximum input current of 2.2 A, ensuring stable operation under normal system loads.

Q2: What is the nominal output power of the X20CP1484-1 CPU Module?

A: The X20CP1484-1 module provides a nominal output power of 7 W, allowing it to efficiently support connected components.

Q3: How much power does the X20CP1484-1 bus interface consume?

A: The X20CP1484-1 bus interface has a power consumption of 1.42 W, contributing to the module's overall energy-efficient operation.

Q4: What is the internal I/O power consumption of the X20CP1484-1 module?

A: The X20CP1484-1 internal I/O section consumes 0.6 W, helping minimize power requirements while maintaining reliable performance.

Product Applications

Packaging and Consumer Goods Manufacturing: High-speed and motion control on production lines.

Textile and Printing Machinery: Continuous production processes requiring synchronization and precision.

Semiconductor and Electronic Products: Gripping, handling, and assembly monitoring of precision components.

Metalworking and Automotive Manufacturing: Machine tool integration and control of various production lines.

Features：

Intel Celeron 266 Performance with additional I/O processor

Ethernet, POWERLINK and USB onboard

1 slot for modular interface expansion

CompactFlash as removable application memory

Fan-free

Extremely compact
