Description：

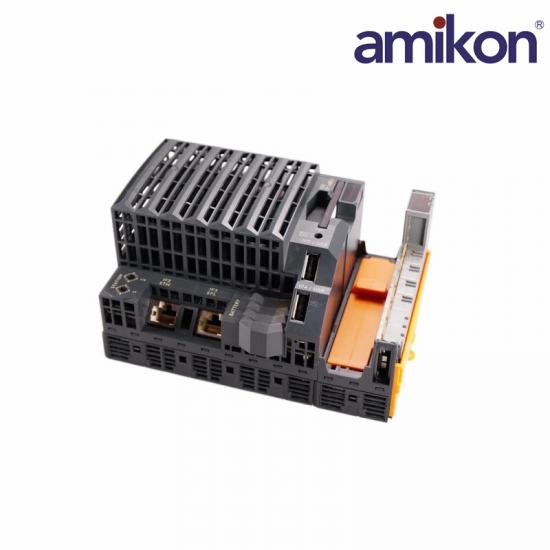

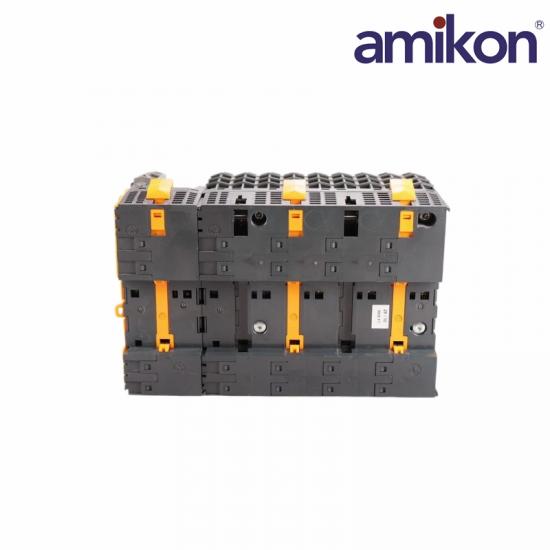

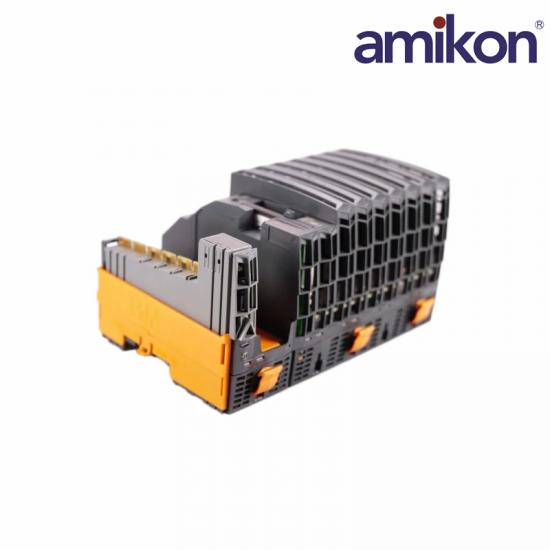

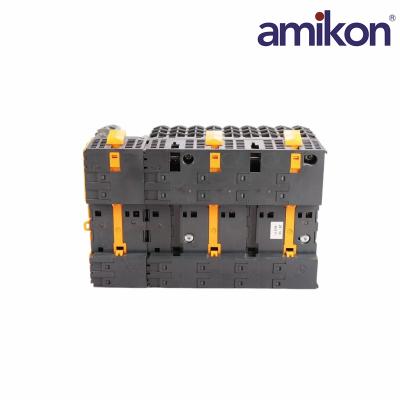

The X20CP1485-1 is a powerful CPU for the X20 System. This CPU is especially useful for applications that require short cycle times, have to process very large amounts of data, or carry out floating point operations.

Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3485-1 are that the X20CP1485-1 only has one slot for interface modules and a smaller width.

The two CPU models X20CP1485 and X20CP1485-1 differ only by SDRAM size.

Specification：

Frequently asked questions

Q1: What is the input voltage requirement of the B&R X20CP1485-1 CPU?

A: The X20CP1485-1 operates with a 24 VDC power supply and supports an input voltage tolerance of -15% to +20%, providing flexibility in industrial power environments.

Q2: What is the maximum input current of the X20CP1485-1?

A: The X20CP1485-1 CPU has a maximum input current of 2.2 A, ensuring reliable performance during normal operation.

Q3: What is the nominal output power of the B&R X20CP1485-1?

A: The X20CP1485-1 module delivers a nominal output power of 7 W, supporting efficient operation of connected components.

Q4: Can the X20CP1485-1 handle voltage fluctuations?

A: Yes. With its 24 VDC -15% / +20% input voltage range, the CPU can tolerate moderate power supply variations commonly found in industrial applications.

Product Applications

Packaging Machinery: Used in pillow packaging machines, filling machines, and labeling machines. Utilizes POWERLINK's strong real-time capabilities to achieve high-speed, high-precision multi-axis synchronous motion control and registration.

Printing and Papermaking: Applied in shaftless printing presses, slitting machines, and winding machines. Ensures tension control and color registration accuracy under high-speed operation through extremely short control cycles.

Textile Machinery: Controls spinning machines, looms, and dyeing and finishing equipment, stably handling complex process logic and high-density field I/O data acquisition.

Electronics and Semiconductors: Suitable for dispensing machines, chip mounters, wafer handling equipment, etc.

Environmental Protection and Water Treatment: Used in distributed control systems for large-scale wastewater treatment plants and waterworks.

Energy and Power: It has mature applications in pitch control, main control systems and solar tracking systems of wind power plants.

Features：

Intel Celeron 400 Performance with additional I/O processor

Ethernet, POWERLINK and USB onboard

1 slot for modular interface expansion

CompactFlash as removable application memory

Fan-free

Extremely compact
