The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1, and M10X1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection. Connector protectors prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal.

Notes:

Proximitor Sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.

Silicone tape is also provided with each 3300 NSv extension cable and can be used instead of connector protectors. Silicone tape is not recommended in applications where the probe-to-extension cable connection will be exposed to turbine oil.

Frequently Asked Questions

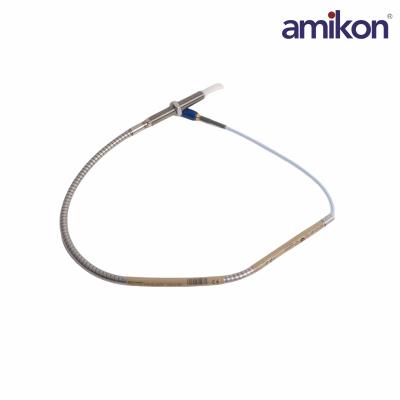

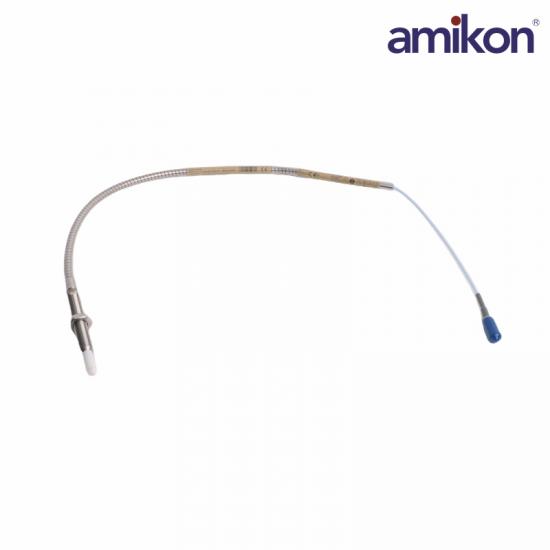

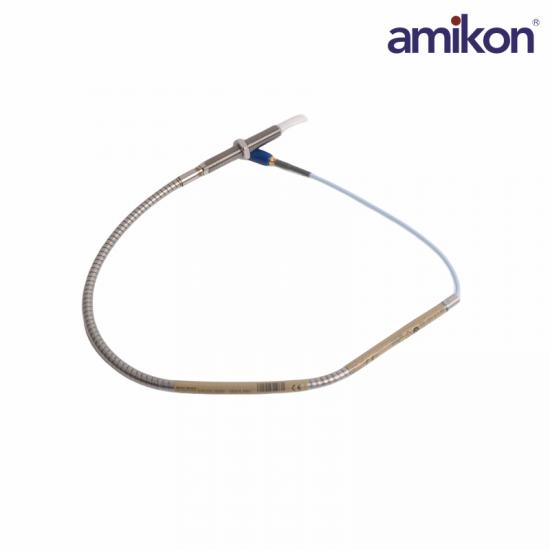

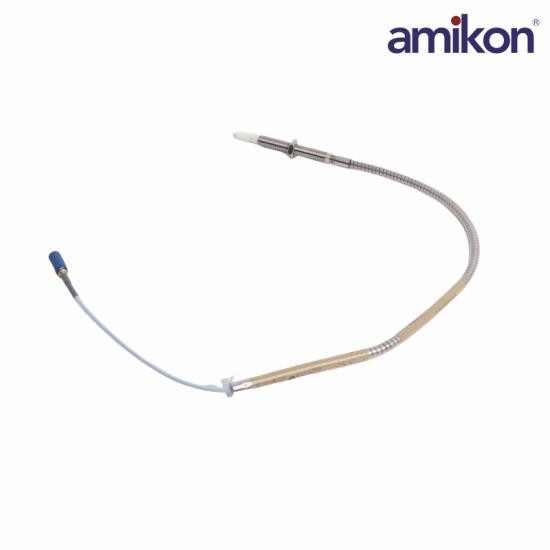

Q1: What is the Bently Nevada 330910-00-23-10-02-05 Proximity Probe used for?

A1: It is used for non-contact vibration and shaft position monitoring in rotating machinery protection systems.

Q2: What is the unthreaded case length of the 330910-00-23-10-02-05 probe?

A2: Unthreaded Case Length Option 00 is 0 mm.

Q3: What is the 330910-00-23-10-02-05 overall probe length?

A3: Overall Probe Length Option 23 is 230 mm.

Q4: What is the 330910-00-23-10-02-05 total system length?

A4: Total System Length Option 10 is 1.0 meter (39 inches).

Q5: What are the advantages of the 330910-00-23-10-02-05 Proximity Probe?

A5: It provides accurate shaft displacement measurement, reliable signal transmission, and stable industrial performance.

Product Applications

Oil and Gas: High-speed centrifugal compressors, process gas compressors, and industrial pumps in oil refineries and natural gas pipelines.

Petrochemicals and Chemicals: Monitoring various high-speed, large rotating machinery in chemical plants.

Power Industry: Monitoring bearing vibration and axial displacement in power plant turbines (such as steam turbines) and generators.

Refrigeration and Compressors: Refrigeration compressors and machinery in compact installation environments.
