Maximum operating current：260 mA at 12 V, 150 mA at 24 V

Maximum standby current：145 mA at 12 V, 85 mA at 24 V

Charge fail/excitation range：0 V to 35 V

Digital inputs A to H：Negative switching

Analogue inputs A & D：Configurable as negative switching digital input / 0 V to 10 V sensor / 4 mA to 20 mA sensor / Resistive sensor

Voltage range (Ph to N)：15 V to 415 V AC

Voltage range (Ph to Ph)：26 V to 719 V AC

Frequency range：3.5 Hz to 75 Hz

Magnetic pickup voltage range：±0.5 V to 70 V

Magnetic pickup frequency range：10,000 Hz (max)

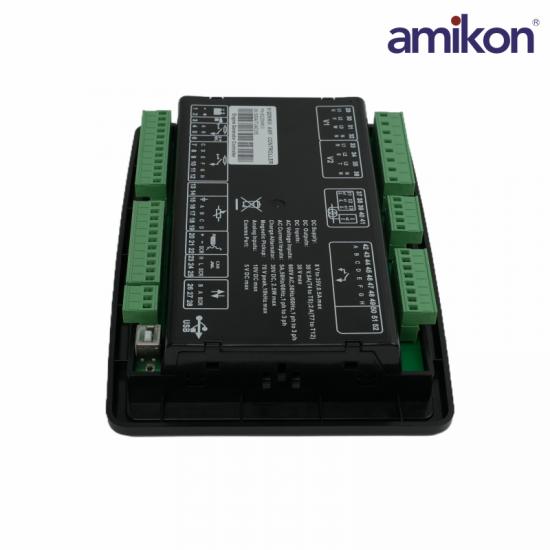

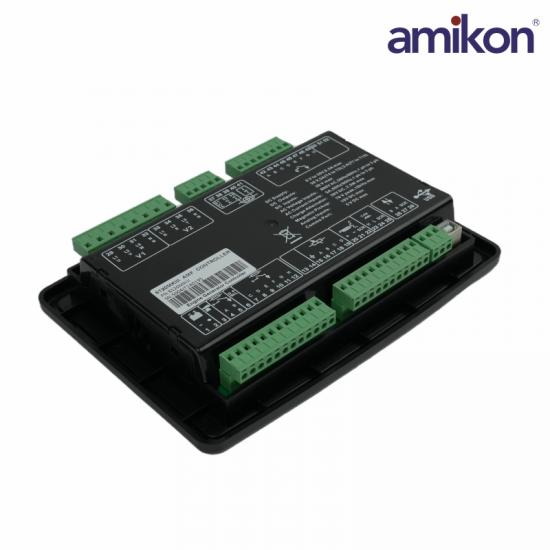

The DSE6120 MKIII is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, genset applications.

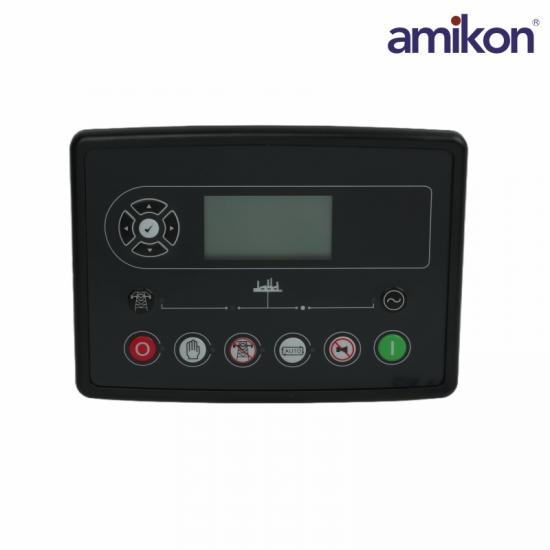

Monitoring an extensive number of engine parameters, the DSE6120 MKIII module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC.

The DSE6120 MKIII module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offers an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.
