Rated power in VA：250 VA

Input voltage：230 V AC single phase

Output voltage：230 V AC

Secondary winding：Single

Protective cover：Without

Ambient air temperature for operation：-20…50 °C

Input voltage limits：207...253 V / 360...440 V

Network frequency limits：47…63 Hz

Input voltage tolerance：±15 V

Efficiency：90 %

Power dissipation in W：27.8 W

Output sustained overvoltage：5 % (no load, hot state)

Maximum voltage drop at rated load：0.7 %

No load losses：12.5 W

Short-circuit voltage：0.0585

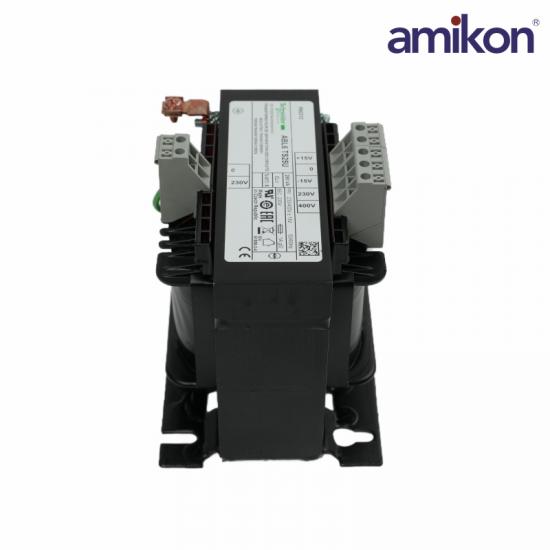

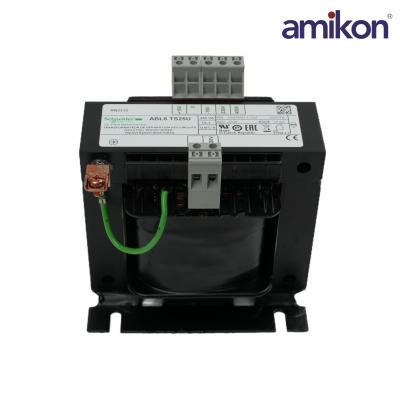

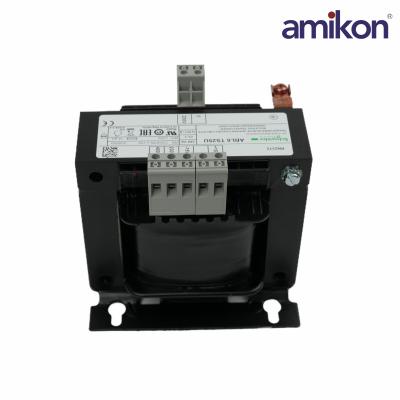

This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 250VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
