Mfr. Part Number:

DS200TCQAG1BHF

Manufacturer

 General Electric

Description:

Get the best deals for DS200TCQAG1BHF

Full Description

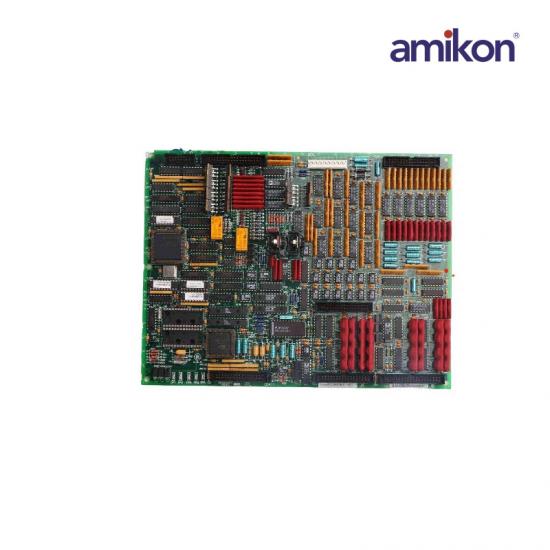

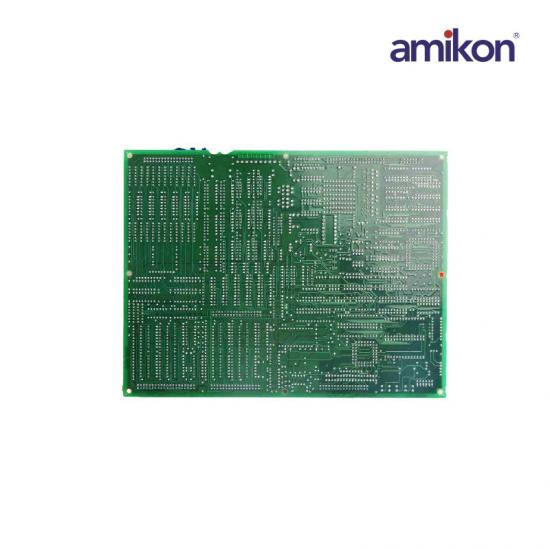

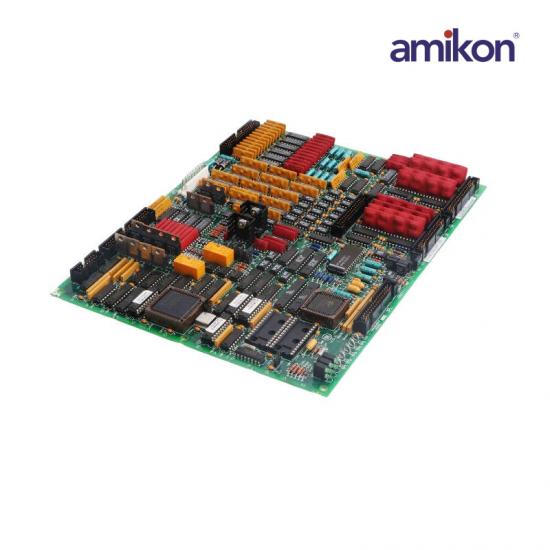

 The GE RST Analog I/O Board DS200TCQAG1BHF contains four 34-pin connectors, two 40-pin connectors, and six jumpers. The board also has 6 LEDs. The GE RST Analog I/O Board DS200TCQAG1BHF is designed with 6 holes for installing the board in the board cabinet on the drive.

Status:

In stock ready for shipment

Product Description

The GE RST Analog I/O Board DS200TCQAG1BHF contains four 34-pin connectors, two 40-pin connectors, and six jumpers. The board also has 6 LEDs. The GE RST Analog I/O Board DS200TCQAG1BHF is designed with 6 holes for installing the board in the board cabinet on the drive. The holes align with matching holes in the board rack and you can attach the board with washers and screws. When you remove the old board, keep the washers and screws together for use when you install the replacement board. Due to the high voltage in the board, it is critical to not let any metal parts fall into the board cabinet. If a screw or washer falls in the cabinet, locate the part and remove it from the drive. It the drive is started with the loose metal still inside, the metal might damage the drive or start a fire or cause a serious electrical shock.

Some guidelines are available to help prevent the metal screws and washers from dropping in the drive. When you remove the board, use one hand to hold the screwdriver and the other hand to guide the screwdriver to the screw and then to hold the screw when it is removed. To install a screw, use one hand to align the screw in the hole, and with the other hand, turn the screwdriver. Never over tighten the screws because the board might crack or break apart. Instead, only tighten the screw firmly in place. The washer helps protect the board from damage from over tightening.
