Mfr. Part Number:

IC695ALG728

Manufacturer

General Electric

Description:

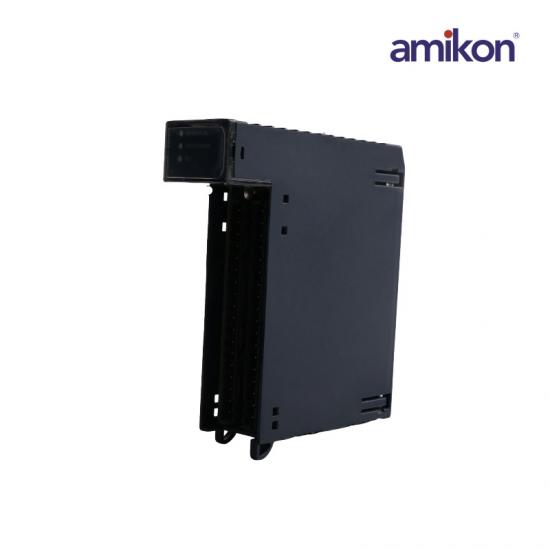

GE IC695ALG728 Analog Output Module

Status:

In stock ready for shipment

The IC695ALG728 is an analog output module that is part of the PACSystem RX3i platform, currently under Emerson Automation, formerly produced by GE Intelligent Platforms (GE IP). This module has Eight (8) non-isolated output channels configurable as voltage and current. It generates +/-10 VDC, 0-10 VDC and 0-20 mA and 4-20 mA output signals with resolution of 14.9 bits for voltage and 15.9 bits at 0-20 mA and 15.6 bits at 4-20 mA. This module supports Highway Addressable Remote Transducer (HART) protocol version 5.0.

The IC695ALG728 features Eight (8) non-isolated output channels configurable for +/-10 VDC, 0-10 VDC and 0-20 mA and 4-20 mA output signals with specific resolutions of 14.9 bits for voltage and 15.9 bits at 0-20 mA and 15.6 bits at 4-20 mA. Each channel features an update time of 16 ms with HART communication and 8 ms when HART is not used. The module’s output data format is configurable as floating-point IEEE 32-bit or 16-bit integer using a 32-bit register. The module’s calibrated accuracy is 0.15% of full scale at 25°C or 0.30% of full scale when operating at 60°C. Furthermore, the output settling time is 2 ms for voltage configuration; 70 ms with HART and 23 ms without HART, for current signals
