Part Number: 8106‑TI‑RT

Module Type: 4-channel RTD input

Input Type: Thermal resistance (RTD), 2‑, 3‑ or 4‑wire support

RTD Sensor Types Supported: Pt100 (IEC/BS/DIN), Ni120, jPt100 (JIS)

Resolution: 15 bits plus sign

Response Time: Up to 840 ms

Excitation Current: ~200 μA nominal

Input Resistance Span: 0–500 Ω

Common Mode Rejection: >80 dB @50/60 Hz

Current Consumption: Max 200 mA

Operating Voltage: Typically 24 V DC

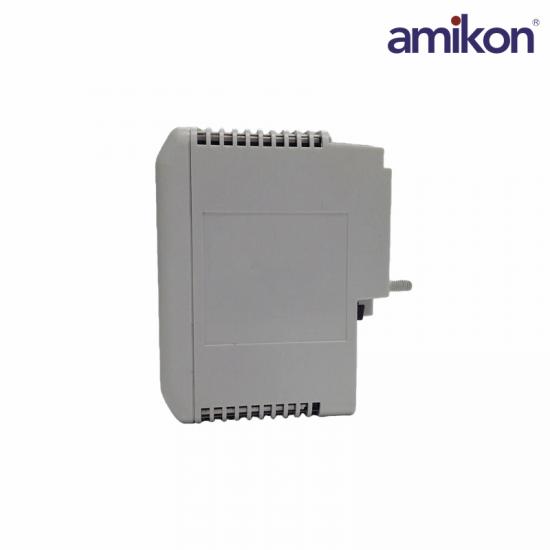

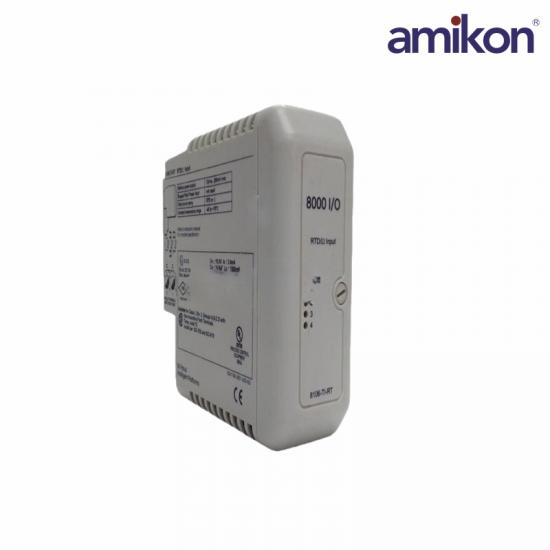

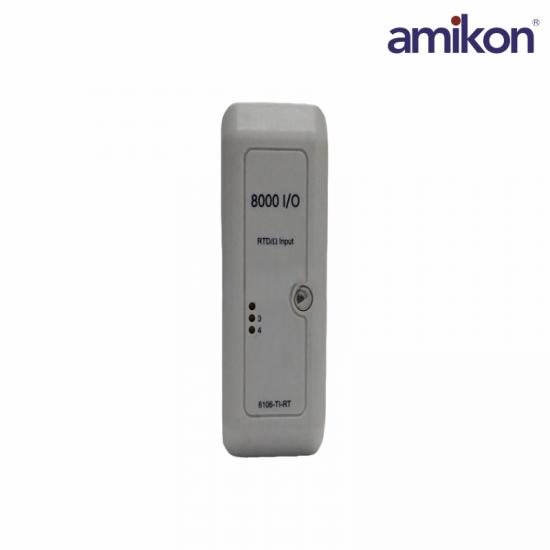

The Emerson 8106‑TI‑RT is a 4‑channel RTD (Resistance Temperature Detector) input module designed for industrial automation and process control applications. It accepts signals from multiple RTD sensors (2‑, 3‑, or 4‑wire configurations) such as Pt100, Ni120 or other resistance temperature detectors, and provides accurate temperature measurement data to PLC or PAC systems. Built for reliability and precision, this module supports high‑resolution conversion with cold‑end compensation and linearization for stable temperature monitoring across demanding environments. It is widely used in energy, petrochemical, manufacturing and HVAC applications where precise temperature feedback is essential.

Frequently asked questions：

Q1: What signal types does the 8106‑TI‑RT module accept?

A: It accepts thermal resistance (RTD) signals from 2‑, 3‑, or 4‑wire RTDs such as Pt100, Ni120, and jPt100.

Q2: How many channels does the 8106-TI-RT module support?

A: Four independent RTD input channels are supported.

Q3: What is the 8106-TI-RT typical response time?

A: The 8106-TI-RT maximum response time for signal sampling is approximately 840 ms.

Q4: What temperature ranges can the 8106-TI-RT module measure?

A: Depending on the RTD type, typical ranges include −200 to +850 °C for Pt100 sensors.
