Emerson KJ3002X1-BC1 DeltaV Analog Input Card

KJ3002X1-BC1
KJ3002X1-BC1
KJ3002X1-BC1

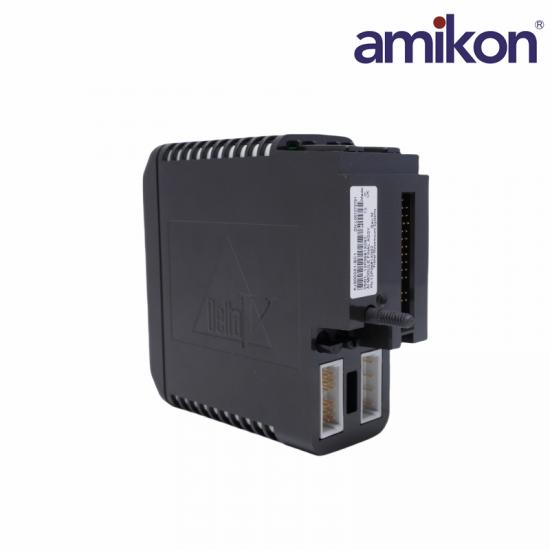

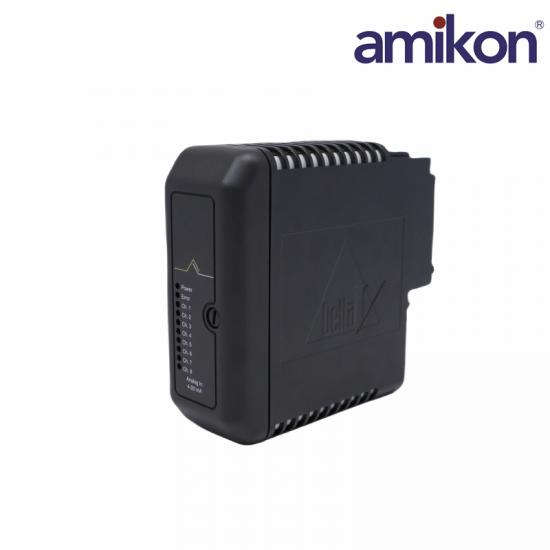

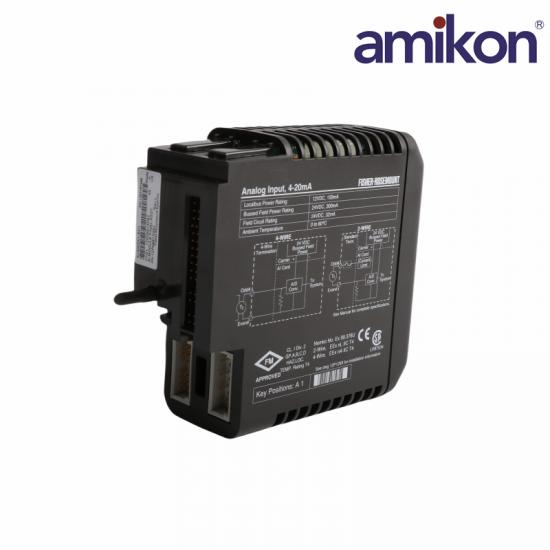

Emerson KJ3002X1-BC1 DeltaV Analog Input Card

✉  INQUIRE NOW

Emerson · DELTAV M-SERIES I/O

KJ3002X1-BC1 8CH-4-20MA

DeltaV 8-Channel 4–20 mA Analog Input Card

MANUFACTUREREmerson
MODELKJ3002X1-BC1 8CH-4-20MA
PART NUMBERKJ3002X1-BC1 8CH-4-20MA
PRODUCT TYPEDeltaV 8-Channel 4–20 mA Analog Input Card
SYSTEM FAMILYDeltaV M-Series I/O
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    KJ3002X1-BC1
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Emerson
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Emerson DeltaV M-Series I/O

KJ3002X1-BC1

Price and Availability Inquiry

The Emerson KJ3002X1-BC1 is an eight-channel, 2-wire 4–20 mA analog input card with 12 V DC LocalBus power and terminal key position A1.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model KJ3002X1-BC1 8CH-4-20MA and required quantity in your inquiry.

Emerson KJ3002X1-BC1 8CH-4-20MA

Technical Specifications

Published technical and ordering data from KJ3002X1-BC1 Instruction Sheet.

01Product IdentityExact product identification
ManufacturerEmerson
Module CodeKJ3002X1-BC1
Product Type2-wire analog input card
Channels8
02Signal DataPublished technical data
Input Type4–20 mA
Transmitter Type2-wire loop-powered
Field Circuit24 V DC at 32 mA/channel
Terminal KeyA1
03Power DataInterface and installation data
LocalBus Power12 V DC at 150 mA
Bussed Field Power12 V DC at 300 mA
System PowerKJ1501X1-BC1 compatible
SystemDeltaV M-Series
04Environmental DataOperating and replacement data
Operating Temperature0 to +60 °C
Hazardous LocationClass I, Division 2
Zone InstallationUse document 12P2046
Commissioning8-channel loop verification

Emerson KJ3002X1-BC1 8CH-4-20MA Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for KJ3002X1-BC1.

01

Can this card be used for eight 2-wire 4–20 mA transmitters?

Yes, it provides eight 2-wire 4–20 mA input channels when wired and powered to the published limits.

02

How should field-power demand be calculated?

Check the 24 V DC, 32 mA per-channel field circuit and the 12 V DC, 300 mA bussed field-power requirement.

03

Why must terminal key A1 be retained?

A1 keying helps prevent the card from being inserted into an incompatible terminal position.

04

How should channel configuration be migrated?

Export the I/O setup and record each tag, range, alarm limit and terminal before exchanging the card.

05

When does the Zone 2 installation document apply?

Use DeltaV document 12P2046 when the module is installed in the specified hazardous-location environment.

06

How can an incorrect 4–20 mA reading be diagnosed?

Check loop power, polarity, field current, terminal mapping and channel configuration before replacing the card.

07

How should the spare be identified for ordering?

Specify KJ3002X1-BC1 and verify the complete installed label.
