The Emerson SM-PROFIBUS is a drive option module providing PROFIBUS DP communication with cyclic and non-cyclic data exchange.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation supportSend the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LLLisa LinSales Specialist

WhatsApp+86 18965423501

Emailsales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model SM-PROFIBUS and required quantity in your inquiry.

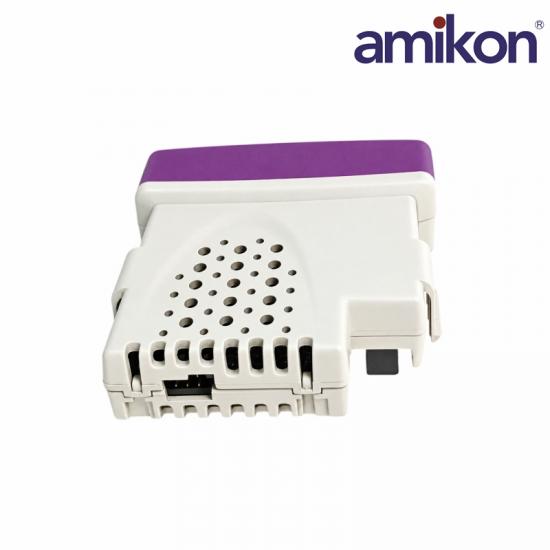

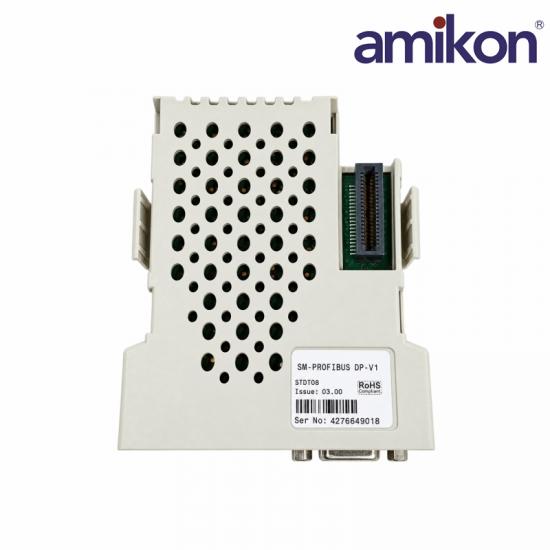

Emerson SM-PROFIBUS

Technical Specifications

Official Emerson technical values for SM-PROFIBUS.

01Product IdentityEmerson module data

ManufacturerEmerson

Article NumberSM-PROFIBUS

Module ID403

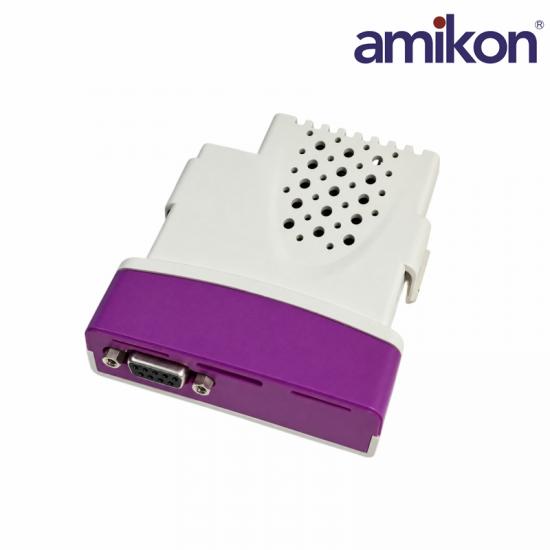

Connector9-pin female D-sub

02Network DataPROFIBUS-DP limits

Data Rate9.6 kbit/s–12 Mbit/s

Maximum Network Nodes125

Maximum Segment Devices32

Minimum Node Spacing1 m

03Cyclic DataProcess-data capacity

Input Data32 words max.

Output Data32 words max.

Word Width16 bit

32-Bit Channels16 max.

04Electrical & Cable DataInterface operating values

Termination Supply5 V DC

Backup Supply Current70 mA

Cable Length at 12 Mbit/s100 m

Cable Length at 9.6 kbit/s1,200 m

Emerson SM-PROFIBUS Product Support

Frequently Asked Questions

Host-drive compatibility, PROFIBUS configuration, diagnostics, migration and ordering guidance for SM-PROFIBUS.

Which host equipment should be checked before installing SM-PROFIBUS?

Use it only with a Emerson drive that supports the applicable Solutions Module slot, and confirm the drive model and firmware against the SM-PROFIBUS DP-V1 user guide.

How can the installed module be identified in drive diagnostics?

The read-only module identification code is 403; the applicable diagnostic menu depends on the Solutions Module slot.

How should the PROFIBUS address and segment size be planned?

Assign a unique node address no higher than 125 and limit each segment to 32 devices, including repeaters.

Which data rate and cable length must be coordinated?

The module supports 9.6 kbit/s to 12 Mbit/s; the listed maximum cable length is 100 m at 12 Mbit/s and 1,200 m at 9.6 kbit/s.

How much cyclic process data can the control project exchange?

The module supports up to 32 input words and 32 output words, with a 16-bit word width and up to 16 mapped 32-bit channels.

How should an existing PROFIBUS project be migrated to a replacement module?

Retain the node address and cyclic-data map, use the correct Emerson GSD file, confirm the module slot and firmware, and validate communications before enabling the drive.

Which connector and ordering identity should be specified?

Use the 9-pin female D-sub network connector and order the exact module SM-PROFIBUS; verify module ID 403 after installation.
