This system offers a maximum in functionality and is certified according to SIL3 – DIN EN 61508 in combination with epro MMS eddy current measuring chains. It requires the following components:

3 x monitor MMS 6350 (/DP) (incl. firmware applic. no. 0)

Profibus-interface (optional)or alternatively 3 x monitor MMS 6350D (/DP)

3 x blind plate BLE 008, for the installation of monitors without display.

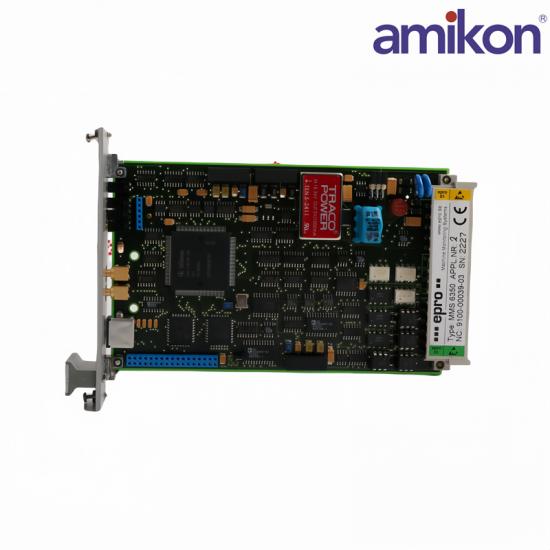

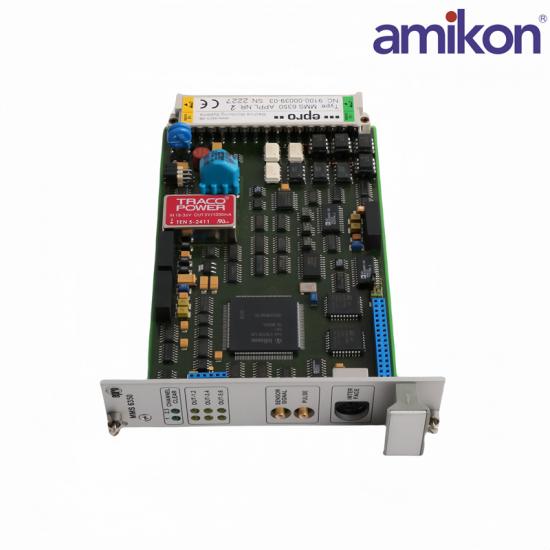

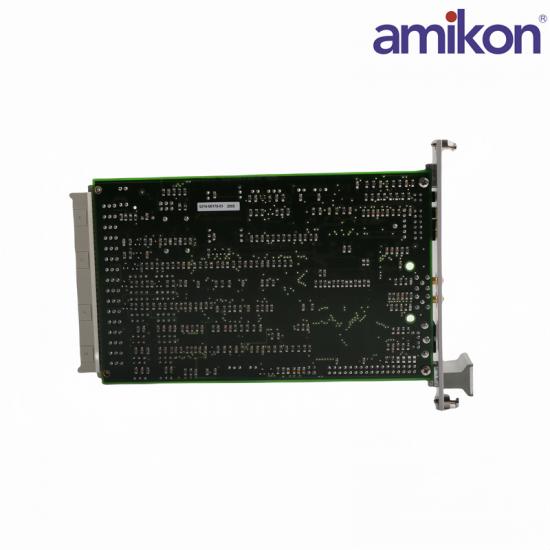

The MMS 6350 speed monitor provides altogether 6 function outputs. These function outputs may be used as alarm outputs as well as for indication of individual measuring states.

Moreover, the sixth function output offers the possibility to provide a digital signal for an external digital speed indicator or to output speed pulses.

EPRO MMS 6350/DP is a compact, high-performance speed measurement card that is designed to work with the EPRO MMS 6350 (/DP) motion controller. It supports up to 8 axes of speed measurement and can be used to measure the speed of a variety of types of motors, including stepper motors, servo motors, and AC induction motors.

Features:

Supports up to 8 axes of speed measurement

Wide range of supported motor types

Axis type: Stepper or servo

Axis speed: Up to 1000 rpm

Axis torque: Up to 10 Nm

Drive power: Up to 2 kW

Accuracy: ±0.1%

Resolution: 0.1 rpm
