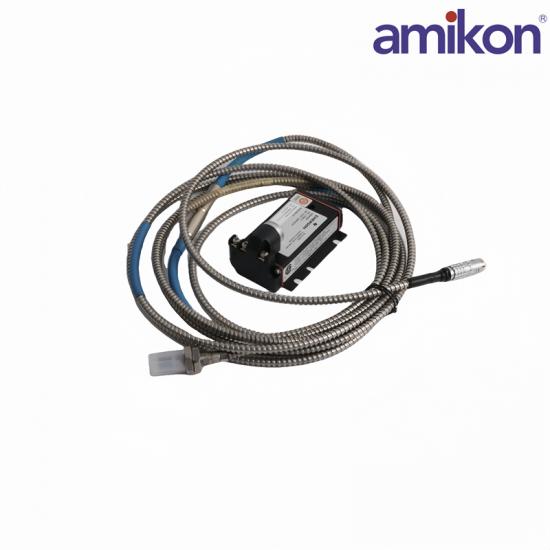

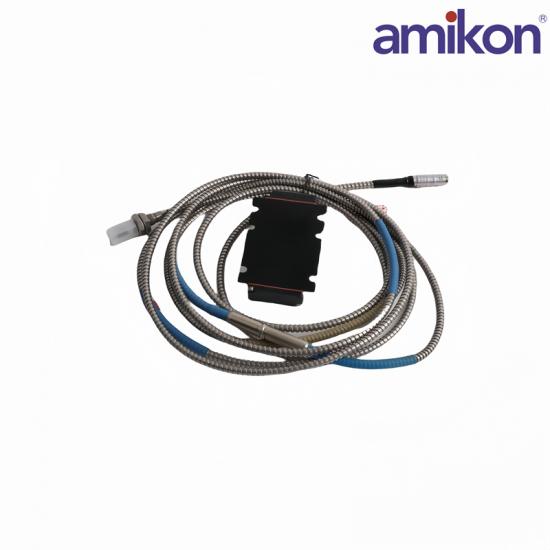

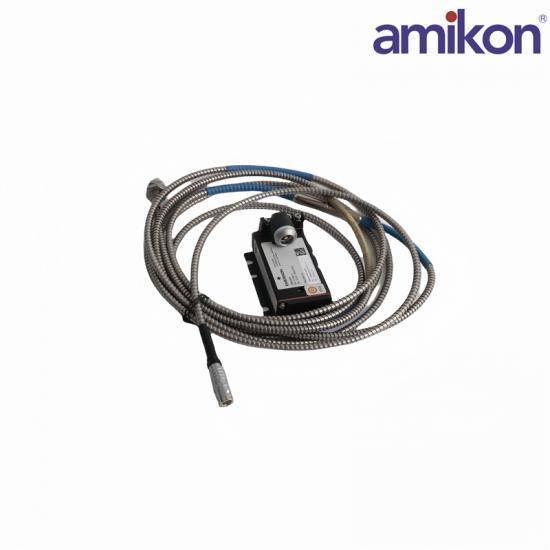

EPRO PR6423/004-120-CN CON021 Eddy Current Sensor

The EPRO PR6423/004-120-CN CON021 is an eddy current sensor used for non-contact measurement of displacement, vibration, and shaft position in rotating machinery such as turbines, compressors, and pumps.

Sensor Head (PR6423/004-120-CN)

Type: Eddy current sensor (non-contact displacement sensor)

Sensitivity: 7.87 mV/µm (millivolts per micrometer)

Linearity: ±1% of full-scale output

Frequency Range: Up to 10 kHz, allowing accurate monitoring of fast vibrations

Operating Temperature: -35°C to +180°C (sensor head), suitable for harsh industrial environments

Connection Module (CON021)

Function: The CON021 module connects the sensor head to the signal processing unit, providing power and signal conditioning.

Power Supply: Typically powered by a 24V DC supply

Output Signal: Standard 4-20 mA output or direct integration into monitoring systems via proprietary interfaces

Cable Length: Comes with various cable length options (5 to 9 meters depending on configuration)
