Description：

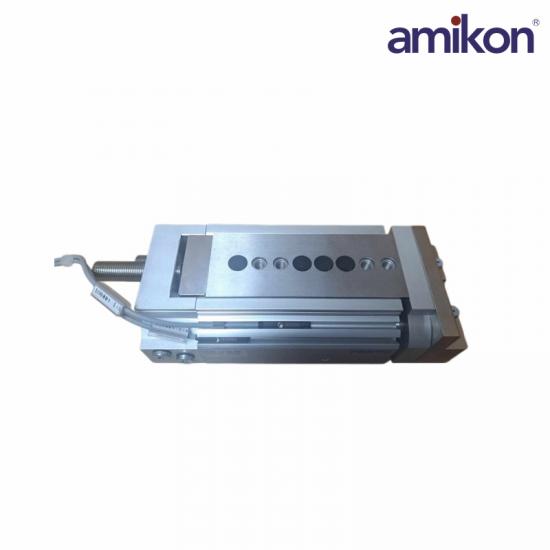

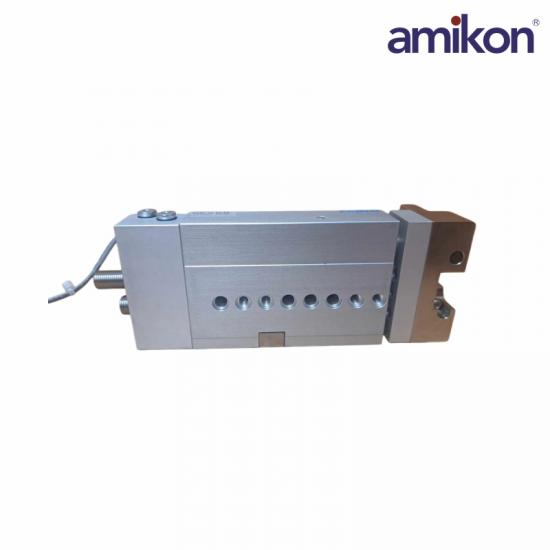

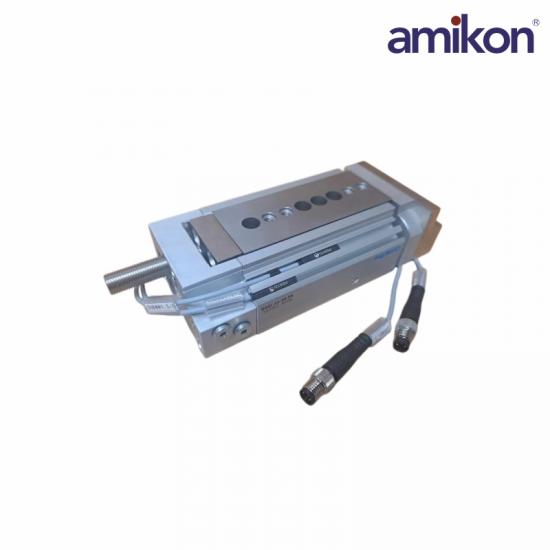

The Festo DGSL-12-30-PA Mini Slide is a compact pneumatic linear actuator designed for precise guiding and positioning tasks in automated machinery. Featuring a 30 mm stroke and a ball bearing cage guide system, it delivers smooth motion, high load capacity, and excellent repeatability. The double-acting actuator operates with compressed air pressures from 0.1 MPa to 0.8 MPa and provides theoretical forces up to 121 N at 6 bar. Its compact aluminum construction and stainless-steel piston rod make it suitable for space-constrained applications, including assembly equipment, material handling systems, electronics manufacturing, and packaging machinery. The integrated proximity-switch position detection capability further enhances control accuracy and system reliability.
Specification：
|
Part Number |
DGSL-12-30-PA |
|
Operating Pressure |
0.1～0.8 MPa（1～8 bar） |
|
Max Speed |
0.8 m/s |
|
Repetition Accuracy |
0.3 mm |
|
Operation Type |
Double-acting |
|
Ambient Temperature |
0℃～60℃ |
|
End Position Impact Energy |
0.25 Nm |
|
Cushioning Length |
1 mm |
|
Max Radial Force Fy |
1075 N |
|
Max Radial Force Fz |
1075 N |
|
Max Moment Mx |
15 Nm |
|
Max Moment My |
10 Nm |
|
Max Moment Mz |
10 Nm |
|
Return Stroke Theoretical Force @0.6 MPa(6 bar/87 psi) |
104 N |
Frequently asked questions
Q1: What is the Festo DGSL-12-30-PA used for?
A1: The DGSL-12-30-PA is a compact pneumatic mini slide used for precision linear motion, positioning, and handling applications in industrial systems.
Q2: What is the stroke length of the DGSL-12-30-PA?
A2: The DGSL-12-30-PA actuator provides a stroke length of 30 mm.
Q3: What operating pressure range does the DGSL-12-30-PA mini slide support?
A3: The DGSL-12-30-PA operating pressure range is 0.1 MPa to 0.8 MPa (1 to 8 bar).
Q4: What guide system is used in the DGSL-12-30-PA?
A4: The actuator uses a ball bearing cage guide, providing smooth movement and high positioning accuracy.
Q5: What is the DGSL-12-30-PA maximum operating speed?
A5: The DGSL-12-30-PA maximum operating speed is 0.8 m/s.
Product Applications
Electronics and Semiconductor Manufacturing: High-precision pick-and-place, assembly, PCB board material handling, and wafer transport for small electronic components.
Pharmaceutical and Packaging Industry: Precise feeding, sorting, and positioning in medical device assembly, tablet blister packaging, and reagent dispensing lines.
Automotive Parts Manufacturing: Assembly and positioning of precision components such as headlights and sensors, or execution of fixture opening and closing and belt drive.
Light Industry : X-Z axis gantry crane setup in various customized robotic arms, and workpiece pushing, pulling, and loading/unloading in automated equipment.
