Brand/Manufature:
LEINE LINDEProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

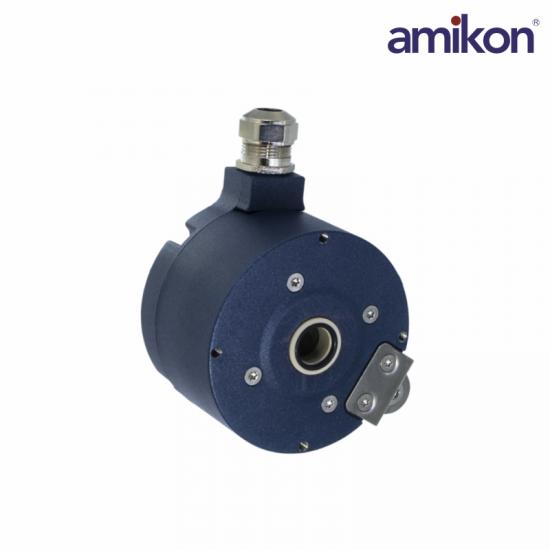

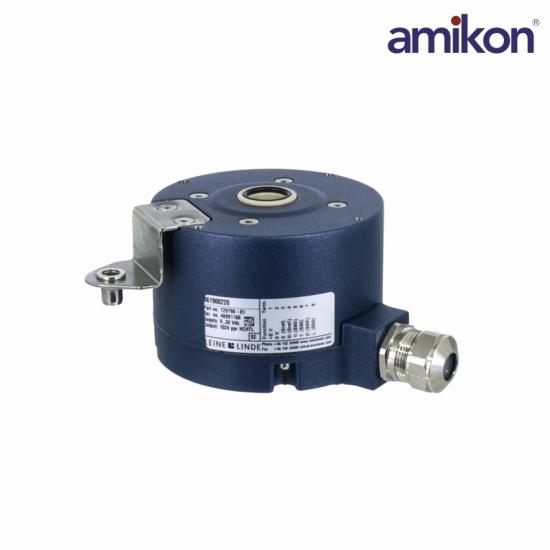

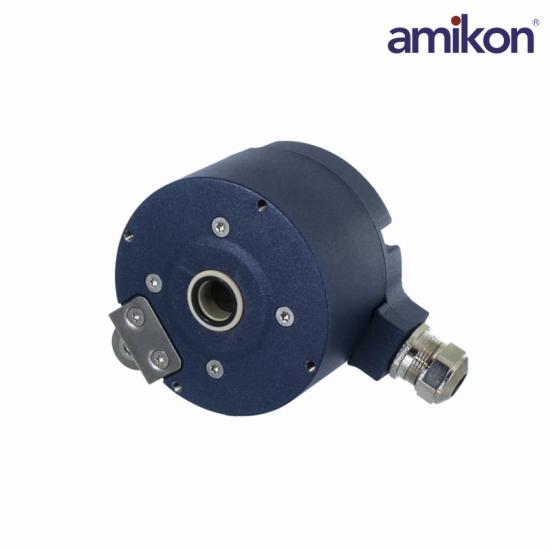

729798-01 is a heavy-duty incremental hollow shaft encoder designed for demanding industrial applications requiring precise speed and position feedback. The encoder features a rugged mechanical design with excellent resistance to vibration, shock, dust, moisture, and harsh operating conditions, making it ideal for steel mills, mining equipment, cranes, conveyors, marine systems, and other heavy industries.
The encoder utilizes a Ø16 mm blind hollow shaft and delivers a resolution of 1024 pulses per revolution (PPR). It operates from a wide 9–30 VDC power supply and provides High Current HTL (HCHTL) output signals for reliable long-distance transmission and superior noise immunity.
Specification：
|
Part Number |
729798-01 |
|
Series |
XHI 861 |
|
Shaft Specification |
016 mm blind hollow shaft |
|
Resolution |
1024 pulses per revolution (ppr) |
|
Supply Voltage |
9～30 VDC |
|
Output Type |
High Current HTL(HCHTL) |
|
Signal Channels |
6 Channel(S00,S00,S90,S90,Sref,Sref) |
|
Cable Entry |
Cable Gland (Radial direction) |
|
Mount Flange |
86-flange |
|
Torque Arm |
120° orientation |
|
Operating Temperature |
-20℃～+85℃ |
|
Vibration Resistance |
≤20 g，55～2000 Hz（IEC 60068-2-64） |
|
Shock Resistance |
≤400 g，3.5 ms（IEC 60068-2-27） |
|
Max Rotating Speed |
6000 rpm |
|
Max Incremental Output Load |
±40 mA |
|
Max Output Frequency |
200 kHz |
|
Max Cable Length |
350 m @100 kHz |
|
Phase Shift |
90 ºel ± 25 ºel |
Frequently asked questions
1. What is the 729798-01 encoder used for?
The 729798-01 is a heavy-duty incremental hollow shaft encoder used for speed measurement, position feedback, and motion control in industrial systems. It is particularly suitable for heavy industries such as steel production, mining, cranes, conveyors, and marine applications.
2. What type of encoder is the 729798-01?
The encoder is an XHI series incremental hollow shaft encoder featuring a Ø16 mm blind hollow shaft design and a resolution of 1024 pulses per revolution (PPR).
3. What is the 729798-01 operating voltage range?
The encoder operates from a wide supply voltage range of 9 to 30 VDC, making it compatible with most industrial control systems.
4. What output signal does the 729798-01 encoder provide?
The 729798-01 provides High Current HTL (HCHTL) output signals, offering excellent noise immunity and reliable signal transmission over long cable distances.
Product Applications
Iron and Steel & Metallurgical Industry: Widely used in rolling mills, continuous casting machines, and other equipment, providing precise speed and position feedback. It can withstand extreme temperature changes and severe mechanical vibrations.
Paper Making & Heavy Machinery: Due to its support for hollow shaft installation and high protection level, it is suitable for paper machine drive roller conveyors and various large-scale conveyor systems.
Crane & Port Machinery: Used in cranes, winches, and port machinery for precise positioning and safety control of hoisting and traveling mechanisms.
Mining & Heavy-Duty Motors: Capable of operating in dusty, high-impact environments such as ore mining and material handling equipment.
