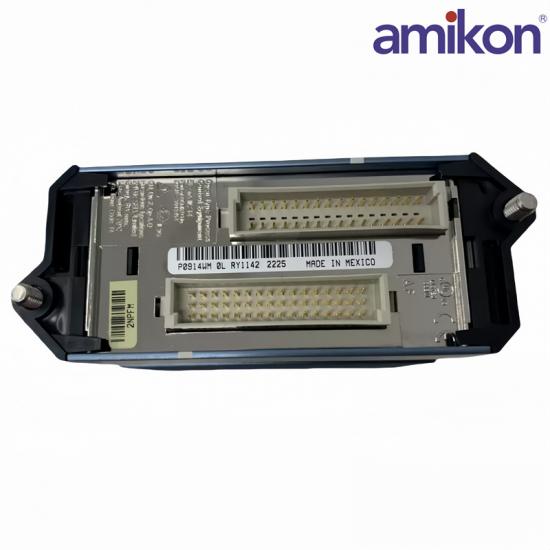

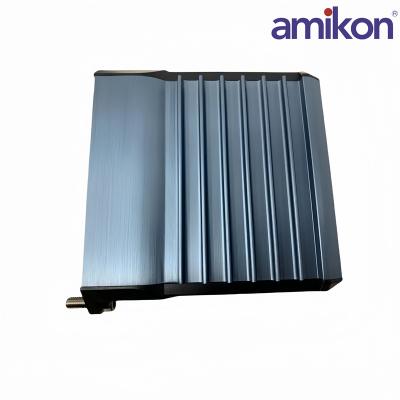

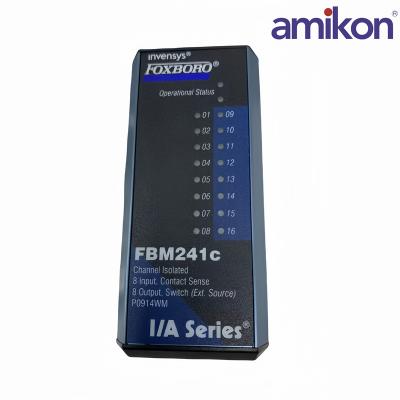

FOXBORO  FBM241C P0914WM I/O Module

The FBM241 contains eight discrete inputs and eight discrete outputs that are compatible with voltages and currents commonly found in industrial plants.

The Channel Isolated, Discrete I/O Modules (FBM241/b/c/d) have eight discrete input channels and eight discrete output channels. Associated termination assemblies (TAs) support discrete input or output signals at voltages of under 60 V dc,120 V ac/125 V dc, or 240 V ac.

Depending on the type of I/O signal required, the TAs contain current limiting devices, fuses, relays, or relay outputs with internal or external power source and fusing.

Key features of the FBM241/b/c/d modules are:

Eight discrete inputs

Eight discrete outputs

Supports discrete inputs/output signals at voltages of:

• 15 to 60 V dc

• 120 V ac/125 V dc

• 240 V ac

Each input and output is galvanically isolated:

group isolated when used with external excitation Compact, rugged design suitable for enclosure in Class G3 (harsh) environments program, with the following configurable options:

Input Filter Time, Fail Safe Configuration, FailSafe Fall Back, and Sustained or Momentary

Outputs

Various Termination Assemblies (TAs) that contain:

• Current limiting devices

• Fuses

• Relay outputs

• Relay outputs with internal or external power

source and fusing

• Solid state outputs.
