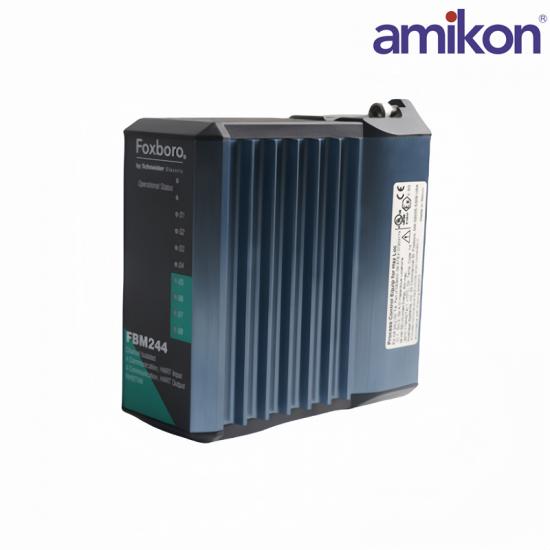

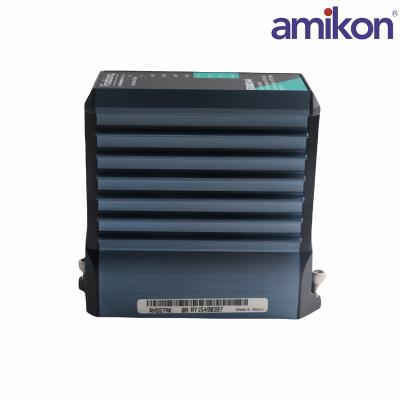

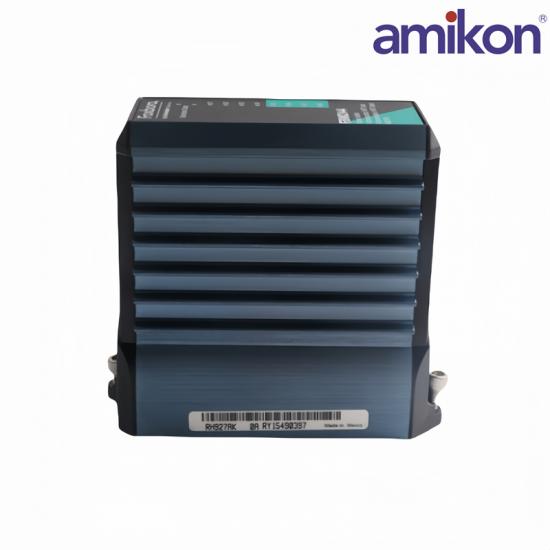

FOXBORO  FBM244 RH927AK I/O Module

The FBM244 provides four input and four output communications channels, each is galvanically isolated

from the others. The channels are capable of communicating HART® messages and are electrically

compatible with 4 to 20 mA signals.

The FBM244 module contains four 0 to 20 mA galvanically isolated analog input and output channels (eight total). The FBM244 supports any mix of standard 4 to 20 mA devices and HART devices. Each input channel accepts an analog sensor input such as a 4 to 20 mA transmitter or a self-powered 20 mA source. Each output channel drives an external load and produces a 0 to 20 mA output.

The module performs the signal conversion required to interface the electrical input/output signals from the field sensors and actuators to the redundant Fieldbus.

This module executes the analog I/O application program. The configurable options for this program are Fail-Safe Configuration (Hold/Fallback), Analog Output Fail-Safe Fallback Data, (on a per channel basis), Fieldbus Switching Enable and Fieldbus Switching Time. The module does not provide DPIDA support.

The FBM244 module has a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments (Class G3) per ISA Standard S71.04.

The modules mount on a modular baseplate or conversion mounting structure which accommodates up to four or eight FBMs. The modular baseplate is either DIN rail mounted or rack mounted, and includes signal connectors for redundant fieldbus, redundant independent dc power, and termination cables.
