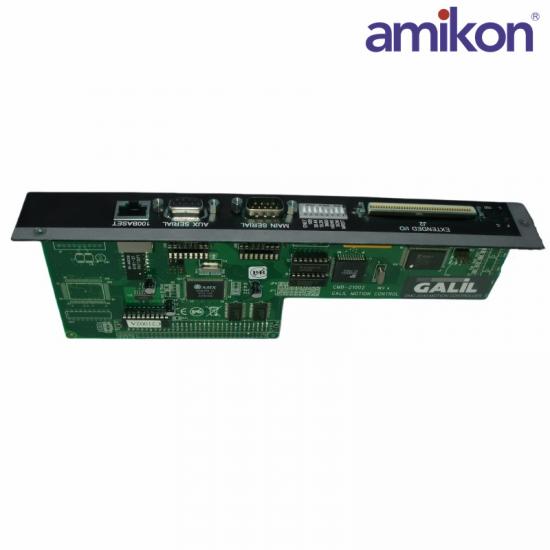

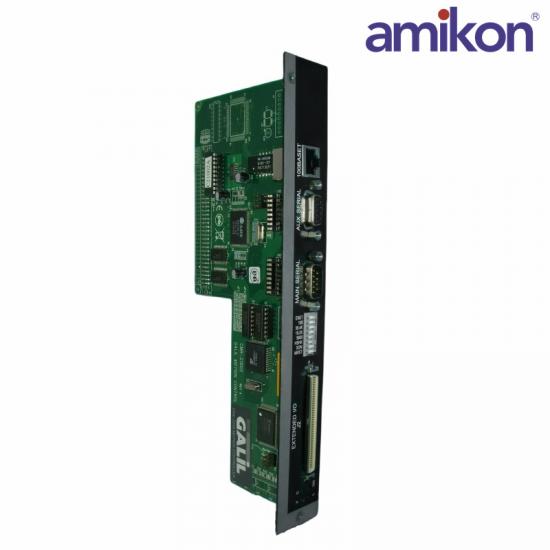

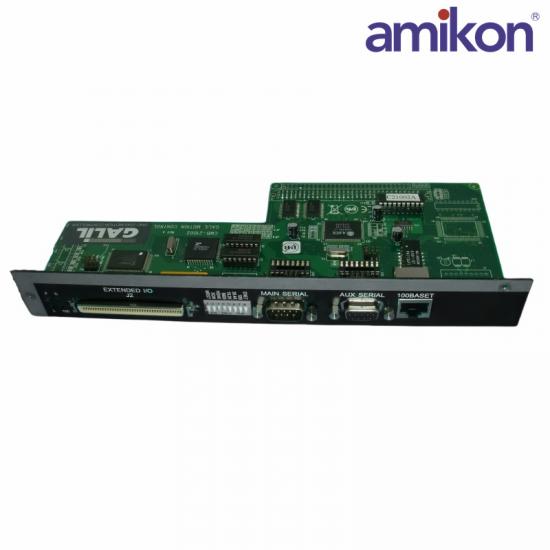

The GALIL DMC-2240 is a multi-axis motion controller designed for high-performance motion control applications. Part of Galil’s DMC-2000 series, this model is suitable for controlling up to four axes of motion in applications such as CNC machinery, robotics, systems, and manufacturing processes. It offers precise control for various motor types, including stepper, servo, and linear motors, and supports advanced features like coordinated motion, contouring, and PLC functionality.

Model: DMC-2240

Series: DMC-2000

Type: Multi-Axis Motion Controller

Axes Supported: Up to 4 axes (configurable for servo or stepper motors)

Application: Designed for use in CNC, robotics, and other precision motion control applications requiring synchronized, high-performance control.

DMC-2240 Input Power Supply:18-36 VDC

Control power input (for drives): Varies depending on the type of motor drive used.

DMC-2240 Encoder resolution up to 32-bit.

Digital I/O: Configurable digital inputs/outputs for general-purpose use, limit switches, home switches, etc.

Analog Inputs: 8 channels, ±10 V for external sensors or control signals.

Motor Types Supported: Servo, stepper, linear, and voice coil motors, offering versatility across applications.

Position: High-precision positioning with support for absolute and incremental moves.

DMC-2240 Servo Loop Update Rate: Up to 32 kHz, providing high responsiveness for real-time control.

Ethernet: 10/100Base-T Ethernet for network-based control and data exchange.

RS232/RS422 Serial Port: Serial communication for point-to-point setups.

Protocols Supported: Standard TCP/IP protocols for Ethernet and standard serial communication protocols.

Typical dimensions: Approximately 5.0 x 7.0 inches, allowing efficient use of space.

DMC-2240 Weight: Lightweight, typically under 1 kg.

Operating Temperature: 0°C to +70°C, suitable for most industrial environments.

Storage Temperature: -40°C to +85°C.

Humidity: 10-90% non-condensing.
