Description：

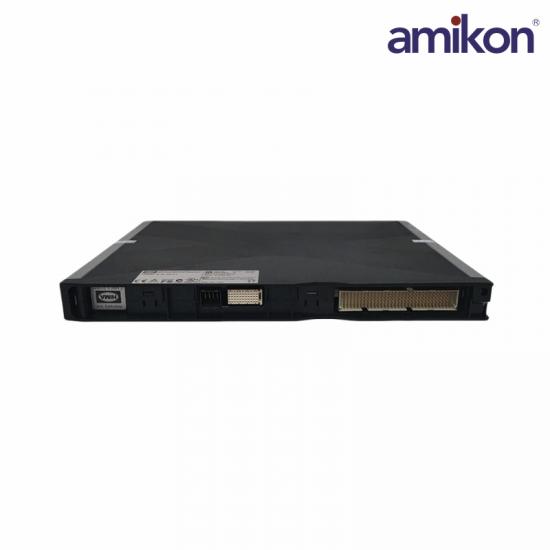

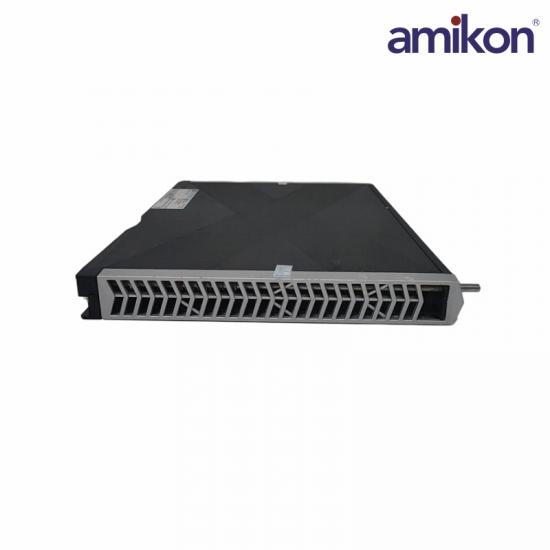

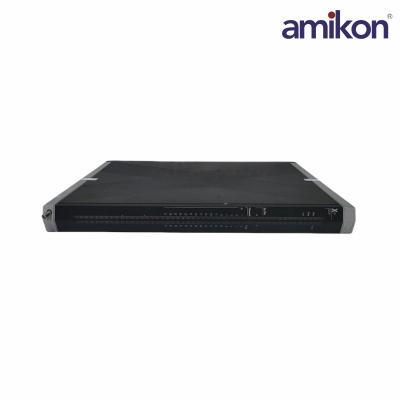

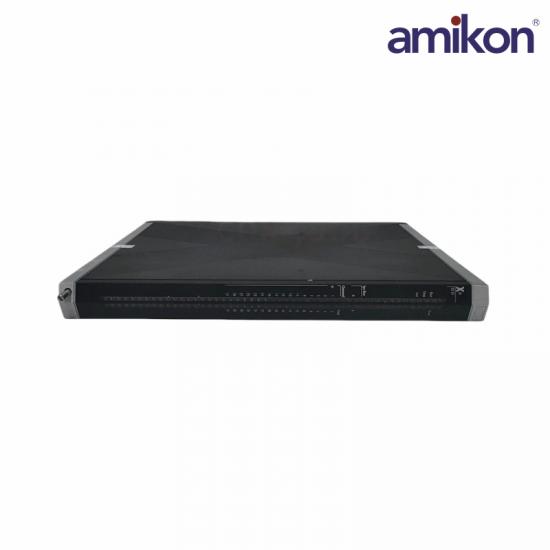

The X-AI3201 analog input module is intended for use in the programmable electronic system(PES) HIMax.

The module is inserted into any of the base plate slots with the exception of the slots reserved for system bus modules. For more information, refer to the System Manual (HI 801 001 E).

The module is used to evaluate up to 32 analog input signals.

The module is TÜV-certified for safety-related applications up to SIL 3 (IEC 61508, IEC 61511 and IEC 62061), Cat. 4 and PL e (EN ISO 13849-1).

Specification：

Frequently asked questions

Q1: What is the HIMA HIMAX X-AI3201?

A1: The X-AI3201 is an analog input module for HIMA HIMAX safety systems, designed to acquire and process multiple analog signals from transmitters in safety-critical applications.

Q2: What is the X-AI3201 supply voltage?

A2: The X-AI3201 module operates on 24 VDC.

Q3: How many transmitter supplies are available?

A3: It provides up to 32 transmitter supplies for connected sensors.

Q4: What is the X-AI3201 operating current range?

A4: The X-AI3201 module supports an operating range of 0…22.5 mA.

Q5: What is the X-AI3201 digital resolution?

A5: It features 12-bit digital resolution for precise signal measurement.

Product Applications

Petroleum and natural gas plants: Used for monitoring the pressure, liquid level, and flow rate of refineries and offshore platforms, supporting fire and gas protection systems (F&G) and emergency shutdown systems (ESD).

Chemical and petrochemical plants: Real-time monitoring of key reaction parameters in low-density polyethylene (LDPE) production and fine chemical processes to prevent overpressure or chemical leakage.

Power generation facilities: Applied to the monitoring of cooling water temperature, steam pressure, and radiation levels in nuclear power and conventional power stations, as part of the core safety protection system.

Pharmaceutical and bioengineering: Monitoring temperature and pressure in aseptic production environments to ensure the safety and compliance of the production environment.

Heavy industry and mining: Responsible for monitoring ventilation airflow, gas concentration, and the vibration of key equipment, effectively reducing the risks of mine operations.

Water treatment and environmental engineering: Monitoring chemical dosing and tank liquid levels to prevent overflow from causing environmental pollution.
