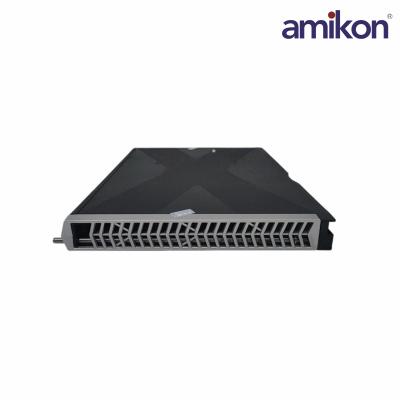

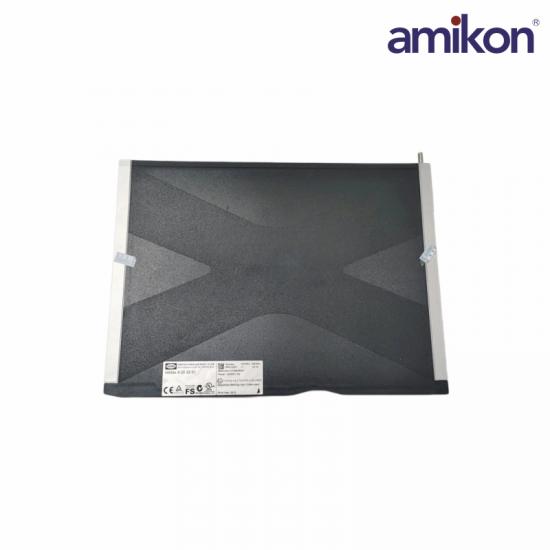

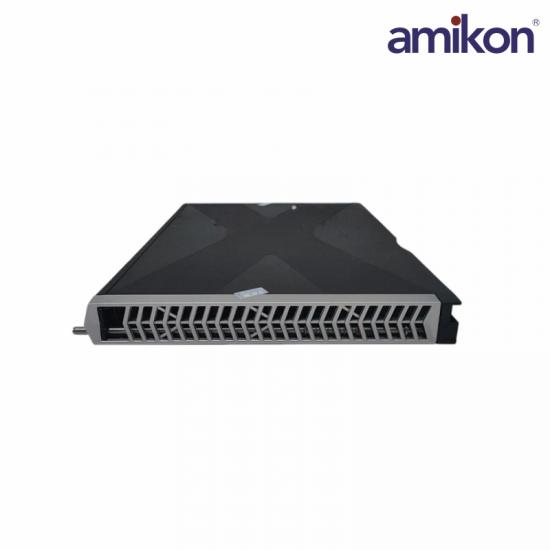

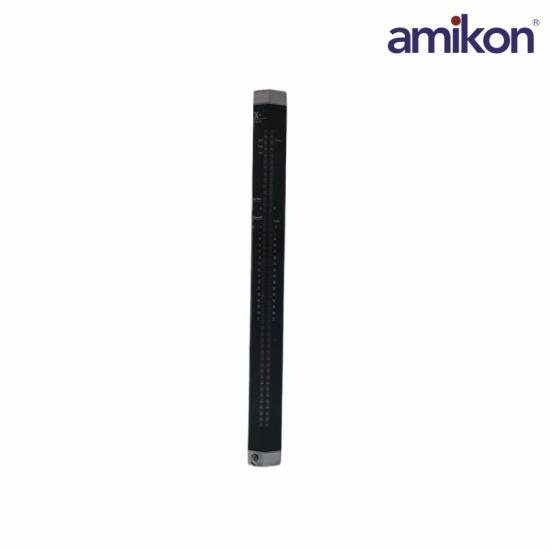

The HIMAX X-DI3201 digital output module is intended for use in the programmable electronic system (PES) HIMax.
The module can be inserted in any of the base plate slots with the exception of the slots reserved for system bus modules. For more information, refer to the System Manual (HI 801 001 E).
The module is equipped with 32 digital outputs that can be loaded with a nominal current of up to 0.5 A per channel. With high level, a voltage equivalent to the supply voltage is present on the corresponding output.
Specification：
|
Supply voltage |
24 VDC, -15 %…+20 %, rP ≤ 5 %, SELV, PELV |
|
Current input min. |
0.5 A (idle) |
|
Continuous load max. |
12 A at 24 VDC |
|
Operating temperature |
0…+60 °C |
|
Storage temperature |
-40…+85 °C |
|
Humidity |
max. 95 % relative humidity, non-condensing |
|
Type of protection |
IP20 |
|
Voltage drop (with high level) |
1.3 V at 0.75 A output current |
|
Nominal rated current (with high level) |
0.5 A, range 0…0.6 A |
|
Total current permitted for the module |
12 A |
|
Leakage current (with low level) |
20 µA |
|
Current limiting in the event of short-circuit |
2 A, each channel |
|
Inductive load |
10 H |
|
Capacitive load |
100 µF |
|
Lamp load (24 V) |
4 W |
|
SC Limit |
0.8 A, range 0.8…0.85 A |
|
Dimensions (H × W × D) |
310 × 29.2 × 230 mm |
|
Weight |
approx. 1.1 kg |
Frequently asked questions
Q1: What is the HIMA HIMAX X-DI3201?
A1: The X-DI3201 is a digital input module for HIMA HIMAX safety systems, designed to receive and process discrete signals from industrial sensors and switches.
Q2: What is the X-DI3201 minimum current input?
A2: The X-DI3201 module requires a minimum idle current of 0.5 A.
Q3: What is the X-DI3201 maximum continuous load?
A3: The X-DI3201 module supports up to 12 A continuous load at 24 VDC.
Q4: What is the X-DI3201 operating temperature range?
A4: It operates between 0°C and +60°C.
Q5: What is the X-DI3201 total current permitted for the module?
A5: The X-DI3201 maximum total current for the module is 12 A.
Product Applications
Oil & Gas: Emergency shutdown (ESD) systems used in refineries, LNG terminals, and offshore platforms.
Chemical & Petrochemical: Integrated into production lines, monitoring pressure or temperature switches of reaction vessels to ensure triggering of safety status when exceeding thresholds.
Power Generation: Responsible for critical interlocks and protection functions in nuclear power plants and large thermal power plants.
Industrial : Applicable to complex production lines, responsible for capturing real-time signal changes and performing redundant processing.
