Manufacturer/Brand：Honeywell

Product type：United States

Part Number：10001/R/1

Shipping Term：TNT DHL FEDEX EMS UPS

Dimensions ：3.8 cm x 14.0 cm x 21.1 cm

Weight:：0.3 kg

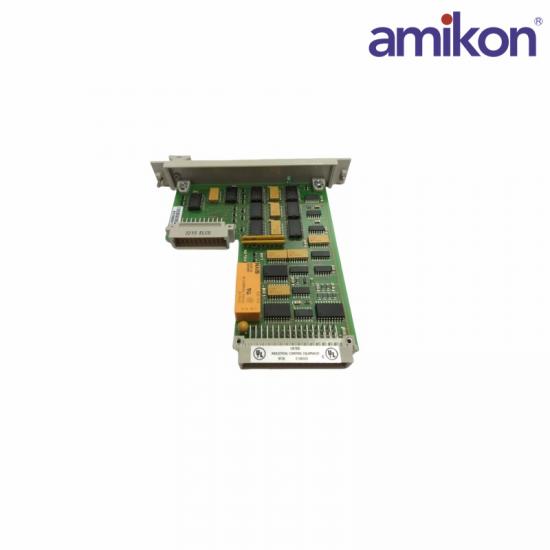

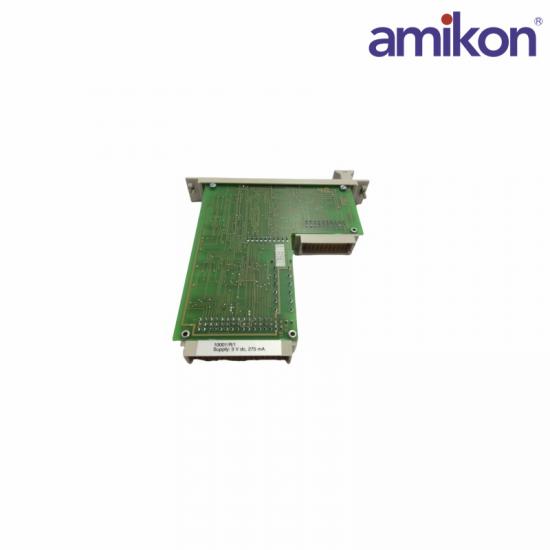

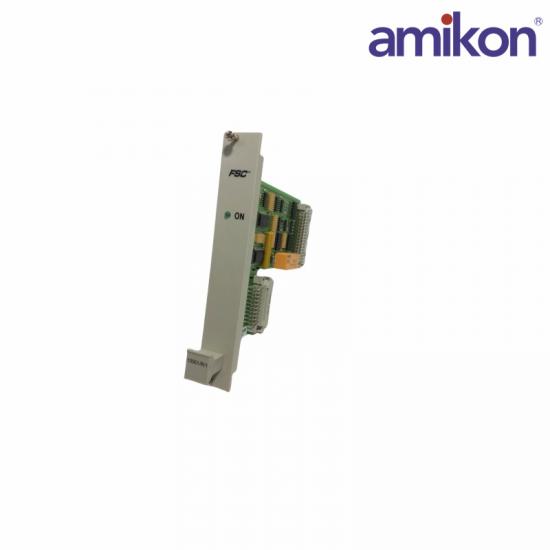

The Honeywell 10001/R/1 Vertical Bus Driver is a component used in Honeywell's industrial control systems, particularly in systems that utilize a rack-mounted architecture. Its primary role is to facilitate communication between different modules within the control system by driving signals across the vertical bus connections.

 Acts as an intermediary to drive and manage data signals across vertical bus connections in a control rack or enclosure. It ensures reliable communication between various system modules that are connected through these vertical buses.

 Designed for use with specific Honeywell control systems and modules that use vertical bus architecture.

 The Vertical Bus Driver should be installed in the designated slot within the control rack or cabinet. Ensure it is securely seated and properly aligned with the vertical bus connections.

 Connect the bus driver to the vertical bus and other modules according to the provided wiring diagram. Proper connections are crucial for effective communication across the bus.

Follow the guidelines in the installation and user manual to configure the bus driver if necessary. This may involve setting specific parameters or ensuring that it is properly integrated with the connected modules.
