Output Points: 64 points

Isolation Method: Photo coupler isolation

Rated Load Voltage: DC 12 / 24 V

Load Voltage Range: DC 10.2 – 26.4 V

Maximum Load Current: 0.1 A per point, 2 A per COM

Off-State Leakage Current: 0.1 mA or less

Maximum Inrush Current: 0.7 A / 10 ms or less

Maximum Voltage Drop (On-State): DC 0.2 V or less

External Connection Method: 40-pin connector × 2 ea

Applicable Cable Size: 0.3 mm²

Weight: 0.15 kg

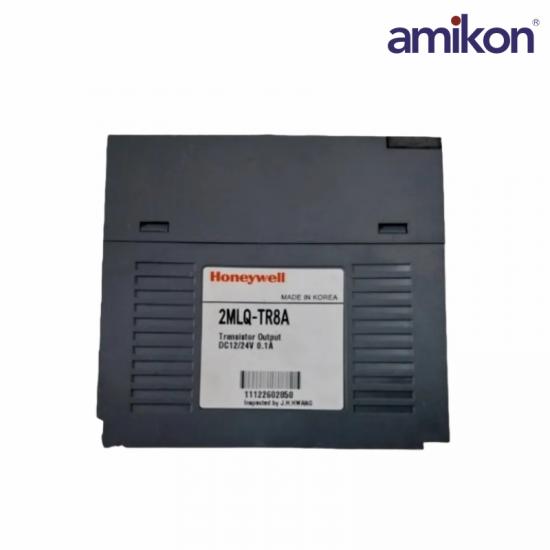

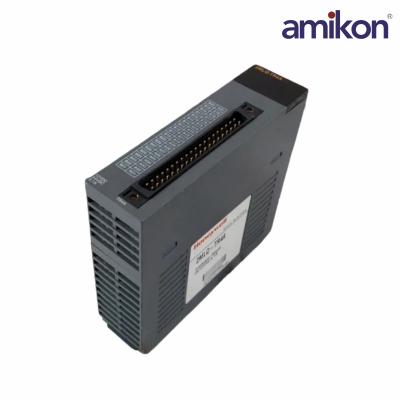

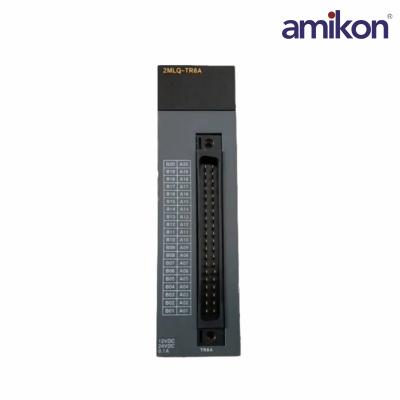

The Honeywell 2MLQ-TR8A is a high-density 64-point transistor output module (sink type) engineered for use with the MLC200 modular PLC system. It is intended for switching a large number of DC loads (12 / 24 V DC) through transistor outputs with photo-coupler isolation, offering fast response times and compact module design. This 2MLQ-TR8A module provides reliable digital output control for machine , process systems, and distributed I/O installations where many channels are required in a limited rack space. Clear LED status indicators on each channel support easy diagnostics of output operation. With its 64-point configuration, it is a cost-effective choice when multiple outputs are required but load currents are moderate.
