Manufacturer/Brand：Honeywell

Product Package：Serial Interface

Part Number：CC-PDIS01 51405042-175

Shipping Term：TNT DHL FEDEX EMS UPS

Dimensions ：5.5cmx16cmx14.5cm

Weight:：0.36kg

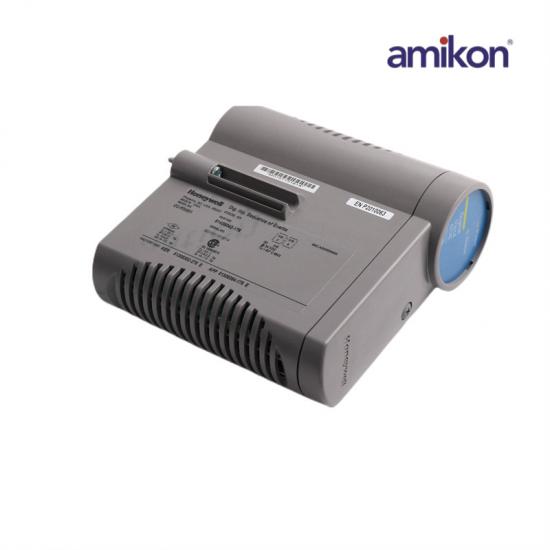

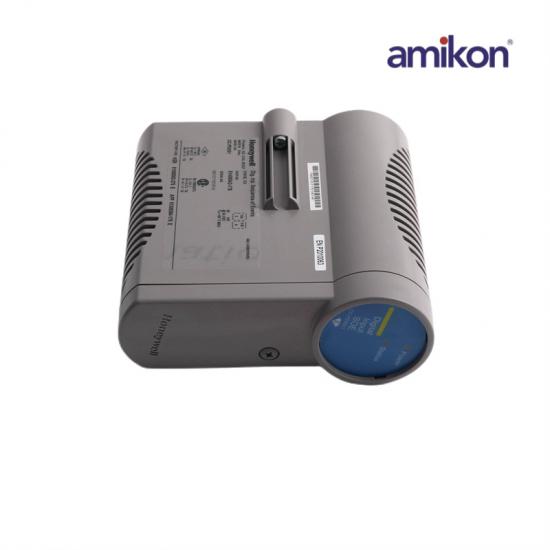

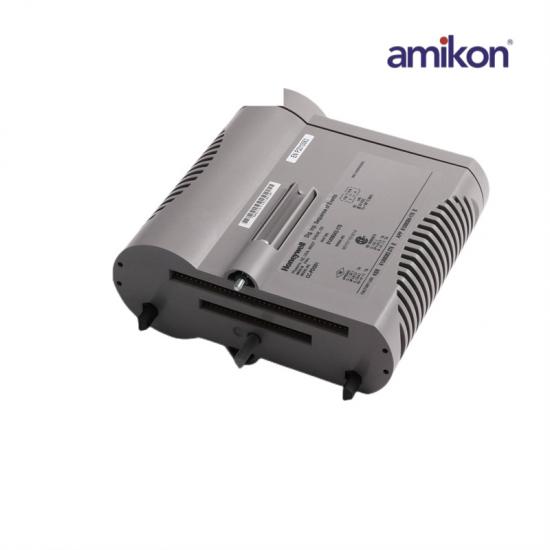

The Digital Input Sequence of Events (DISOE) accepts 24VDC discrete signals as discrete inputs. The inputs can be time tagged to support 1ms resolution Sequence of Events.

Notable Features

• Three modes of operation:

• Normal (20ms PV scan)

• Sequence of Events (1ms resolution SOE, 20ms PV scan)

• Low Latency (5ms PV scan)

• Extensive internal diagnostics for data integrity

• Open Wire Detection (in Normal mode only)

• Optional redundancy

• Internal or external field power selection

• On board excitation power (no need for marshalling power)

• Supplies Non-incendive field power

• Direct / Reverse Input Indication

• Galvanic Isolation

Open-Wire Bad PV Detection

This Series C IO function will be able to detect and annunciate an open field wire. In addition, a seemingly valid PV from a channel diagnosed as having an open wire will provide a status of “invalid” (thus preventing incorrect control action).
