Description：
The CSNK500M is a current transducer based on the principle of magnetic compensation. It provides electronic measurement of DC, AC or pulsed currents, and their combinations, with galvanic isolation between the primary (high current) and secondary circuits.

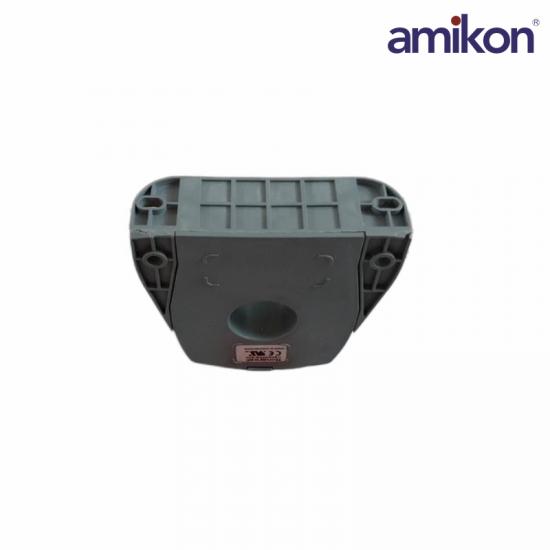

The Honeywell CSNK500M-600 Current Transformer Sensor is a high-precision device designed for accurate current flow measurement in various electrical systems. Ideal for industrial and commercial applications, this sensor ensures reliable performance and long-term durability.
This cutting-edge sensor from Honeywell ensures accurate and reliable readings. The CSNK500M 600 is essential for electrical systems requiring precise current monitoring. Its lightweight design and durable construction make it easy to install and depend on for consistent performance.
Specification：
|
Model Number |
CSNK500M-600 |
|
Nominal Current (In) |
500 A.t rms |
|
Continuous Measuring Range |
0 to ±1200 A.t |
|
AC Peak Measuring Range |
0 to ±1275 A.t |
|
Turns Ratio |
1 / 5000 |
|
Accuracy at +25°C |
Max. ±0.5% of In |
|
Supply Voltage |
±15 to ±18 Vdc (±5%) |
|
Galvanic Isolation |
6 kV rms / 50 Hz / 1 min |
|
Zero Offset Current at +25°C |
Better than ±0.2 mA |
|
Thermal Drift of Offset Current (0°C–70°C) |
Better than ±0.3 mA |
|
Linearity |
Better than ±0.1% |
|
Response Time |
Better than 1 µs |
|
Bandwidth |
DC to 100 kHz |
|
dI/dt |
Better than 50 A/µs |
|
Operating Temperature |
-40°C to +85°C |
|
Storage Temperature |
-40°C to +90°C |
|
Current Consumption |
20 mA plus output current |
|
Secondary Internal Resistance (@ +70°C) |
50 Ω |
Frequently asked questions
Q1: What is the Honeywell CSNK500M-600?
A1: It is a closed-loop current transducer designed for accurate current measurement and electrical isolation in industrial power and control systems.
Q2: What is the CSNK500M-600 nominal current rating of this transducer?
A2: The CSNK500M-600 nominal current rating (In) is 500 A·t rms.
Q3: What is the CSNK500M-600 continuous measuring range?
A3: The CSNK500M-600 continuous measuring range is 0 to ±1200 A·t.
Q4: What is the CSNK500M-600 AC peak measuring range?
A4: The CSNK500M-600 AC peak measuring range is 0 to ±1275 A·t.
Q5: What is the CSNK500M-600 operating temperature range?
A5: The CSNK500M-600 transducer operates within a temperature range of −40°C to +85°C.
Product Applications
Motor Control and Drive: For current feedback in variable frequency drives (VFDs), ensuring smooth motor operation.
Power System: Integrated in uninterruptible power supplies (UPS), switching power supplies, and telecommunications power supplies for current monitoring.
Industrial and Robotics: For precise force/current control in industrial process control systems and robot joints.
Energy Management: Monitoring charging and discharging currents in battery management systems (BMS), photovoltaic inverters, and power meters (watt meters).
Welding Equipment: Monitoring welding current to ensure consistency in welding processes.
