Brand Name: HONEYWELL

Model Number:FC-DCOM-232/485 FS-DCOM-232/485

Input Voltage: 5V DC ±5%

Input Current: Max 5000 mA(supplied by the Control Processor(s))

RS232 Output: According to EIA/TIA-232 levels

RS232 Baud Rate: O-250 kBaud

RS485/422 Output: According to EIA/TIA-485-Alevels

RS485/422 Baud Rate: 0-2 MBaud(transparent,FM0,FM1, or Manchester coded)

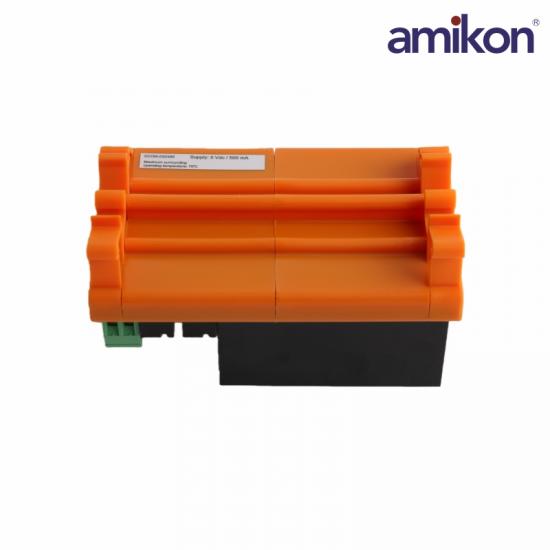

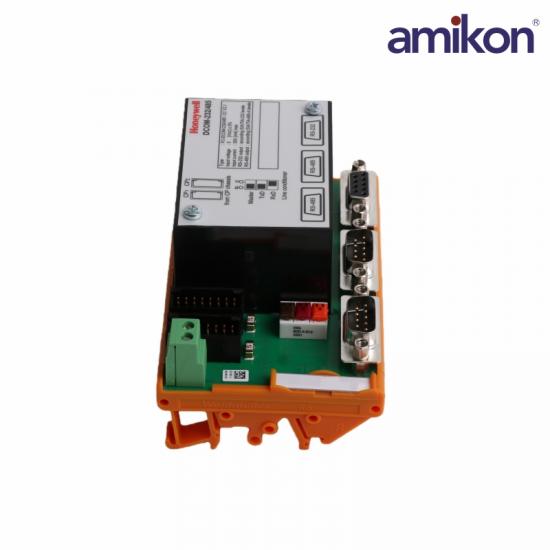

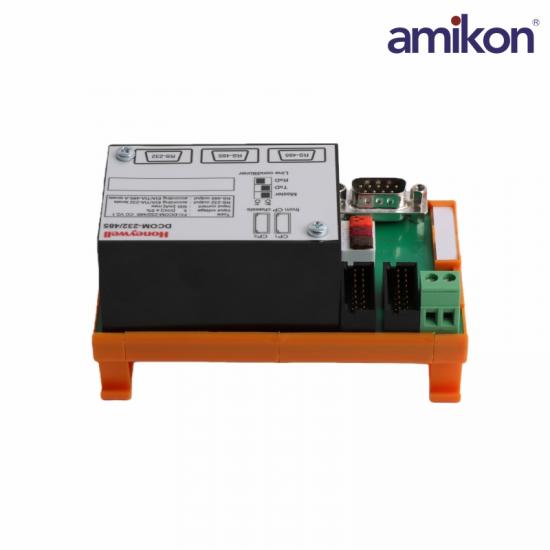

The Honeywell FC-DCOM-232/485 FS-DCOM-232/485 is a communication interface module for the FS series of processcontrollers. It provides RS-232 and RS-485 communication ports that can be used to connect the controllerto a variety of devices, such as computers, printers, and other controllers. The FS-DCOM-232/485 isdesigned for use in demanding industrial applications. It is constructed from rugged materials andfeatures a number of protection features, including overvoltage protection, overcurrent protection, andshort circuit protection.

The FS-DCOM-232/485 is easy to install and maintain. It has a DIN rail mount and a pluggable terminalblock. The FS-DCOM-232/485 also has a number of LEDs that indicate the status of the communicationports.

Frequently asked questions：

Q: What is the input voltage requirement for the Honeywell FC-DCOM-232/485 module?

A: The module requires 5 V DC ±5%, which is supplied by the system control processor.

Q: What is the FC-DCOM-232/485 FS-DCOM-232/485 maximum input current of the module?

A: The maximum input current is 5000 mA.

Q: What communication interfaces are supported by this module?

A: The FC-DCOM-232/485 FS-DCOM-232/485 module supports RS232 and RS485 serial communication interfaces.

Q: What standard does the RS232 output follow?

A: The RS232 output follows EIA/TIA-232 signal level standards, ensuring compatibility with standard serial devices.
