➱FC-PDB-0824P Power Distribution Board

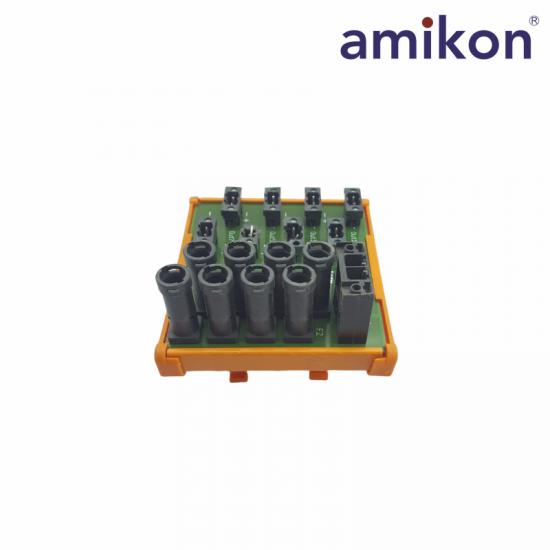

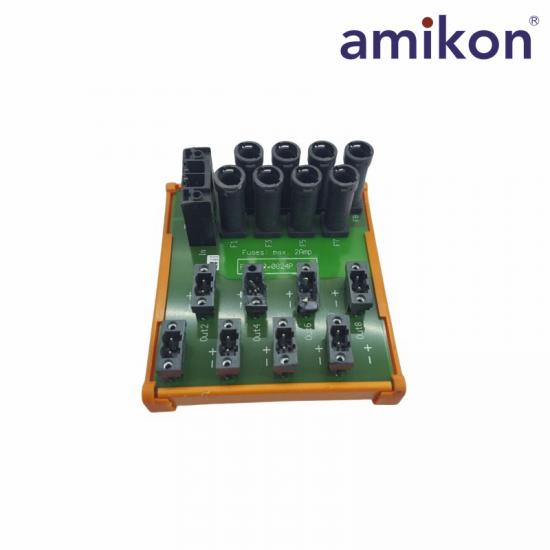

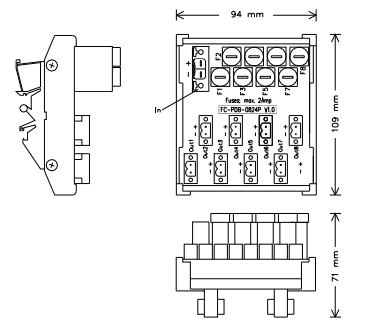

The PDB-0824P power distribution board enables easy distribution of 24Vdcfrom the main power rail to individual 24Vdc devices inside the cabinetenclosure, such as fan units and FTAs.Figure 500 on page 796 shows the PDB-0824P board with one 24Vdc entryconnector (In) for connection to the main bus bar and eight (2 Amp fused) 24Vdcfield connectors (Out1 thru Out8) for connection to eight 24Vdc devices.

A 24 Vdc power distribution cable (see data sheet “PDC-MB24-y” on page 814for details) can be used to connect the main power bar to In.

• When using other connection cables make sure the wire size is adequate and aWeidmuller BVZ 7.62HP/02F SN connector with two keying pins is used toconnect to In of the PDB-0824P

• When using other connection cables make sure the wire size is adequate and aWeidmuller BLZ 5.08/2F SN SW or equivalent connector

Discounted price will be support if you buy big quantity of FC-PDB-0824P
