➱Honeywell FS-PDB-CPX05 Power Distribution Board

Manufacturer : Honeywell

Part Number : FS-PDB-CPX05

HN Module: Power Distribution Board Controller Cabinet

Approvals: CE, UL, TUV, CSA

Connectors Type: 4 pos, action pin, header

Module dimensions: 190 × 70 × 46 mm (L × W × H)

DIN EN rails: TS32 / TS35 × 7.5

Used rail length: 191 mm (7.52 in)

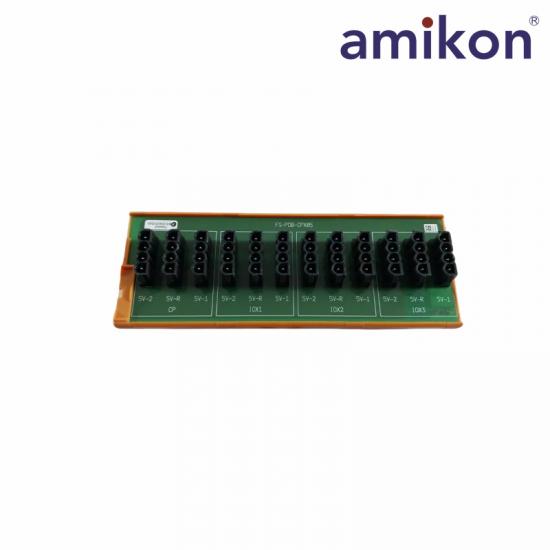

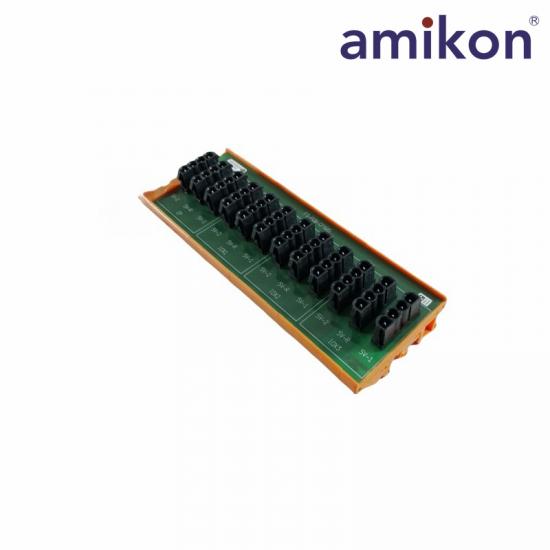

The PDB-CPX05 power distribution board for controller cabinets is a board thatenables the distribution of the 5V and watchdog signals of the Controller chassisto more than one IO extension cabinet.

Power Distribution Cables from the Controller chassis (see “PDC-CPX05” onpage 844) are placed on the three connectors (‘5V-2’, ‘5V-R’ and ‘5V-1’) insection ‘CP’.Power Distribution Cables to the first IO extension cabinet (see “PDC-IOX05-x”on page 842) are placed on the three connectors (‘5V-2’, ‘5V-R’ and ‘5V-1’) insection ‘IOX1’.

Discounted price will be support if you buy big quantity of FS-PDB-CPX05
