Description：

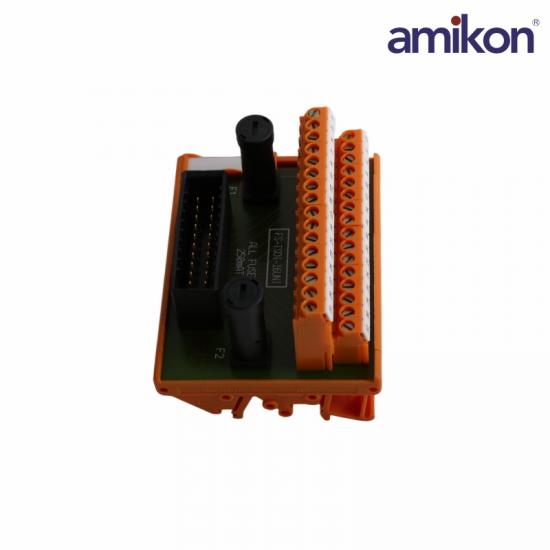

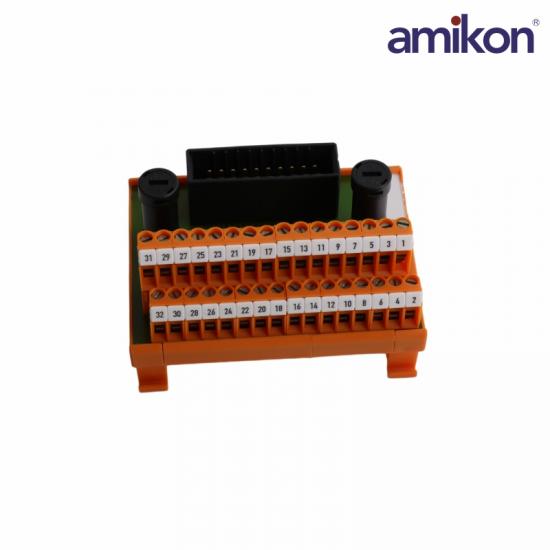

The FS-TRO-0824 module is a field termination assembly (FTA) designed to interface between the systeminterconnection cable (SICC-0001/Lx) and external field wiring through screw terminals. It features eightnon-safe, potential-free relay changeover contacts (NO/NC), each with a status indicator LED showing theenergized state of the relay. The FS-TRO-0824 module connects to up to eight channels via the system interconnectioncable, which plugs into the SIC connector on the FTA and connects to a redundant pair of FS-TRO-0824 modules.

Specification：

Frequently asked questions

Q1: What is the HONEYWELL FS-TRO-0824?

A1: It is a digital output module designed for Honeywell control and safety systems, used to drive field devices such as relays, solenoids, and actuators.

Q2: Where is this FS-TRO-0824 module typically used?

A2: It is commonly used in industrial , process control systems, and safety applications requiring high-current digital outputs.

Q3: How many output channels are available?

A3: The FS-TRO-0824 module provides 8 digital output channels.

Q4: What is the FS-TRO-0824 maximum output current?

A4: Each channel can support up to 5 A maximum output current.

Q5: What is the FS-TRO-0824 primary function of this module?

A5: It converts control signals into high-power digital outputs to operate field devices reliably.

Product Applications

Electric power industry: Used for control of power generation units, safety monitoring of substations and emergency shutdown systems (ESD).

Oil and gas / Chemicals: Responsible for high-reliability process control in refineries and chemical plants, preventing accidents such as overpressure and leakage, and implementing safety interlock protection.

Steel and metallurgy: Applied in blast furnaces, aluminum smelting machines and non-ferrous metal smelting processes for combustion control systems and safety protection.

Mechanical and equipment manufacturing: Applied in lifting equipment, construction machinery, textile machinery and industrial robot control systems with strict requirements for personal safety.
