Display Size: 5.6 inches (TFT LCD)

Display Resolution: 640 × 480 pixels (VGA)

Display Colors: 65,536 colors (16-bit)

Memory: Built-in flash memory and SRAM

External Storage: SD memory card slot for data storage and backup

Power Supply Voltage: 24 V DC (±10%)

Power Consumption: 15 W

Communication Interfaces:

1 × Ethernet port (10/100 Mbps)

2 × Serial ports (RS-232C / RS-422 / RS-485 selectable)

1 × USB Host port for data export or connection of peripheral devices

1 × USB Device port for programming and communication

Operating Temperature: 0 °C to +50 °C

Storage Temperature: –20 °C to +60 °C

Relative Humidity: 10% to 90% (non-condensing)

Vibration Resistance: 10–25 Hz, 0.5 mm amplitude

Shock Resistance: 10 m/s², 16 ms duration

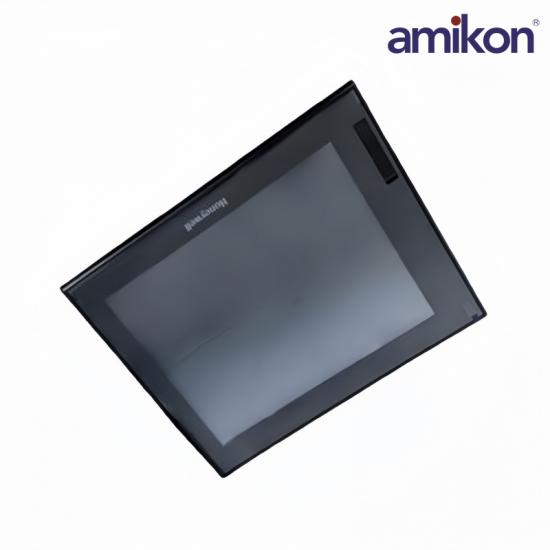

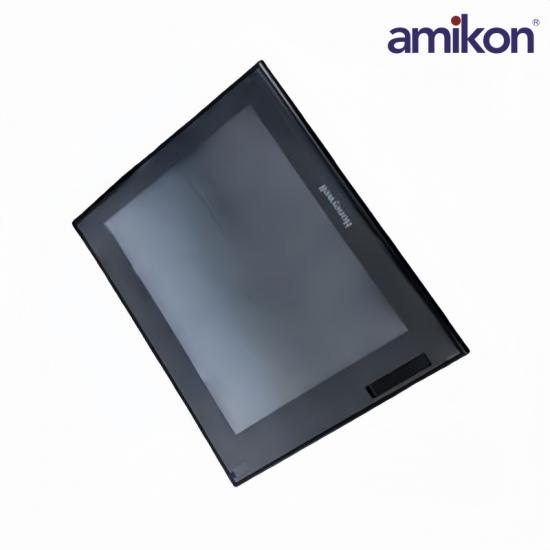

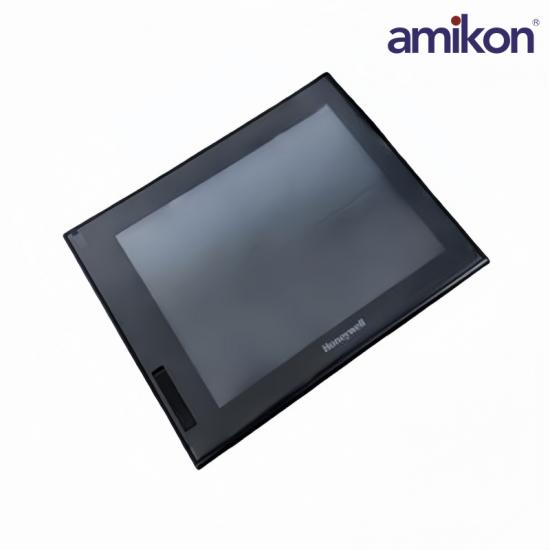

The Honeywell HCiRX05-TE-FD-NC is a 5.6-inch colour TFT LCD touchscreen operator interface (HMI) designed for industrial control systems. It belongs to the HCiR/HCiX family of controller/operator interfaces, intended to provide a robust, flexible user interface for interacting with controllers, DCS/PLC systems, and field instrumentation. This model supports multiple communication protocols (serial, Ethernet, USB), offers intuitive graphical display capabilities, and is built for harsh industrial environments with panel-mounting, tough front bezel and reliable performance.
