Screen Size: 8.4 ”

Resolution: 800 x 600

Display Type: TFT LCD, 16M colors

Brightness: 350 cd / m2

Touch Type: Analog resistive

Touch Resolution: 800 x 600

CPU: 32-bit RISC processor

Flash Memory: 128 MB

Operating Voltage: 24 V DC (DC 20–28 V)

Power Consumption: Max. 15 W

Operating Temperature: –10 °C to +50 °C

Storage Temperature: –20 °C to +60 °C

Ambient Humidity: Below 85% RH (non-condensing)

Front Panel Protection: IP65F

Insulation Resistance: 10 MΩ (500 V DC)

Grounding: Class 3 (under 100 Ω)

Noise Immunity: 1000 Vp-p(pulse width 1 μs)

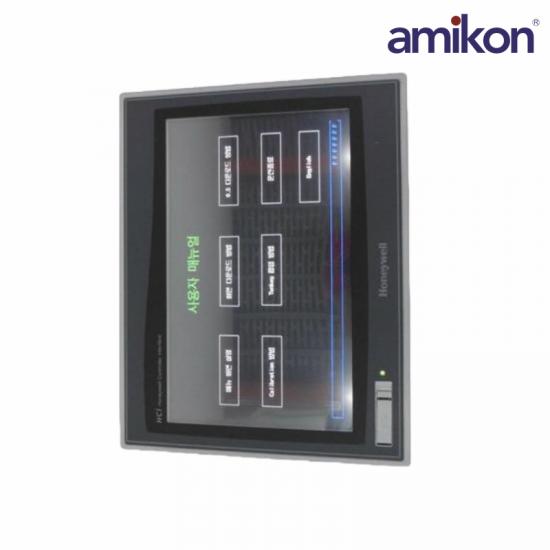

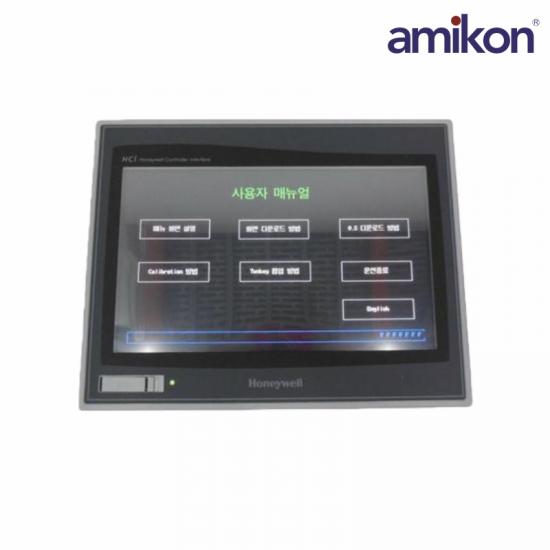

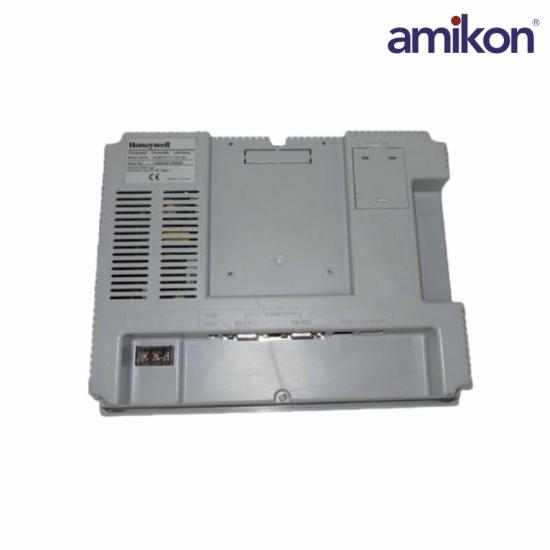

The Honeywell HCiRX08-TE-FD-NC Controller Interface is an advanced 8-inch operator interface designed for industrial and process control applications. It features a bright, high-resolution TFT LCD touchscreen for clear visualization of process data and intuitive operator interaction. Built with a 32-bit RISC processor and large flash memory, the HCiRX08-TE-FD-NC offers fast data handling, smooth graphic rendering, and reliable communication with PLCs and other controllers. Its rugged IP65F-rated front panel ensures protection against dust, moisture, and vibration, making it ideal for harsh industrial environments that demand long-term reliability and stable operation.
